Description
Overview:

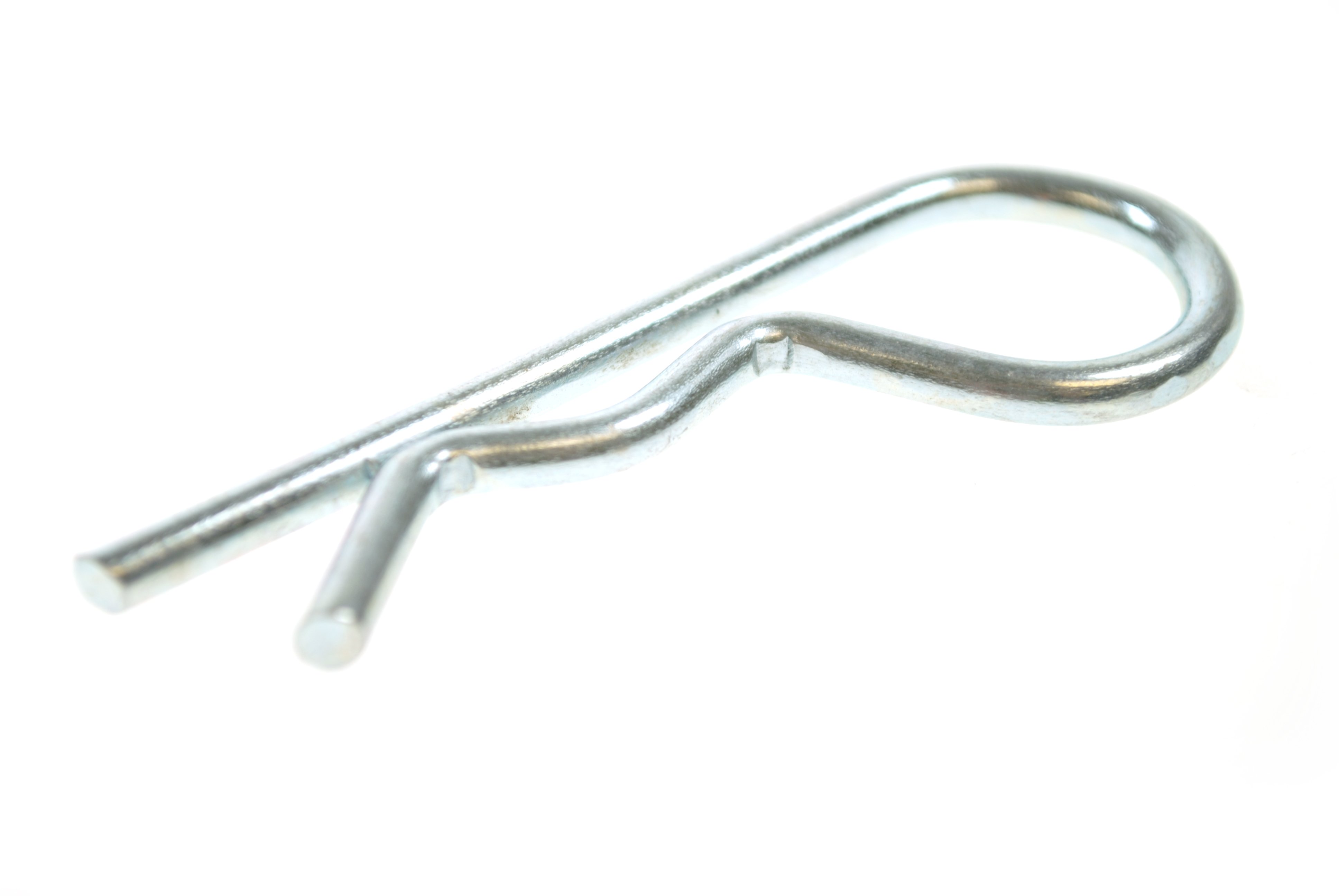

These zinc-plated R-clips are general-purpose retaining clips for securing cross-drilled pins, clevis pins and shafts on trailers, plant and towing equipment. Supplied as a matched set for workshop and site use, this pack includes 10 clips, each made from 4 mm wire with a nominal overall length of 76 mm. The bright zinc plating helps resist rust from road spray and outdoor storage, while the spring profile provides positive retention and quick, tool-free removal for routine adjustments and servicing. Typical uses include ramp and tailboard pins, body fittings, jockey wheel clamp pins and other quick-release locations on trailers, caravans and plant carriers. The clip passes through the pin's cross-hole to prevent unintended withdrawal during service. Listed under our internal code (MPN 763 035) for easy reordering and stock control.
Key Features:
- Zinc-plated steel for corrosion resistance in roadside and yard conditions
- Wire diameter: Ø 4 mm (approx. 0.16 in / 5/32 in)
- Overall length (A): 76 mm (approx. 3.0 in)
- Loop dimension (D): 28 mm (approx. 1.10 in)
- B dimension: 12-22 mm (approx. 0.47-0.87 in) to suit a range of pin/shaft sizes
- Pack quantity: 10 identical clips for fleet or workshop stocking
- Reusable spring design for quick fitment and removal
- Common R-clip profile for compatibility with standard trailer and plant fittings
Typical Applications:
Used to retain hitch or clevis pins, ramp and tailboard pins, drop-side catches, ladder rack pegs, jockey wheel clamp pins and similar cross-drilled shafts on trailers, plant transporters, caravans and utility vehicles. Suitable wherever a 4 mm R-clip is specified for body fittings and general fastening on towing and transport equipment.
Also known as:
R-pin
Hairpin cotter
Hitch pin clip
Spring cotter clip
Hair clip pin
Maypole part number MP83404
Product Specifications
| L&S Part No. | 763 035 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
