Description
Overview:

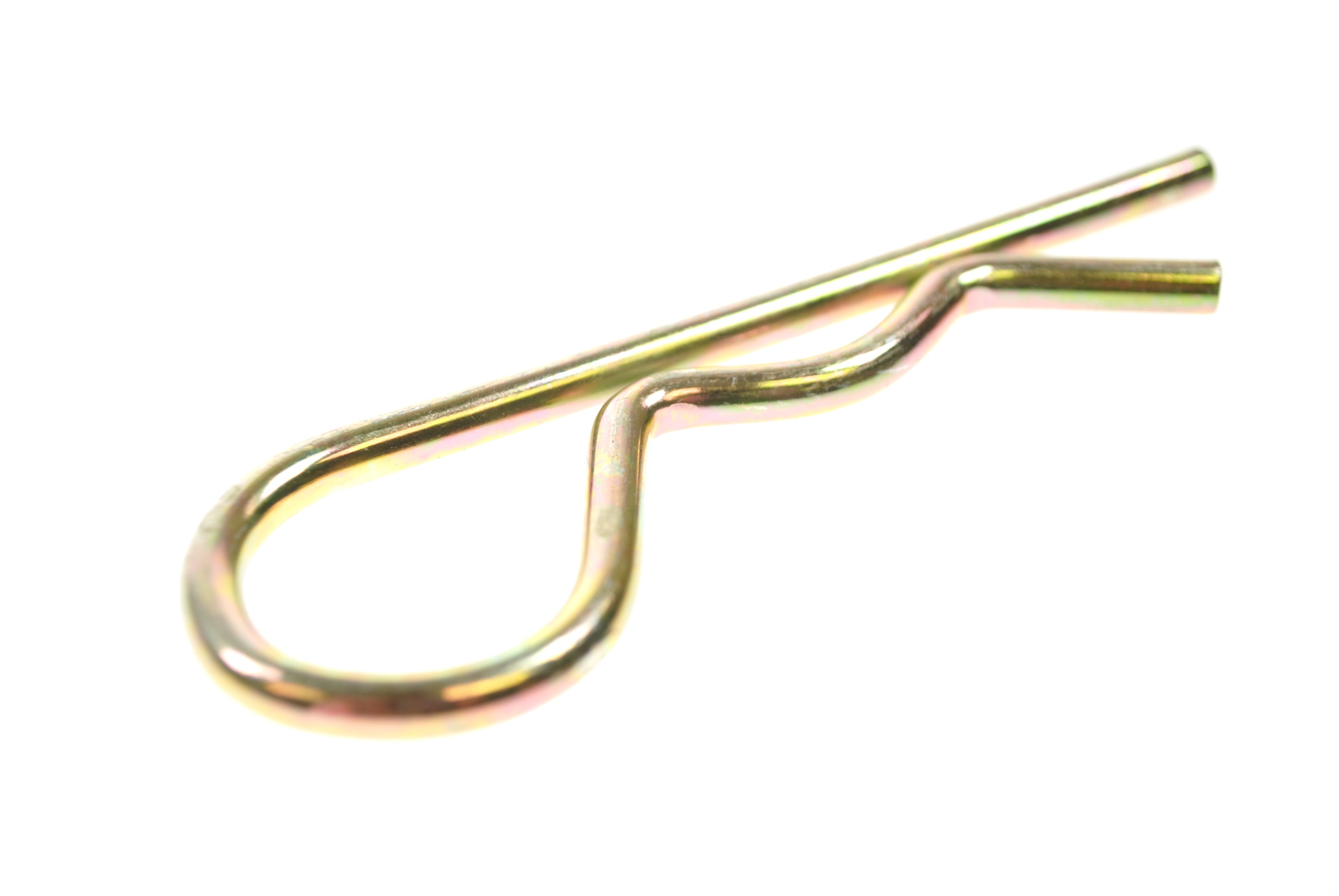

R-Clips 5mm Wire, 100mm Length, Zinc Plated, Pack of 10 (MPN 763 106) are general-purpose retaining clips for securing clevis pins, hitch pins and other removable fasteners used on trailers, plant and towing equipment. Each clip is zinc plated to provide surface protection in outdoor environments and to help resist corrosion. The 5mm (0.20 in) wire diameter and 100mm (3.94 in) overall length suit heavier-duty retention where a larger R-clip is required. The R-shaped profile allows quick fitting and removal without tools, while the return leg provides positive engagement on the pin. Drawing dimensions for this pattern are A = 100mm (3.94 in), B = 16-27mm (0.63-1.06 in), Ø = 5mm (0.20 in) and D = 33mm (1.30 in), allowing you to check suitability against your pin and component geometry. Supplied as a bulk trade pack of 10 clips in a poly bag for workshop or fleet use.
Key Features:
- Zinc plated finish for corrosion resistance in general outdoor use
- Wire diameter Ø: 5mm (0.20 in)
- Overall length A: 100mm (3.94 in)
- Engagement range B: 16-27mm (0.63-1.06 in)
- Loop height D: 33mm (1.30 in)
- R-clip profile for tool-free installation and removal
- Suited to retaining clevis, hitch and body pins of appropriate size
- Bulk packed in poly bag, pack of 10
Typical Applications:
Used to retain removable pins and shafts on trailers, plant carriers and towing setups. Typical positions include coupling and hitch pins, tailgate and ramp pivots, drop-leg and prop pins, jockey wheel clamp pins, body fittings and general fixtures where a quick-release clip is required. Suitable for workshop, fleet and on-site maintenance where consistent, repeatable retention is needed and clips may be changed frequently.
Also known as:
R-Pins
Hairpin Cotter
Hitch Pin Clip
Retaining Clip
R-Clip 5mm
Maypole part number MP83405
Product Specifications
| L&S Part No. | 763 106 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
