Description
Overview:

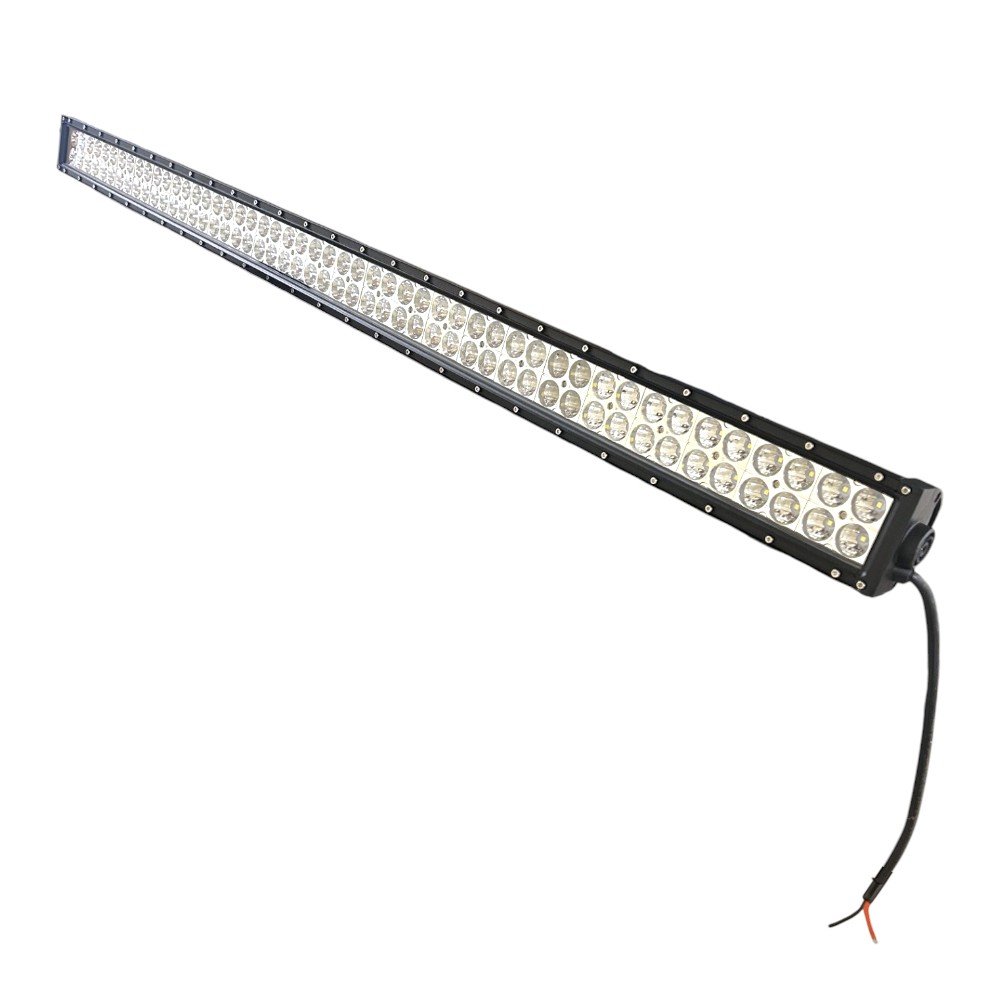

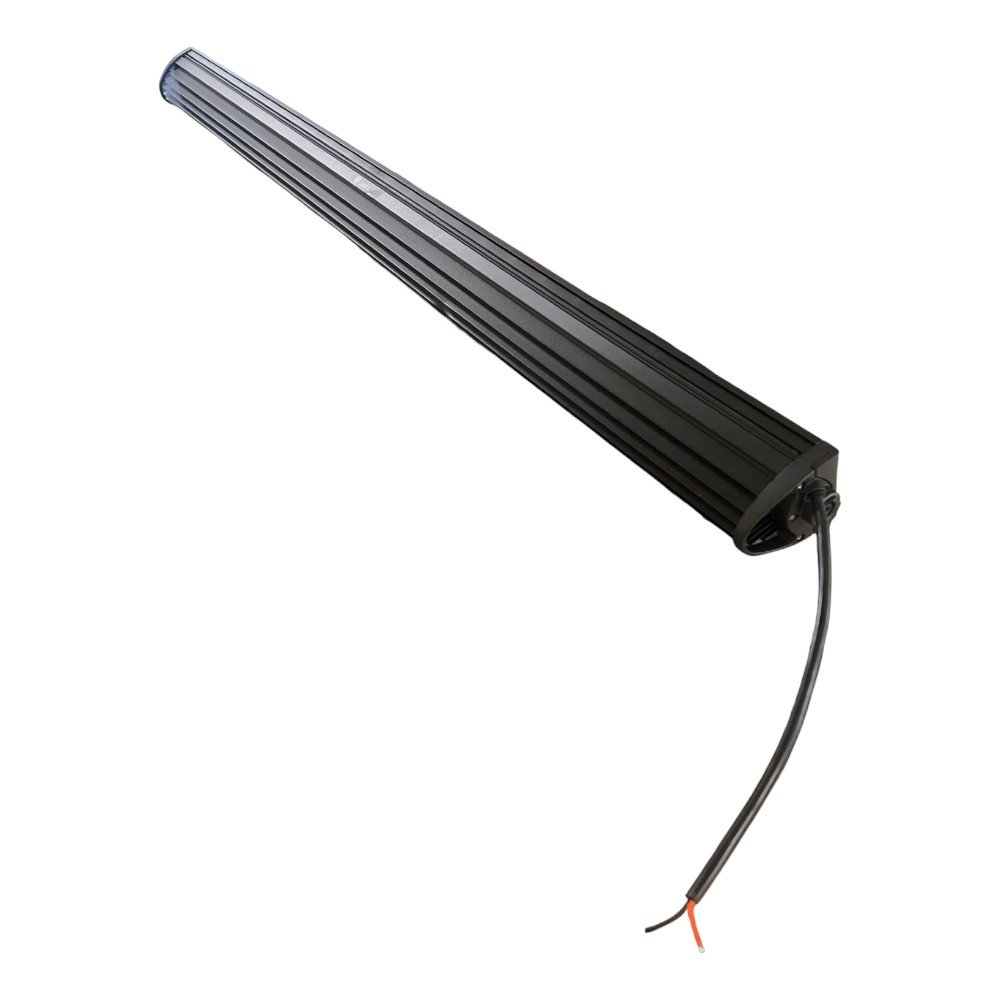

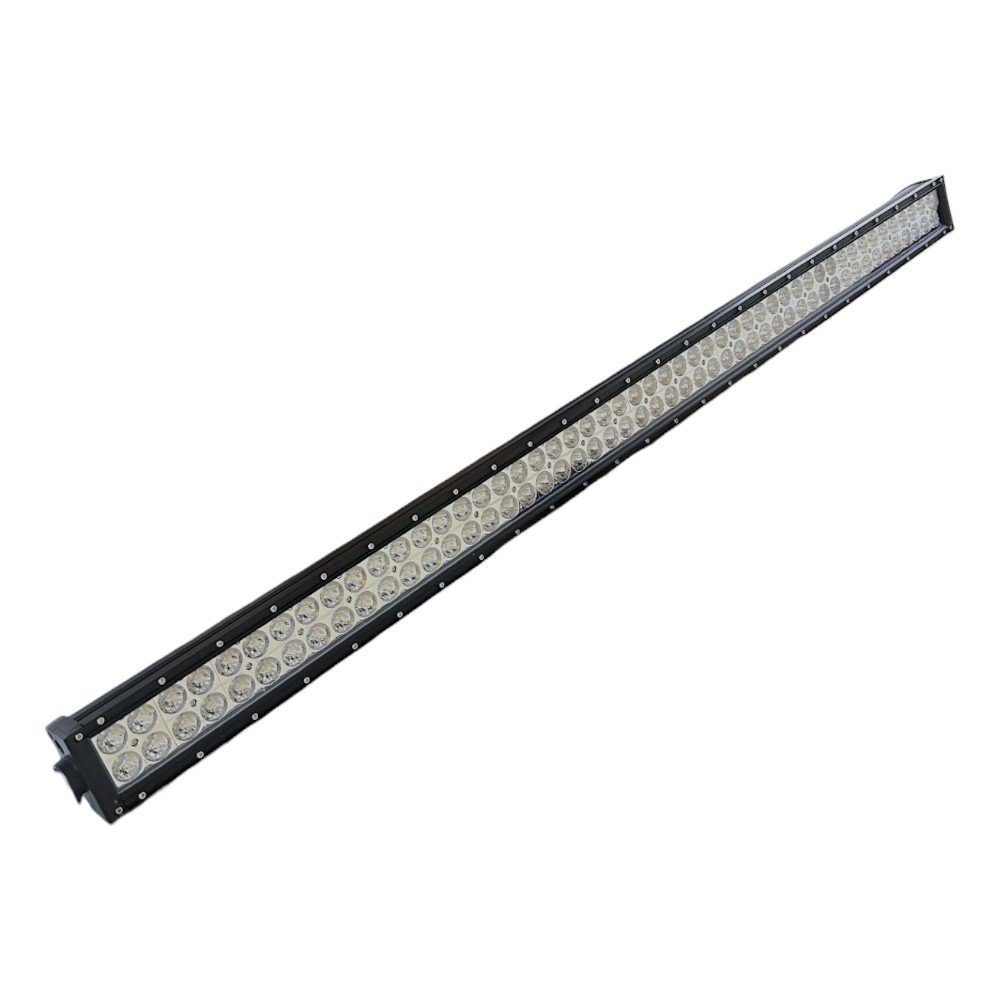

This 100 x 3W LED Flood/Spot Beam Work Light Bar is designed for 12V and 24V DC vehicle and machinery lighting systems. It provides forward area illumination for plant, agricultural machinery, service vehicles, HGVs, off-road and utility equipment where wide and long-range visibility is required. The unit combines flood and spot beams to balance spread and distance. It uses a die-cast aluminium housing with a polycarbonate lens for impact and weather resistance. Output is rated at 20,000 lumens with a 6000K colour temperature. Protected to IP69K for high-pressure washdown and dust ingress. Approximate service life is 30,000 hours. Dimensions: L 111.2 x W 1380 x D 86.5 mm (4.38 x 54.33 x 3.41 in). Sold singly. Genuine OEM replacement part by Durite, OEM No. 0-420-94.
Key Features:
- Dual-voltage operation: 12V and 24V DC systems
- LED array: 100 diodes at 3W each (300W total)
- Light output: 20,000 lumens nominal
- Colour temperature: 6000K (daylight white)
- Beam type: combined flood and spot distribution
- Ingress protection: IP69K rated
- Housing: die-cast aluminium for heat dissipation
- Lens: impact-resistant polycarbonate
- Approximate lifespan: 30,000 operating hours
- Dimensions: L 111.2 x W 1380 x D 86.5 mm
- Imperial size: 4.38 x 54.33 x 3.41 inches (approx.)
- EMC approved for electromagnetic compatibility
- Genuine Durite OEM part, OEM No. 0-420-94
- Supplied: sold singly (1 piece)
- Suitable for exterior mounting on work vehicles
Typical Applications:
Used on construction plant, agricultural machinery, recovery and service vehicles, HGVs, utility trucks, 4x4s, and site equipment to provide reliable forward and area illumination in low-light conditions. Suitable for roof racks, grille or bumper mounts, gantries, and machinery frames where a high-output, IP69K-rated light bar is required for worksite visibility and operator safety.
Also known as:
LED work light bar, combo beam light bar, flood/spot LED bar, 12/24V LED light bar, IP69K LED bar, vehicle work lamp bar, Durite LED bar, auxiliary driving light bar.
Alternate Part Numbers:
0-420-94, 042094
Product Specifications
| L&S Part No. | 125 2274 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Durite |
| OEM No. | 0-420-94 |
| Unit of Sale | Eachch |
