Description
Overview:

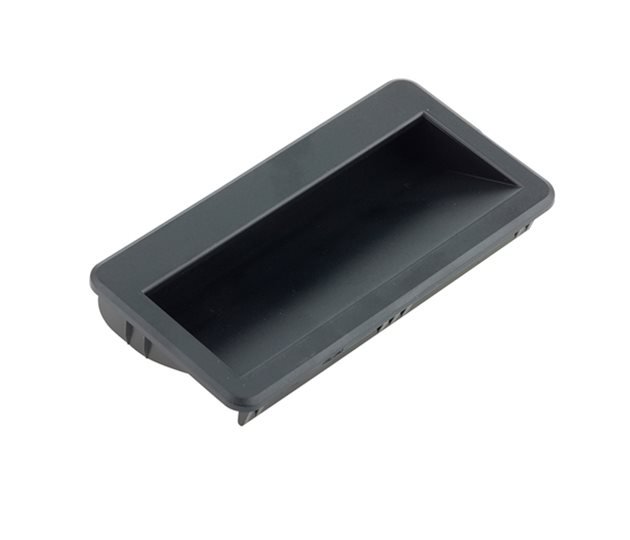

The Recessed Snap-Fit Panel Handle, 110mm, Black ABS, 0.75-1.5mm Grip (MPN 800 1037) is a flush pull designed for thin vehicle and equipment body panels. Moulded in durable black ABS plastic, it provides a low-profile handhold where a neat, snag-free finish is required. The unit snaps into a rectangular cut-out and is suited to lightweight skins and liners within the stated panel grip range. Overall length is 110mm (4.33 in), with a width of 56.5mm (2.22 in) and a depth of 18mm (0.71 in). The recommended panel cut-out is 103 x 49mm (4.06 x 1.93 in). From Pinet, this handle is commonly specified on commercial vehicle bodies, trailers and buses, as well as generator enclosures, horseboxes, cabs, sliding doors and roller shutters where frequent manual access is needed without external protrusions.
Key Features:
- Recessed flush pull handle for vehicle and equipment panels
- Snap-fit installation into a prepared rectangular cut-out
- Material: ABS plastic with black finish
- Overall length: 110mm (4.33 in)
- Overall width: 56.5mm (2.22 in)
- Overall depth/thickness: 18mm (0.71 in)
- Panel grip (panel thickness): 0.75-1.5mm (0.03-0.06 in)
- Panel cut-out size: 103 x 49mm (4.06 x 1.93 in)
- Brand: Pinet
- Designed for flush, low-profile operation on access doors and shutters
Typical Applications:
Used on trucks, trailers and buses for interior and exterior access panels. Also fitted to generator sets and service enclosures, horseboxes and cabs. Common on sliding doors, roller shutters and similar bodywork where a recessed pull is preferred to avoid snagging and to keep a clean panel face.
Also known as:
Flush Pull Handle, Recessed Pull, Panel Pull, Recessed Grab Handle, Snap-In Handle, Flush Panel Handle
Product Specifications
| L&S Part No. | 800 1037 |
|---|---|
| Unit of Sale | 1 |
