Description
Overview:

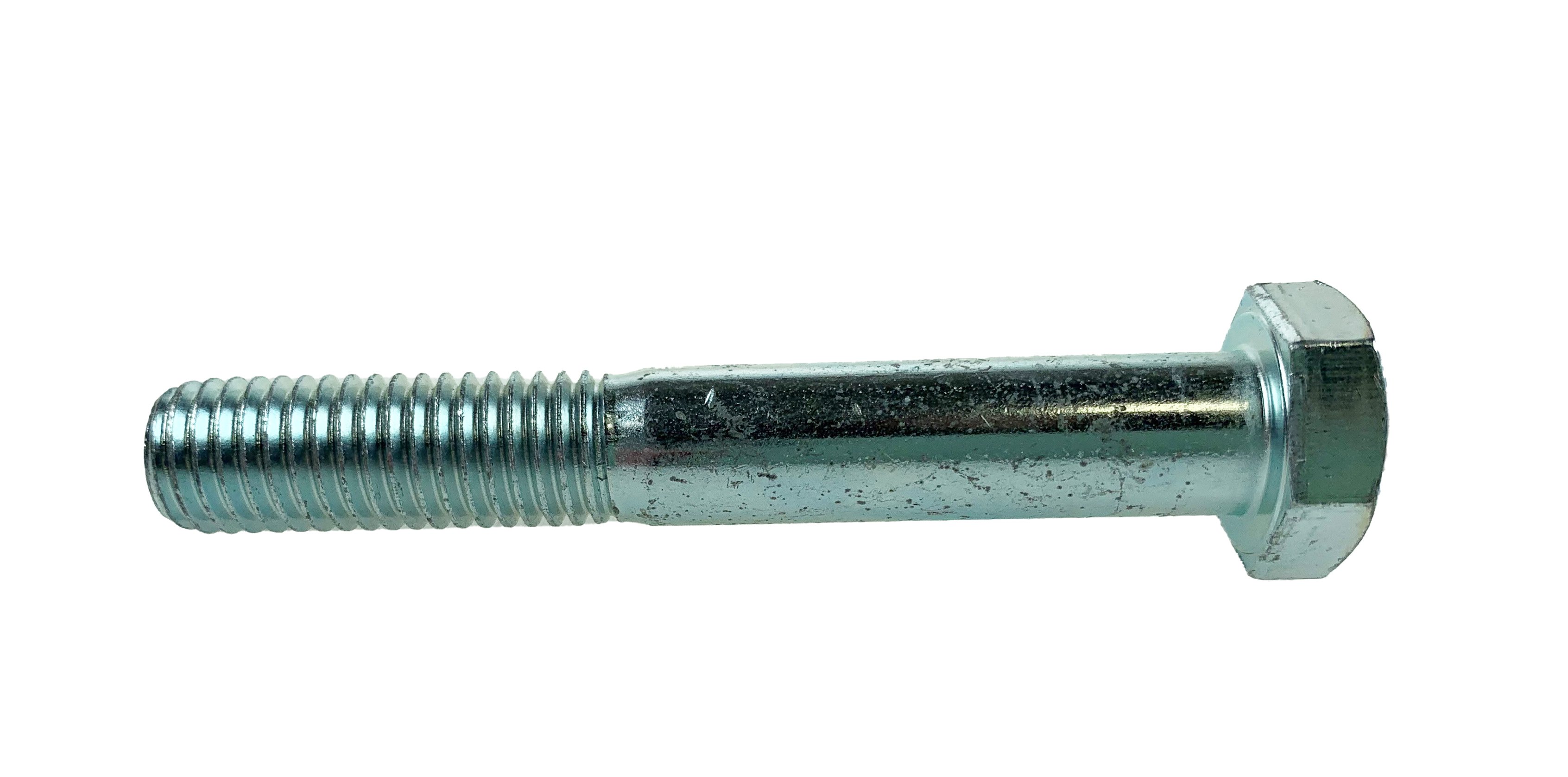

Leaf Spring Bolt M12, 100mm Thread Length, Grade 10.9 (MPN 763 103) is a high-tensile metric fastener for trailer suspension work. It is intended for securing leaf spring eyes to hangers or shackle plates and for other M12 applications where a long threaded section is required. The bolt uses a standard M12 thread (12 mm diameter, approximately 0.47 in) with 100 mm (3.94 in) of thread length to suit common bush and bracket stacks on trailer running gear. Manufactured to property class 10.9, it provides the strength needed for suspension and drawbar-related fixings. This size is commonly specified on Ifor Williams trailers with single and double leaf springs and can also be used on some trailer coupling heads where an M12 x 100 thread is called up. It is a practical choice for workshops handling routine repair and overhaul of plant, livestock, tipper and general duty trailers.
Key Features:
- M12 metric thread diameter: 12 mm (approximately 0.47 in)
- 100 mm (3.94 in) thread length for extended engagement
- High-tensile steel, property class 10.9, for demanding suspension duties
- Intended for leaf spring mountings, hangers and shackle plate fixings
- Suitable for many Ifor Williams single and double leaf spring setups
- Also used on some trailer coupling head applications requiring M12 x 100
- Length stated refers to the threaded section to aid correct selection
Typical Applications:
Used at the spring eye pivot and shackle positions on trailer leaf spring suspension, including repairs and replacements on Ifor Williams trailers with single and double leaf springs. Also applicable to certain trailer coupling head installations that specify an M12 fastener with 100 mm of thread. Suitable for general purpose, plant, tipper and livestock trailers where this size and grade are required.
Also known as:
Shackle bolt
Spring eye bolt
Trailer suspension bolt M12 x 100
Maypole part number MP10310B
Product Specifications
| L&S Part No. | 763 103 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
