Description
Overview:

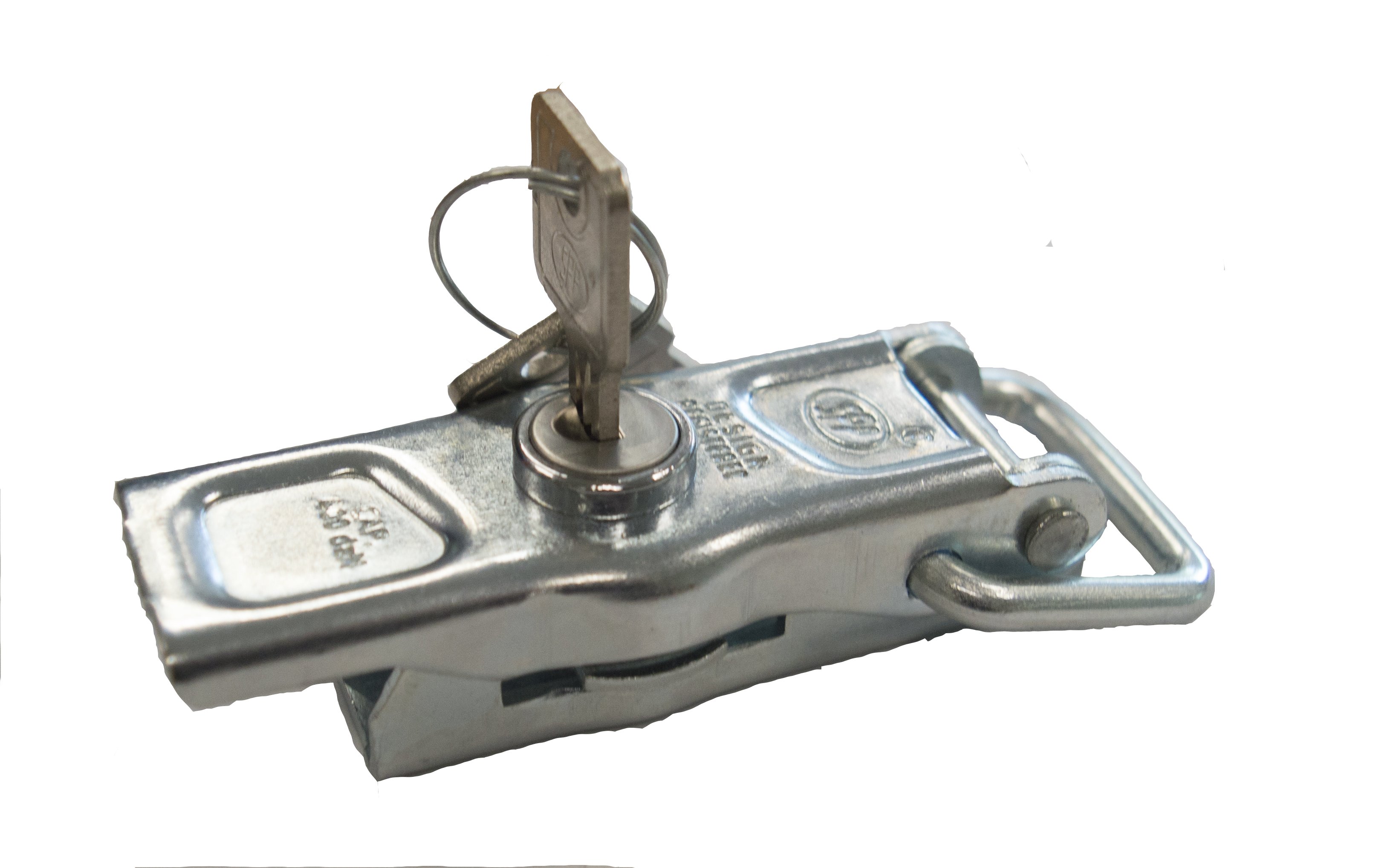

This lockable over-centre catch 101.5 mm x 31 mm (MPN 763 508) is a compact, heavy-duty latch for securing panels, lids and doors on trailers and commercial bodywork. The over-centre action provides a firm clamping force to hold mating parts closed under vibration and road shock, while the integrated lock adds a level of security against unauthorised opening. Finished in zinc plate for corrosion resistance in outdoor use, it is suited to plant, transport and general trailer applications. The catch is rated to 700 kg (approximately 1,540 lb) and features three fixing holes for straightforward through-bolting. Key drawing dimensions are: overall length (A) 101.5 mm (4.00"), width (B) 31 mm (1.22"), and reach/throw (D) 70 mm (2.76"). Supplied with two keys.
Key Features:
- Lockable over-centre latch with integrated lock, supplied with 2 keys
- Zinc-plated finish for corrosion resistance
- Rated capacity: 700 kg (approx. 1,540 lb)
- Overall length (A): 101.5 mm (4.00")
- Width (B): 31 mm (1.22")
- Reach/throw (D): 70 mm (2.76")
- Three fixing holes: 5.5 mm diameter (0.22") each
- Compact footprint for use on smaller doors, lids and panels
- Suited to through-bolting to bodywork or brackets
Typical Applications:
Used on trailer drop-sides, tailgates, ramps, lids and storage boxes, as well as service doors and covers on plant and site equipment. Suitable for general body fittings on trailers, caravans and light commercial vehicles where a positive over-centre clamping action is required with the option to lock the catch.
Also known as:
Lockable Over Centre Latch
Locking Toggle Latch
Draw Latch with Key
Over Centre Fastener
Maypole part number MP81304B
Product Specifications
| L&S Part No. | 763 508 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
