Description
Overview:

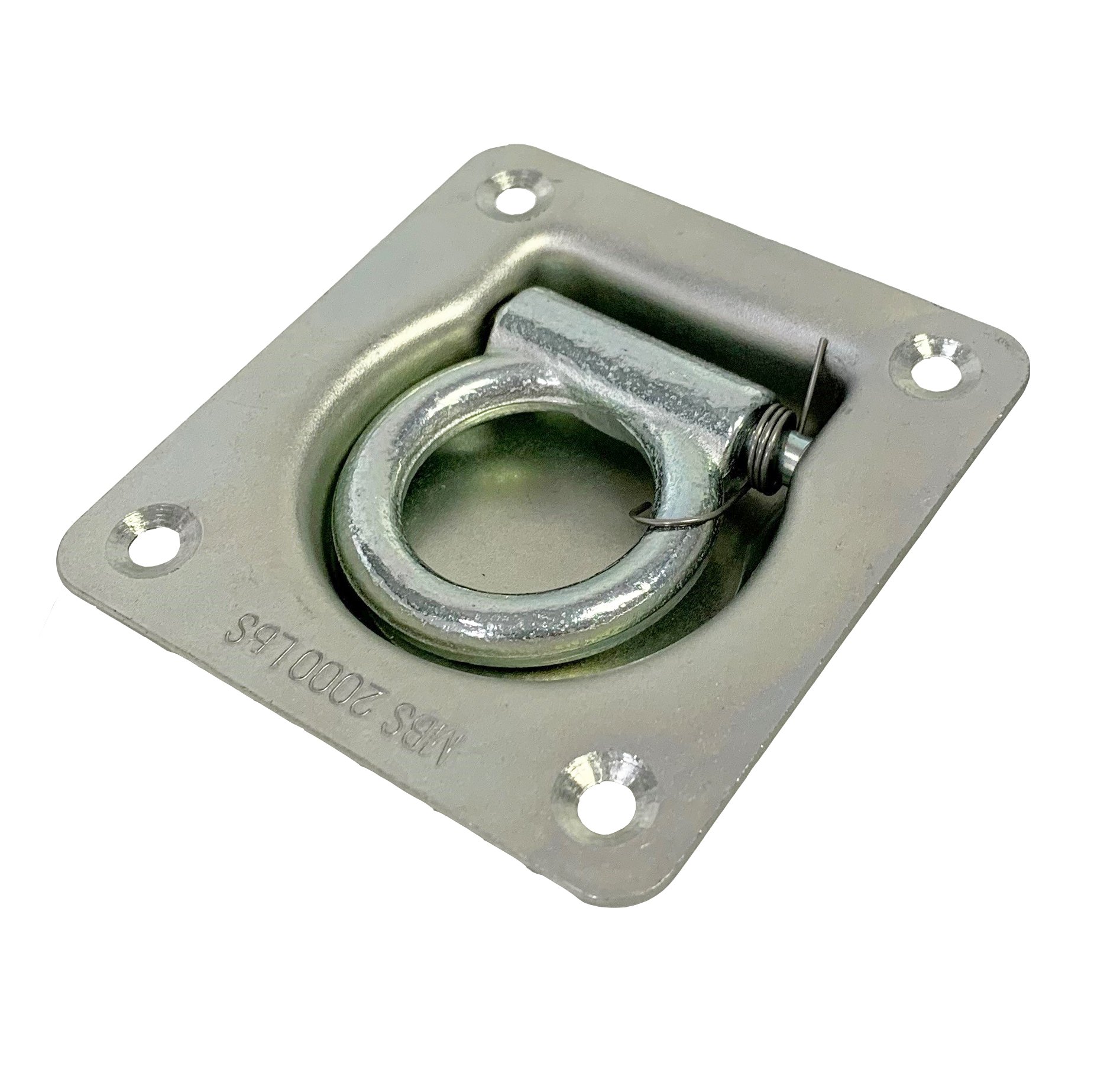

This recessed cargo lashing ring (MPN 763 155) is a spring-loaded, single tie-down point designed for secure load restraint in trailer, van and plant transport floor or deck installations. Manufactured from steel with a zinc-plated finish, it offers good resistance to corrosion and a low-profile fit when not in use. The pressed plate sits flush to minimise snagging, while the ring lifts easily for attaching straps, webbing or hooks. The mounting plate measures 102 x 96 mm (4.02 x 3.78 in) with four fixing holes to suit 6.5 mm (0.26 in) fasteners. The unit has an overall recess depth of 23 mm (0.91 in) and is rated to a 500 kg (approx. 1,102 lb) load capacity. Suitable for general-purpose cargo restraint on light commercial vehicles, trailers and plant carriers where a compact recessed anchor is required.
Key Features:
- Spring-loaded single ring sits flush when not in use
- Steel construction with zinc-plated finish for corrosion resistance
- Recessed mounting plate 102 x 96 mm (4.02 x 3.78 in)
- Overall recess depth 23 mm (0.91 in)
- Four fixing holes: 4 x 6.5 mm diameter (0.26 in) to suit typical M6 fixings
- Rated load capacity 500 kg (approx. 1,102 lb)
- Drawing dimensions: A = 102 mm (4.02 in), B = 96 mm (3.78 in), C = 80 mm (3.15 in), D = 73 mm (2.87 in), E = 37 mm (1.46 in)
- Designed for floor/deck recess installation to provide a low-profile anchor point
Typical Applications:
Used as a floor-mounted tie-down point in box trailers, flatbeds, plant and machinery transporters, recovery vehicles, vans and pickup load beds. Suitable for securing pallets, equipment, machinery and general cargo with webbing straps, ropes or hooks where a recessed, snag-free lashing point is preferred.
Also known as:
Recessed tie-down ring
Recessed D-ring anchor
Cargo lashing point
Floor anchor point
Tie ring
Maypole part number MP81411B
Product Specifications
| L&S Part No. | 763 155 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Steel construction with zinc-plated finish for corrosion resistance - Recessed mounting plate 102 x 96 mm - Rated load capacity 500 kg - Four fixing holes for 6.5 mm fasteners - Overall recess depth 23 mm |
