Description
Overview:

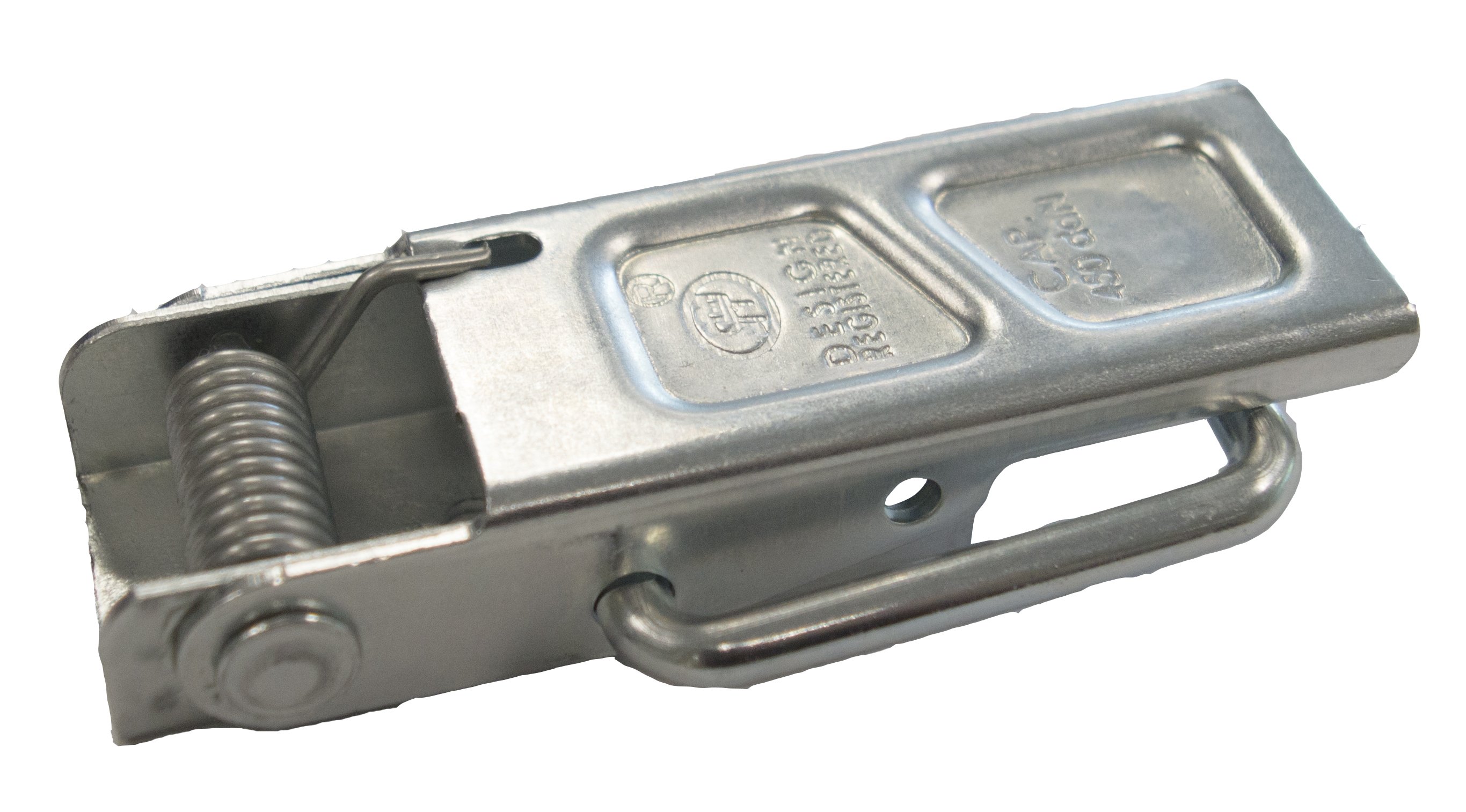

This Overcentre Catch 105.5mm x 36mm, zinc-plated, 455kg capacity (MPN 763 210) is a compact latch used to secure panels, lids and doors on trailers and vehicle bodies. The over-centre action pulls mating parts together to hold them firmly closed, helping prevent vibration and accidental opening in service. A zinc-plated finish provides basic corrosion resistance for use on road trailers and site equipment. The catch measures 105.5mm (4.15") overall length with a 36mm (1.42") body width, and is drilled with two fixing holes for straightforward mounting to steel, aluminium or timber structures. With a rated capacity of 455kg (approx. 1,003lb), it is suitable for light to medium-duty closures across plant transport, service vehicles and general trailer bodywork. Typical uses include securing tailgates, sideboards, tool lockers, ramp doors and compartment hatches where a positive mechanical latch is required.
Key Features:
- Zinc-plated finish for corrosion resistance
- Rated capacity: 455kg (approx. 1,003lb)
- Overall length A: 105.5mm (4.15")
- Body width B: 36mm (1.42")
- Fixing holes: 2 x 5mm diameter (0.20")
- Dimension D: 60mm (2.36")
- Over-centre latch action for a positive, secure clamp
- Suited to general trailer, plant and vehicle body closures
Typical Applications:
Used on trailers, plant transporters, tippers, flatbeds, box trailers, service vans and agricultural equipment to secure doors, lids, tailgates, lockers and ramps. Common on body fittings where a compact over-centre catch is needed to hold panels closed under vibration and road use.
Also known as:
Over-centre latch
Toggle latch
Draw latch
Over centre fastener
Maypole part number MP81303B
Product Specifications
| L&S Part No. | 763 210 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
