Description
Overview:

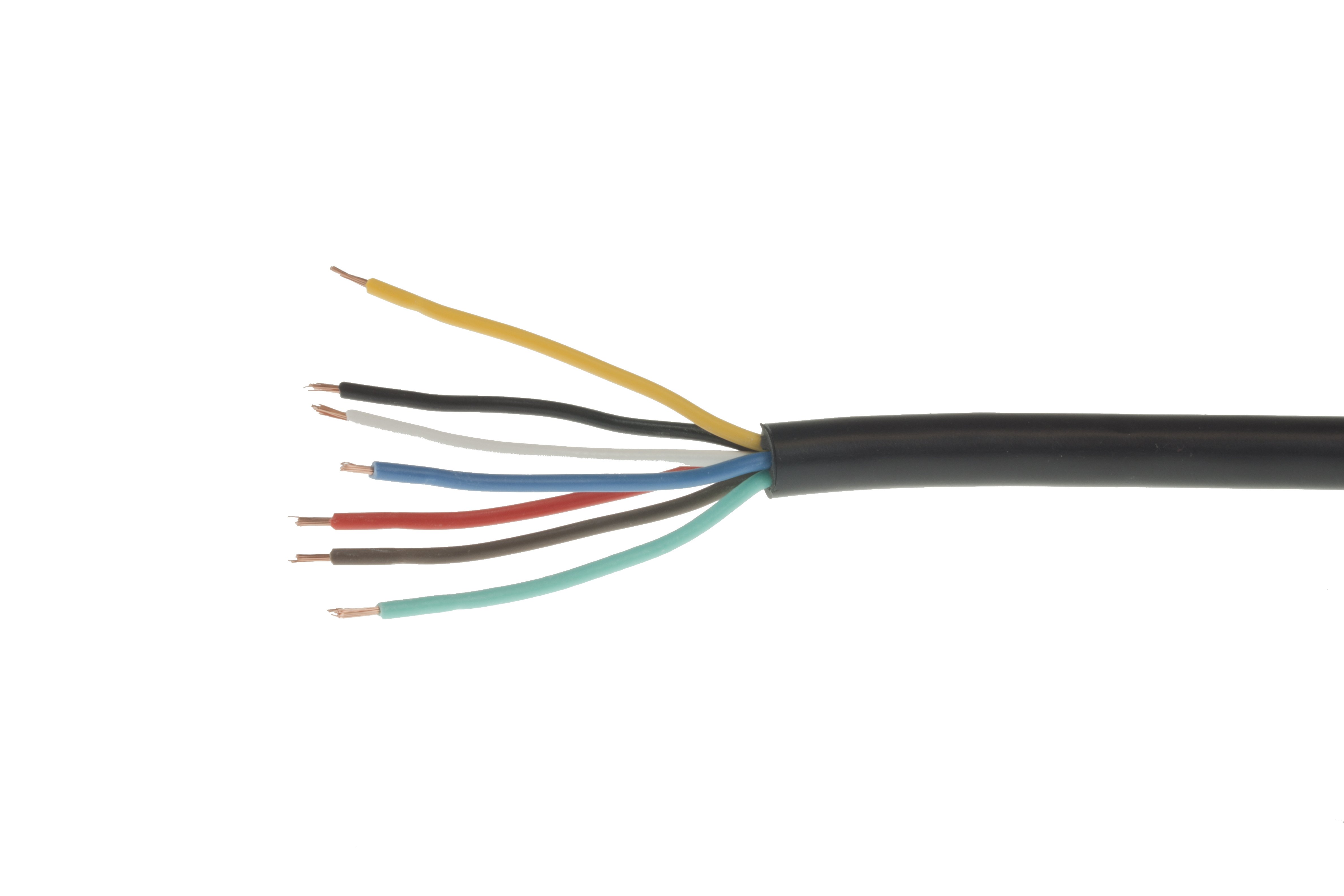

This black 7-core trailer cable 7 x 0.50 mm2, 10 m roll (MPN 763 575) is a compact multi-core cable for 12N trailer and caravan lighting circuits. It is supplied on a 10 metre reel (approx. 33 ft) and uses colour-identified cores for straightforward connection: yellow, blue, green, brown, red, black and white. The cable features a durable PVC outer sheath and PVC insulation to help resist abrasion and cut-through during installation and service. Typical uses include wiring runs to rear lamps, indicators, brake lights, fog and number plate lamps on small trailers, light plant and equipment trailers, and caravans using 7-pin (12N) systems. Suitable for automotive and allied industries where a lightweight 0.50 mm2 core size is appropriate and where voltage drop and circuit length have been considered during selection.
Key Features:
- 7-core automotive/trailer cable for 12N 7-pin lighting circuits
- Core size: 7 × 0.50 mm2 for light-duty applications
- Core colours: yellow, blue, green, brown, red, black, white for standard 12N identification
- Outer sheath: black PVC
- PVC insulation with good resistance to abrasion and cut-through
- Length: 10 m reel (approx. 33 ft)
- Suitable for trailer, caravan and general automotive wiring
- Selection note: current capacity and voltage drop depend on total circuit length and operating conditions
- Supplier guidance based on a 5 m return circuit with less than 1.0 V drop; lower drops require larger c.s.a.
- For detailed voltage drop calculations refer to BS 7671:2018 and BS 6862 Part 1 (reference only)
Typical Applications:
Used to wire 12N 7-pin lighting on small trailers, caravans, boat trailers, and light plant/transport trailers. Commonly run between junction boxes, trailer chassis looms and the 7-pin 12N plug for tail, indicator, stop, fog and number plate lamps. Suitable where a compact, multi-core PVC-insulated cable is required for protected routing on towing set-ups and general automotive harness work.
Also known as:
7-core trailer cable 0.50 mm2
7-pin lighting cable (12N)
Automotive 7-way cable
Maypole part number MP32410
Product Specifications
| L&S Part No. | 763 575 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
