Description
Overview:

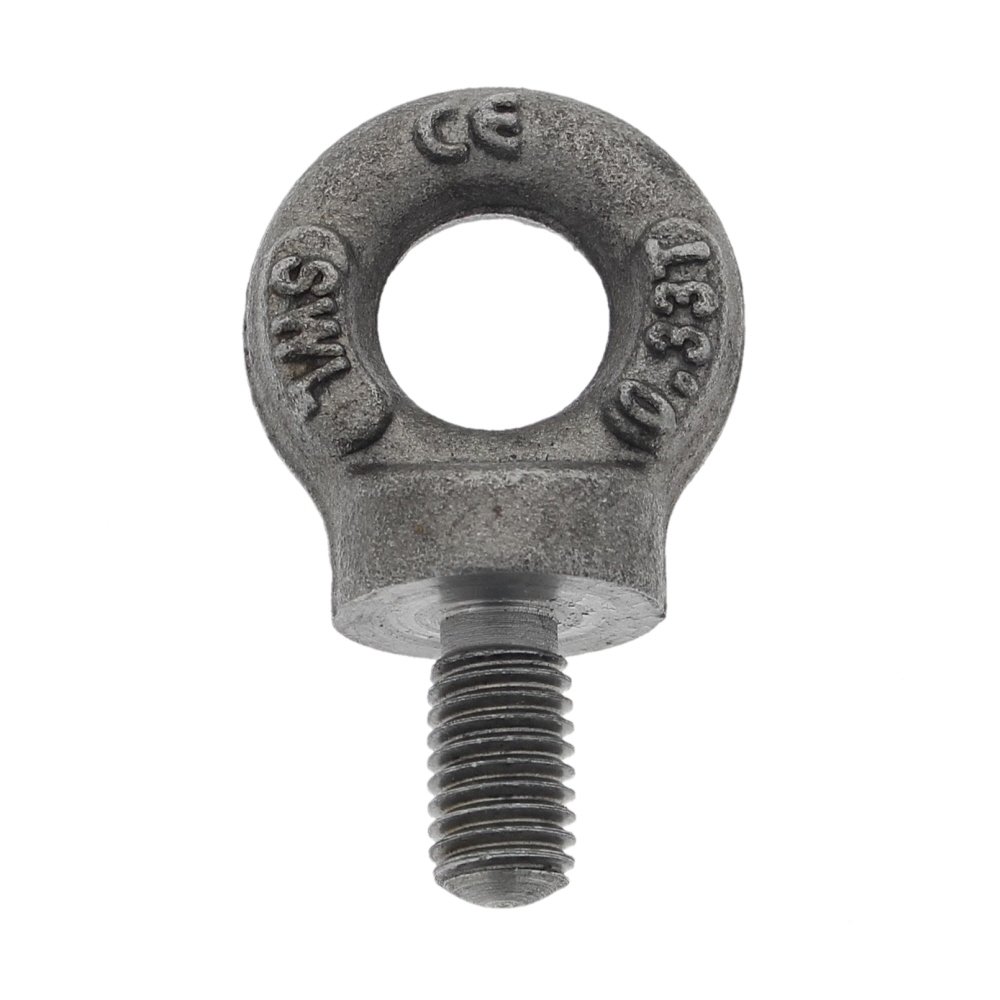

The 10mm Drop Forged Collared Eyebolt is a strong, reliable lifting point for rigging and hoisting tasks on construction sites, in workshops, and across general industry. Made from high tensile steel with a self‐colour finish, it is drop forged for consistent grain flow and strength. The integrated collar provides a solid seating face when tightened against a flat surface. It features a metric M10 thread and is manufactured to BS4278/1 for dependable performance. With a vertical safe working load (W.L.L.) of 0.3 t (approximately 300 kg), it suits chain blocks, wire rope slings, webbing slings, and general lifting assemblies on frames, jigs, engine stands, plant, and fabrications where a secure attachment point is needed.
Key Features:
- Drop forged high tensile steel for strength and durability
- Complies with BS4278/1 for dimensional and performance consistency
- Vertical W.L.L. 0.3 t (approx. 300 kg) for straight lifts
- Collared (shouldered) design seats flush on a flat, rigid surface
- Metric M10 thread for broad compatibility with machinery and fixtures
- Self‐colour finish ready for installation or surface treatment as required
- Compact form factor for tight spaces without sacrificing load rating
- Clear, practical dimensions for easy selection and replacement: Eye diameter 15 mm; Pin length 18 mm; Pin diameter 10 mm; A: 10 mm, B: 22 mm, D: 7 mm, E: 15 mm, F: 9 mm, G: 20 mm, H: 19.5 mm
- Simple to fit with standard spanners; ensure full thread engagement and firm seating
- Suitable for straight lifts; apply appropriate derating and guidance for any angled loading
Typical Applications:
Used as a fixed lifting point on machinery, steel fabrications, engine mounts, gantries, jigs, handling frames, and site equipment. Common in plant maintenance, HVAC installation, workshop handling, warehouse rigging, and temporary lifting of panels, motors, pumps, and tools up to the stated vertical W.L.L. Ideal where a compact M10 attachment is needed for slings, shackles, or hooks.
Also known as:
Shoulder eyebolt, ring bolt, M10 eye bolt, rigging eye bolt, hoisting bolt, lifting screw, collared lifting eye, eye fastener, eyebolt with collar.
Product Specifications
| L&S Part No. | 200 647 |
|---|---|
| Unit of Sale | 1 |
