Description
Overview:

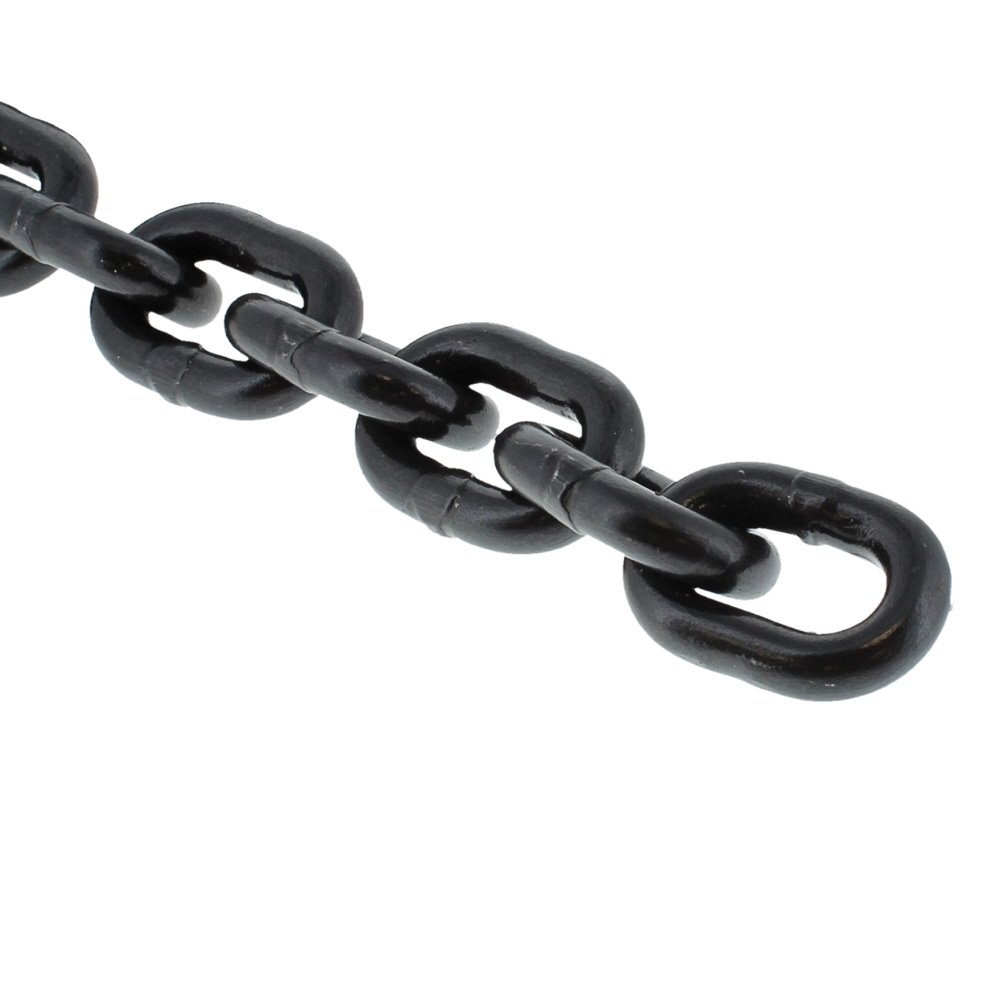

The 10mm Grade 80 Tested Load Binder/Lifting Chain is a heavy-duty short-link chain made from high-strength Grade 80 steel for lifting and load securing tasks. Supplied as a continuous 3‐metre length, it is designed to pair with ratchet load binders, clevis hooks, and other compatible 10mm chain fittings used around plant, agricultural, and industrial machinery. With a Working Load Limit (W.L.L) of 3150kg, it provides dependable performance for moving or securing equipment on site or in the workshop. Each metre weighs 2.2kg (approximate total 6.6kg for 3m) for a solid, durable feel. Link dimensions are 10mm diameter, 30mm length, and 14mm width, giving a compact profile that sits well in binders and hooks. Supplied tested with a certificate for traceable assurance.
Key Features:
- Grade 80 steel construction for high strength and durability in tough site conditions
- Working Load Limit (W.L.L): 3150kg for confident, safe lifting within rated limits
- 10mm chain diameter with short-link geometry (30mm link length, 14mm link width) for secure hook engagement
- Supplied as one continuous 3‐metre length for flexible cutting or assembly by competent persons
- Weight per metre: 2.2kg (approx. 6.6kg total for the supplied length)
- Tested and supplied with a certificate for added compliance assurance
- Compatible with ratchet load binders and 10mm Grade 80 fittings to build custom lifting or lashing setups
- Robust wear resistance for frequent use in construction, plant, and industrial environments
- Smooth, consistent links help reduce snagging and improve handling
- Clear 10mm sizing makes selection of matching components straightforward
Typical Applications:
Securing plant and machinery to trailers and low-loaders, building chain slings with compatible hooks, lifting structural fabrications within the stated W.L.L, positioning heavy components, and general load restraint in workshops, yards, and construction sites. Suitable for excavators, rollers, generators, and similar equipment when used with the correct Grade 80 accessories and by competent operators.
Also known as:
G80 chain, short-link lifting chain, Grade 80 alloy chain, binder chain, load securing chain, chain for ratchet binders, lashing chain, heavy-duty short-link chain, lifting sling chain, plant tie-down chain.
Alternate Part Numbers:
TC/10 - 3, TC103
Product Specifications
| L&S Part No. | 910 003 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Grade 80 steel for high strength and durability - Working Load Limit: 3150kg - 10mm diameter, 30mm length, 14mm width links - Supplied as a continuous 3-metre length - Tested with certificate for compliance assurance |
