Description
Overview:

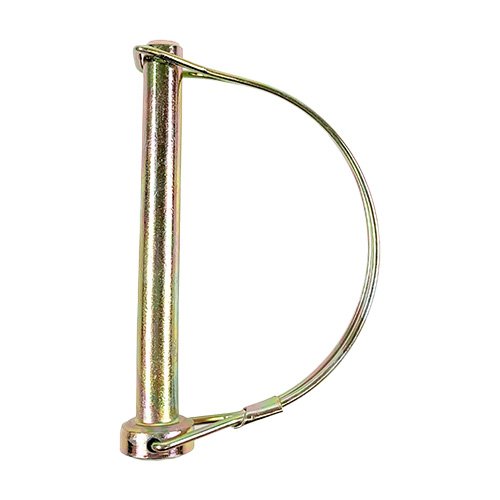

Shaft locking pipe retaining pin for securing brackets, tubes and clevis joints on trailers and plant transport equipment. The 11.8 mm diameter steel pin is fitted with a crimped spring retaining loop for quick, positive retention and easy removal. Manufactured in zinc‐plated steel with gold passivation for corrosion resistance. Supplied to Maypole specification MP42312B.
Specification:
- Pin diameter: 11.8 mm (0.47 in)
- Pin length: 67 mm (2.64 in)
- Usable length: 57 mm (2.24 in)
- Width: 37 mm (1.46 in)
- Retaining loop: crimped spring type
- Material/finish: zinc‐plated steel with gold passivation
- Maypole part number: MP42312B
- Minimum order quantity: 25
Typical Applications:
Used as a quick‐release retaining pin on trailer body fittings, pipe brackets and clevis joints. Common for securing ramps, drop‐sides, landing legs and general fixtures on trailers, plant and transport equipment.
Product Specifications
| L&S Part No. | 763 048 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
