Description
Overview:

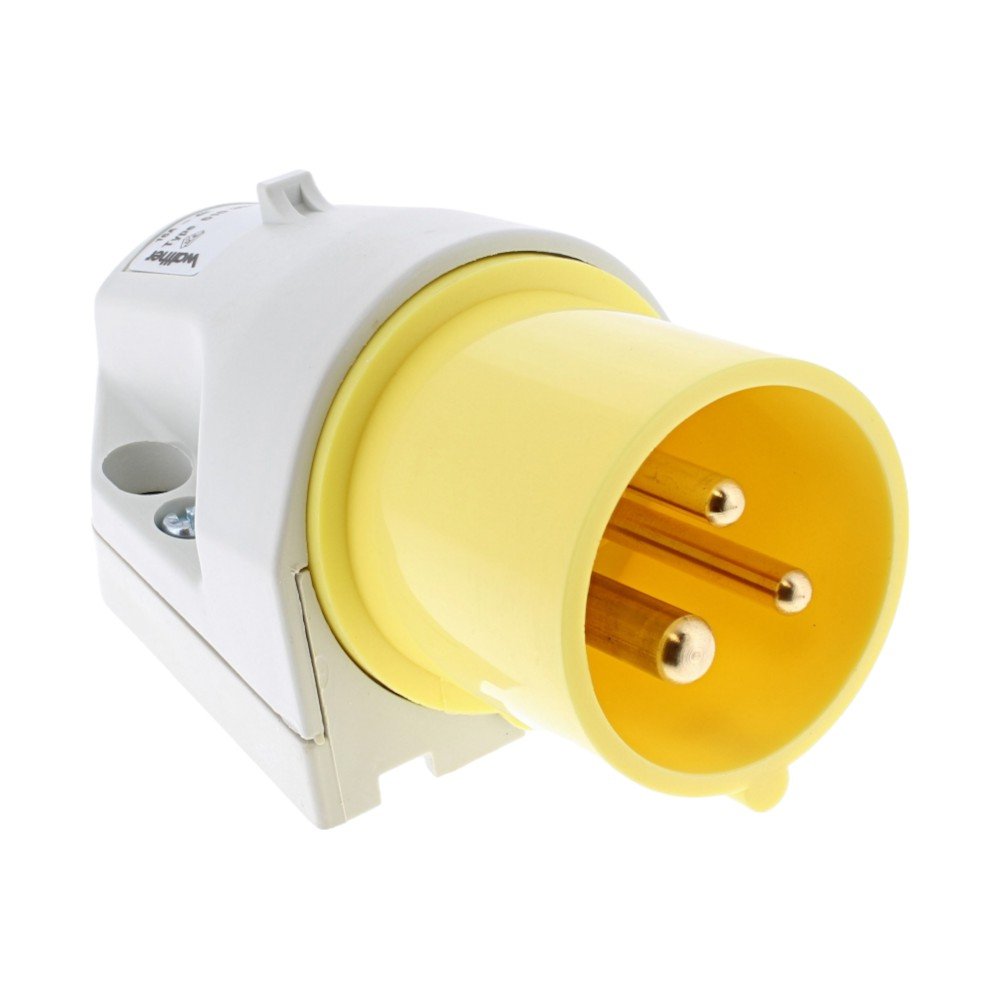

This 110V 3‐pin Wall Appliance Inlet is a durable, surface‐mounted power entry point for outdoor use on construction and garden machinery. The housing is moulded from tough PA6 (polyamide 6) for impact resistance and long service life in site conditions. Designed for external fixing, it mounts securely to a wall, cabinet, or machine frame and provides a single top cable entry for a sealed gland. It supports a 16A, 3‐pin (2P+E) connection with 4h clock keying to help prevent mismatching with other voltages. Rated IP44, it offers splash and dust protection suitable for typical UK site environments. Ideal for equipment such as cement mixers and pressure washers, and for power entry on site transformers or distribution boxes where a reliable 110V inlet is required.
Key Features:
- Robust PA6 (polyamide 6) housing for impact and wear resistance
- External fixing flange for secure mounting on walls, panels, or machinery
- Single top cable entry ready for a suitable cable gland to maintain sealing
- 16A current rating at 110V for common site tools and portable equipment
- 3‐pin (2P+E) configuration for protective earthing and safe operation
- 4h clock keying helps prevent connection to incompatible voltages
- IP44 rating offers protection against splashing water and small particles
- High‐visibility yellow body for quick 110V identification on UK sites
- Compatible with standard 110V 16A site plugs used across the UK and EU
- Straightforward installation and replacement to reduce downtime
Typical Applications:
Used as a power inlet on construction tools and garden machinery that operate outdoors, including cement mixers, pressure washers, wood chippers, compactors, site lighting towers, portable generators, transformer boxes, and workshop cabinets. Suitable for repairs, upgrades, or new builds where a robust, weather‐resistant 110V entry connector is needed.
Also known as:
16A 110V flanged panel inlet, 3‐pin 110V male inlet socket, CEEform 110V inlet, commando‐style 16A inlet, wall‐mounted power entry connector, 110V site inlet, yellow 3‐pole appliance inlet, BS EN 60309 pattern inlet.
Product Specifications
| L&S Part No. | 510 404 |
|---|---|
| Unit of Sale | 1 |
