Description
Overview:

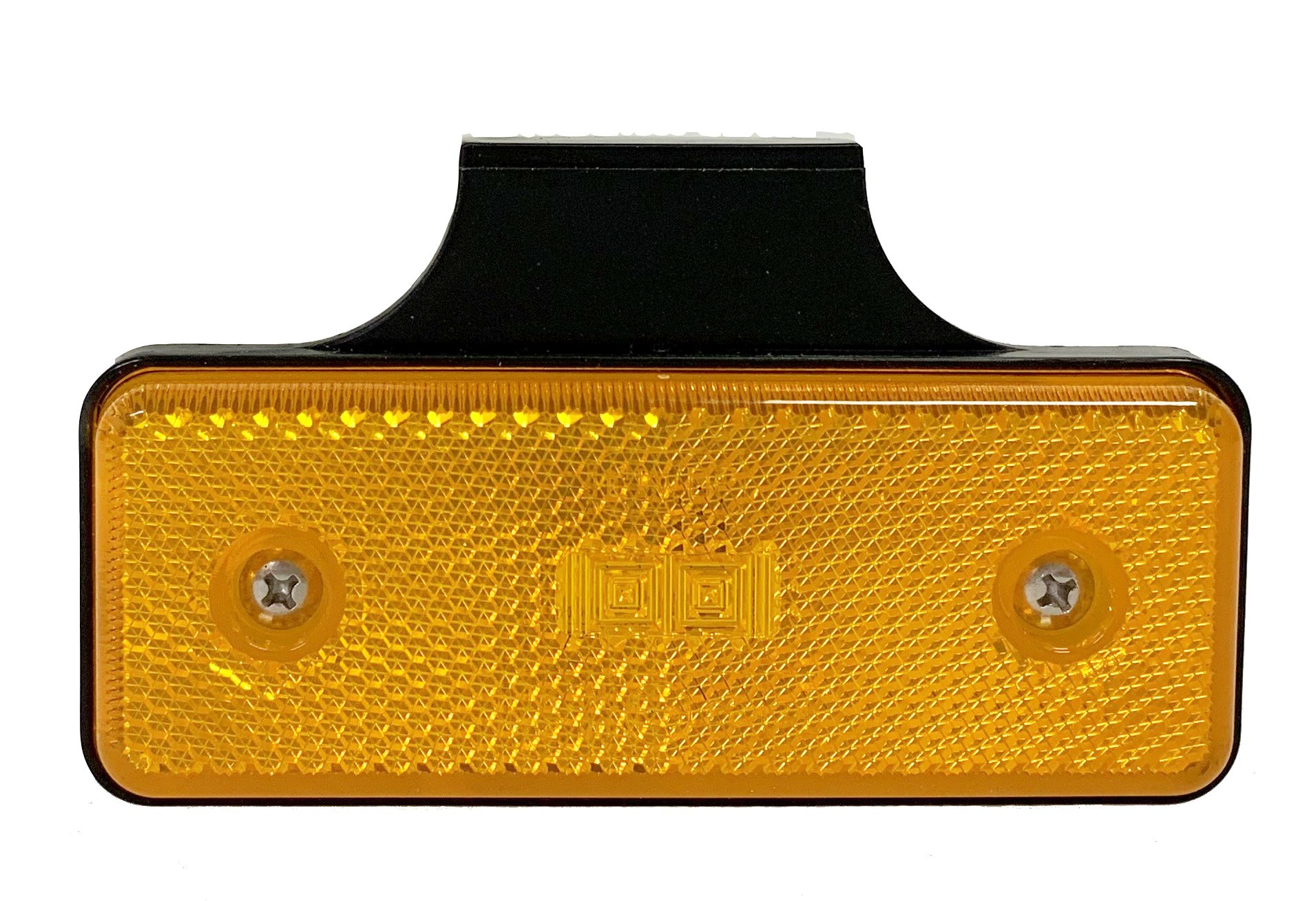

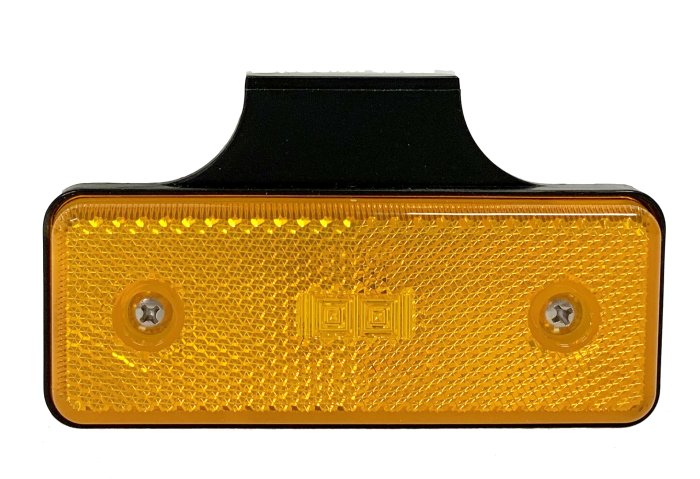

LED Amber Side Marker Lamp 12/24V Slimline With Bracket & Reflector (MPN 763 163) is a compact side marker unit for trailers and commercial vehicles where clear side visibility is required. It uses an LED light source with an amber output and operates on both 12V and 24V electrical systems, making it suitable for mixed fleets. The lamp is supplied with a mounting bracket for straightforward surface installation and includes a pre-wired cable tail for connection into the vehicle loom. The assembly is sealed to IP67 to withstand road spray and weather exposure, and is E-mark approved for road use. An integrated reflector removes the need for a separate side reflector, helping reduce component count on the vehicle side panel while maintaining compliance and visibility.
Key Features:
- Dual-voltage operation: 12V and 24V systems
- Amber LED side marker output for vehicle outline marking
- Slimline, low-profile body for tight mounting spaces
- Supplied with mounting bracket for surface fitting
- Integrated reflector to meet side reflectivity requirements
- Pre-wired cable tail: 25 cm (approx. 9.8 in)
- IP67 sealed unit: dust-tight and water-resistant
- E-mark approved for on-road use
- Designed for side mounting on trailers and commercial bodies
- Hard-wired connection for reliable durability in service
Typical Applications:
Used as a side outline marker on plant trailers, box trailers, flatbeds, car transporters, recovery bodies, rigid and drawbar trucks, agricultural and utility trailers, and caravans. Suitable for both 12V towing electrics and 24V HGV systems, the slim body and included bracket allow mounting on chassis rails, mudguard stays, side raves or body panels where space is limited. The integrated reflector helps maintain conspicuity on the vehicle side without fitting an additional reflector plate.
Also known as:
Amber LED Side Marker Light
Slimline Trailer Marker Lamp
Trailer Outline Marker, Amber
E‐Marked Side Marker Lamp
Maypole part number MP1685B
Product Specifications
| L&S Part No. | 763 163 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
