Description
Overview:

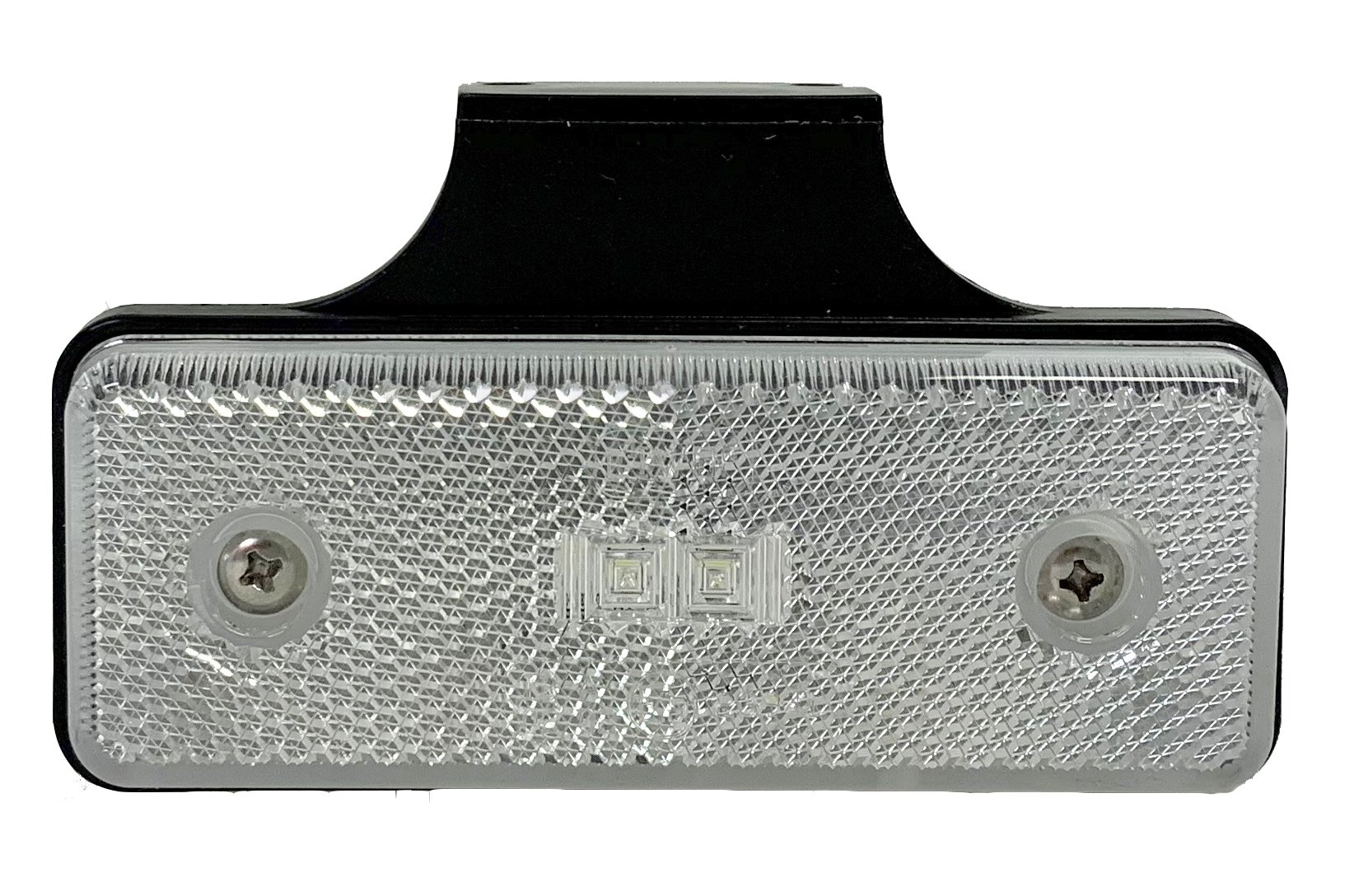

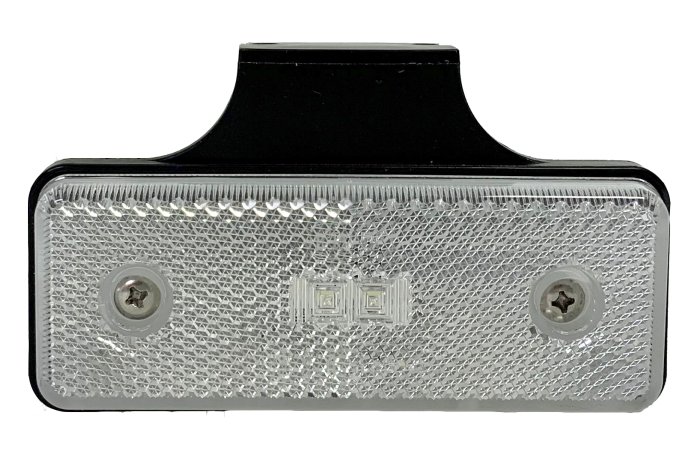

The LED Front Marker Lamp, Clear, 12/24V, Slimline, With Bracket (MPN 763 176) is a compact front position/marker light for trailers and commercial vehicles that need a reliable, low-maintenance white marker at the front of the vehicle or body. It operates on both 12V and 24V systems, making it suitable for mixed fleets. The unit is supplied with a mounting bracket for straightforward surface installation and is pre-wired with a 25 cm (9.8 in) cable for quick connection. A sealed construction to IP67 helps protect the lamp against dust and water ingress, supporting dependable service in road and site conditions. The lamp is E-mark approved for on-road use and uses LED technology for consistent light output and long service life.
Key Features:
- Dual-voltage LED front marker/position lamp for 12V and 24V systems
- Clear lens with white output for front marking
- Slimline design supplied with a mounting bracket for surface mounting
- Pre-wired 25 cm (9.8 in) cable for easy connection
- IP67 ingress protection (dust tight and protected against immersion)
- E-mark approved for road use
- Includes reflector element
- Bracket with mounting holes for secure fixing
- Low-maintenance LED light source
Typical Applications:
Used as a front position/clearance marker on road trailers, plant and equipment trailers, caravan and leisure trailers, horseboxes, beavertails and recovery bodies, light commercial vehicles, and agricultural trailed equipment. Suitable where a compact, slimline white front marker is required and a bracketed surface-mount solution is preferred.
Also known as:
Front Marker Light; White Position Lamp; Front Clearance Lamp; LED White Marker Lamp; Slimline Front Marker; Maypole part number MP1686B
Product Specifications
| L&S Part No. | 763 176 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
