Description
Overview:

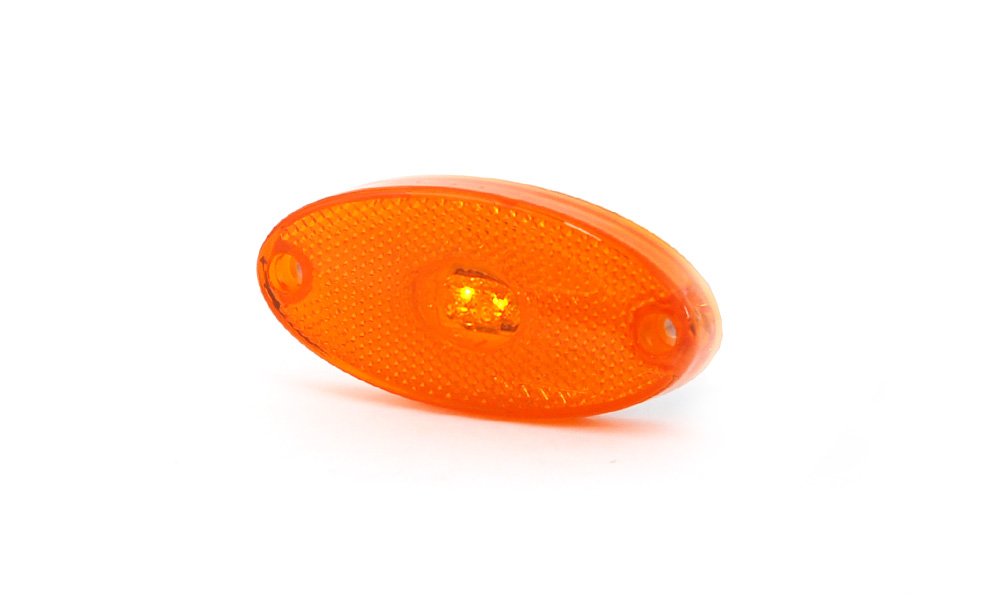

This slimline oval LED amber marker lamp (MPN 763 411) is a compact, road-legal outline/side marker designed for use on trailers, vans, HGVs, plant transporters and other towed or commercial vehicles. It operates on both 12V and 24V electrical systems and uses a sealed LED module to provide reliable conspicuity lighting with minimal maintenance. The low-profile oval body is suitable for tight mounting areas and can be installed either horizontally or vertically to suit the vehicle layout. An integrated reflector removes the need for a separate side reflector in many installations, helping keep fittings simple and tidy. The unit is pre-wired with a 220 mm (22 cm) cable tail, approximately 8.7 in, for straightforward connection into existing loom runs. With IP66/IP68 ingress protection and E-mark approval, this lamp is built to withstand washdowns and harsh weather while remaining compliant for on-road use.
Key Features:
- Dual-voltage operation: 12/24V DC
- Amber LED marker lamp with integrated reflector
- Slimline oval profile for low‐profile installations
- Mounts horizontally or vertically to suit the application
- Surface-mount design with fixing holes for secure attachment
- Pre-wired with 220 mm (8.7 in) cable tail for quick connection
- High ingress protection: IP66/IP68 for dust and water resistance
- E-mark approved for road use in appropriate positions
- Sealed LED module for durable, maintenance-light service
Typical Applications:
Used as a side or outline marker on box trailers, flatbeds, tippers, plant and machinery carriers, curtain-siders, recovery bodies, horseboxes and caravans. Suitable for fitting to the vehicle side or front corners where an amber marker is required. The integrated reflector helps consolidate conspicuity equipment on the body side. Cross-reference: available in related Maypole variants and packaging formats (see MP1655 and MP1655BQ references).
Also known as:
Amber Side Marker Light, Amber Clearance Lamp, Outline Marker Lamp, Slimline Oval LED Marker, Maypole part number MP1655B, MP1655, MP1655BQ
Product Specifications
| L&S Part No. | 763 411 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
