Description
Overview:

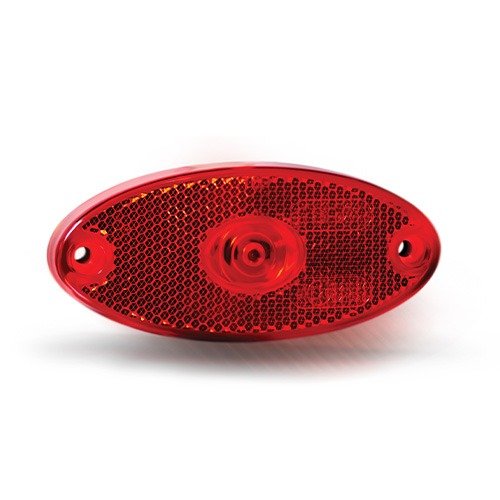

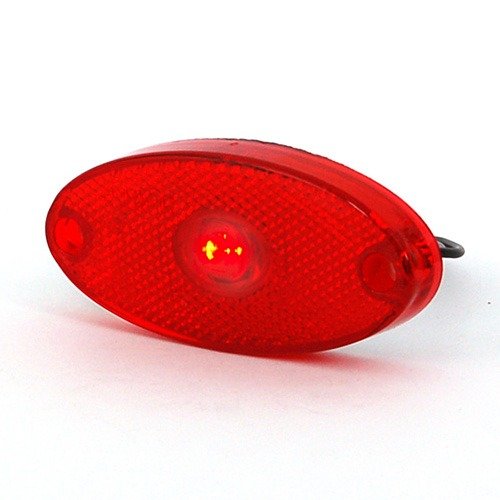

Slimline oval red LED marker lamp for 12V and 24V systems. Surface-mount unit with integral reflector and E-mark approval for road use. Pre‐wired with a short flying lead for straightforward connection. Can be mounted in either horizontal or vertical orientation. Supplied display packed. Maypole reference MP1657.
Specification:
- Voltage: 12/24V dual‐voltage
- Light Source/Colour: LED, red
- Shape/Design: Slimline oval
- Orientation: Horizontal or vertical mounting

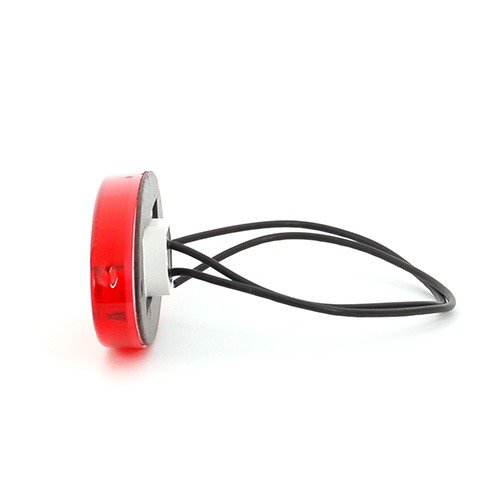

- Connection: 220 mm (8.7 in) pre‐wired cable
- Ingress Protection: IP66/IP68
- Approval: E‐marked
- Mounting: Surface mount with fixing holes
- Reflector: Integral
- Pack Format: Display packed
- Also Available: Single (bulk) version MP1657B
Typical Applications:
Side or rear marker lamp on trailers, plant and machinery transporters, recovery bodies and rigid bodies. Suitable for 12/24V lighting circuits on commercial vehicles, vans and towed equipment.
Product Specifications
| L&S Part No. | 763 455 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Voltage: 12/24V dual-voltage compatible - Light Source: Red LED - Mounting: Horizontal or vertical surface mount - Ingress Protection: Rated IP66/IP68 - Connection: 220 mm pre-wired cable |
