Description
Overview:

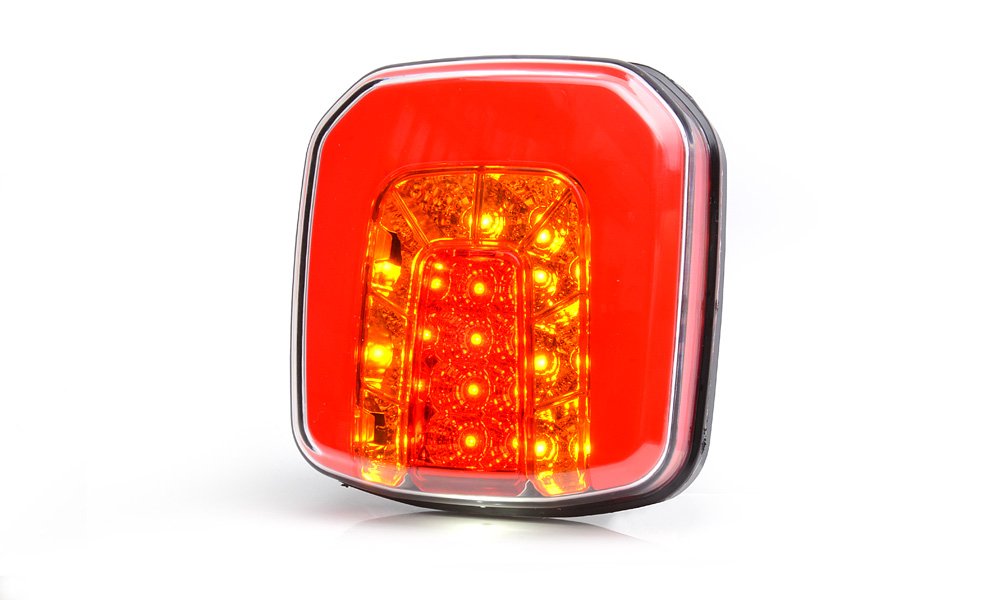

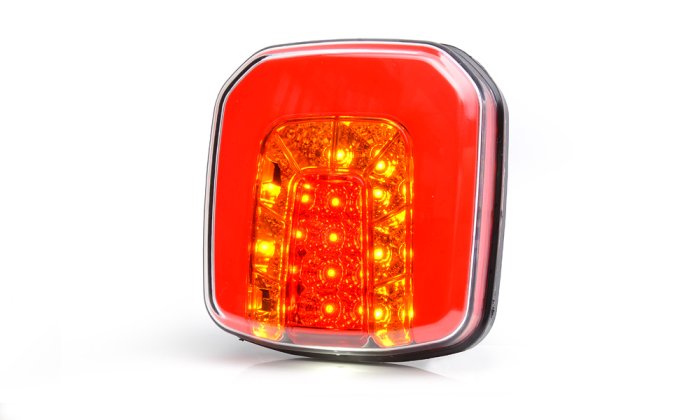

Square LED Rear Combination Lamp 12-24V, Slimline, Number Plate Light (MPN 763 929) is a sealed multi-function rear lamp for trailers and towed equipment operating on 12V and 24V systems. It provides stop, tail, indicator and number plate illumination in a compact square format suited to modern trailer builds and replacements. The unit is supplied pre‐wired with a 2 m cable for straightforward connection and mounts using M6 stud fittings for a secure installation. With IP66/68 ingress protection, it is designed to withstand road spray, pressure washing and temporary immersion. E approval and EMC compliance make it suitable for road use on a wide range of applications. The slimline profile helps avoid snags and damage in service, while LED technology offers low current draw and long service life for fleet and hire environments.
Key Features:
- 12-24V multi-voltage operation
- Stop / tail / indicator / number plate functions
- Slimline square body for compact mounting
- Pre‐wired 2 m cable (approx. 6 ft 7 in) for easy installation
- M6 stud mount fixings supplied
- IP66/68 rated: dust-tight, high-pressure water and immersion resistant
- E approved and EMC compliant for road use
- Low current draw, long-life LED light source
Typical Applications:
Rear lighting on general duty trailers, plant and equipment carriers, flatbeds, tippers and trailer light boards. Suitable for use on vans, pickups and HGV-drawn trailers where a compact, square rear combination lamp with an integrated number plate light is required. Mount so the number plate light faces the plate to meet lighting regulations.
Also known as:
Square slimline LED trailer light, 4‐function rear combination lamp, LED stop/tail/indicator/number plate lamp, WAS square LED lamp, Maypole part number MP8660B
Product Specifications
| L&S Part No. | 763 929 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 12-24V multi-voltage operation for versatile use - Stop, tail, indicator, and number plate functions - IP66/68 rated for dust and water resistance - Pre-wired 2 m cable for easy installation - M6 stud mount fixings for secure attachment |
