Description
Overview:

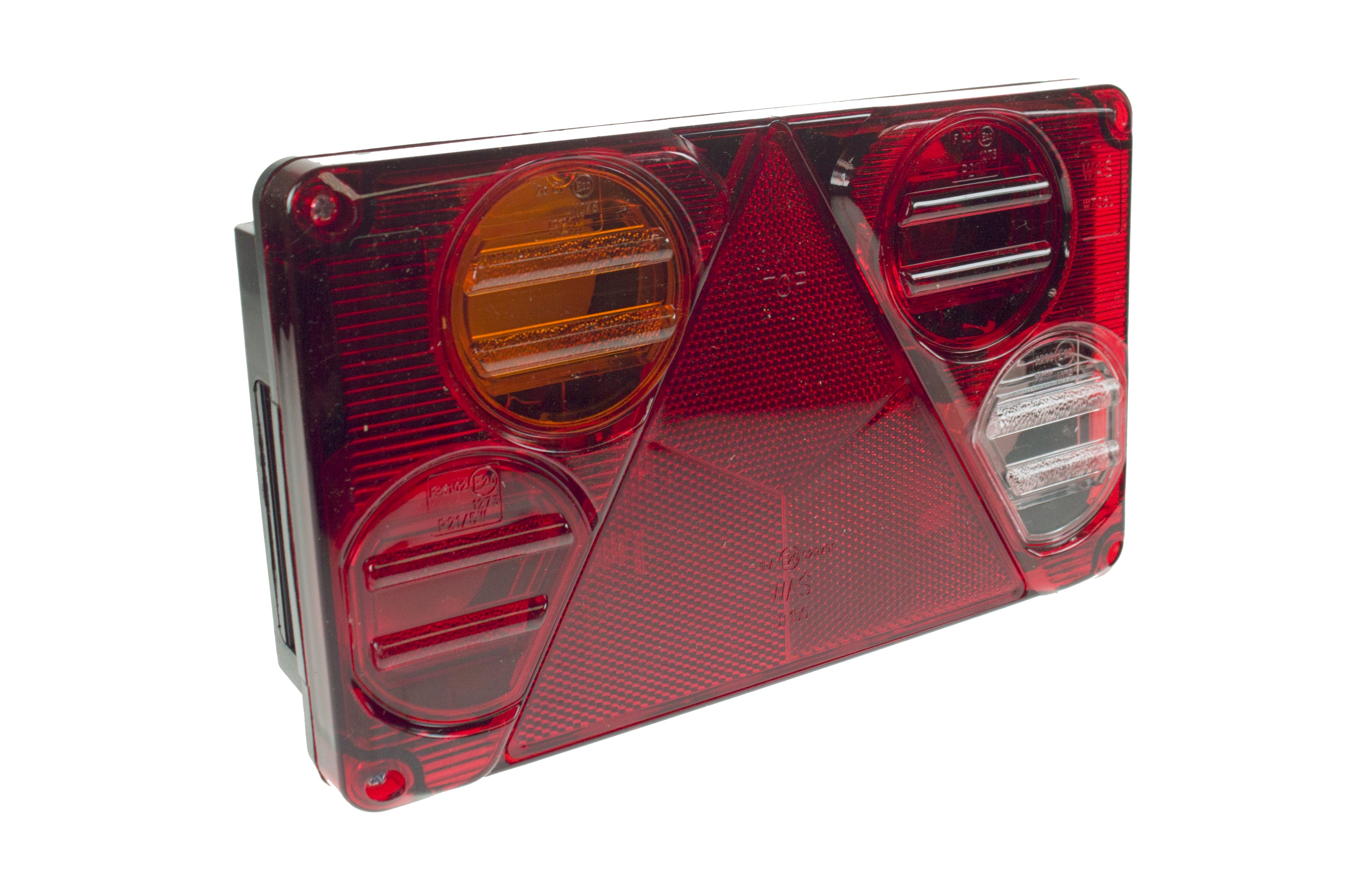

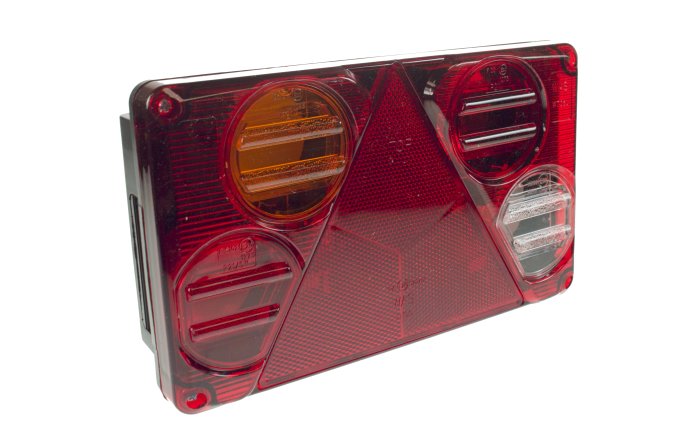

This left hand horizontal 12/24V trailer combination lamp (MPN 763 620) is a slimline rear light unit covering the six key functions needed on road-going trailers and towed equipment: stop, tail, indicator, fog, reverse and reflector. It is a bulb-type assembly supplied without bulbs, making it a straightforward service replacement where existing bulb fitments are retained. The unit uses spade connections for quick wiring and is designed for surface mounting with pre-formed fixing holes. With an IP56 ingress protection rating and E approval, it is suitable for on-road use in the UK and EU. The compact, low-profile form suits trailer boards and tight rear bodywork where space is limited. Typical applications include general-purpose trailers, plant and equipment transporters, recovery and car transporter trailer boards, and light commercial towing setups where a left-hand horizontal rear cluster is required. A matching spare lens is available separately under Maypole reference MP8252BL, and the complete lamp corresponds to Maypole's MP825BL pattern.
Key Features:
- 12/24V multi-voltage operation for cars, vans and trucks
- Six functions: Stop, Tail, Indicator, Fog, Reverse and Reflector
- Left hand, horizontal orientation for the nearside rear
- Slimline design for compact installations and trailer boards
- Spade terminal connection for quick, simple wiring
- IP56 ingress protection against dust and powerful water jets
- E approved for road use
- Supplied without bulbs (bulb-type lamp)
- Surface-mount installation with mounting holes
- Spare lens available separately: Maypole MP8252BL
Typical Applications:
Fitted as the left-hand rear cluster on trailers, trailer boards, plant and machinery transporters, car transporters, general-duty goods trailers and other towed equipment requiring a horizontal multi-function lamp. Suitable for 12V light vehicle towing and 24V commercial towing systems where a matching right-hand unit is used on the offside.
Also known as:
Left Hand 6-Function Trailer Rear Lamp
WAS Horizontal Combination Light (LH)
12/24V Rear Cluster Lamp, Left Hand
Maypole part number MP825BL
Product Specifications
| L&S Part No. | 763 620 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
