Description
Overview:

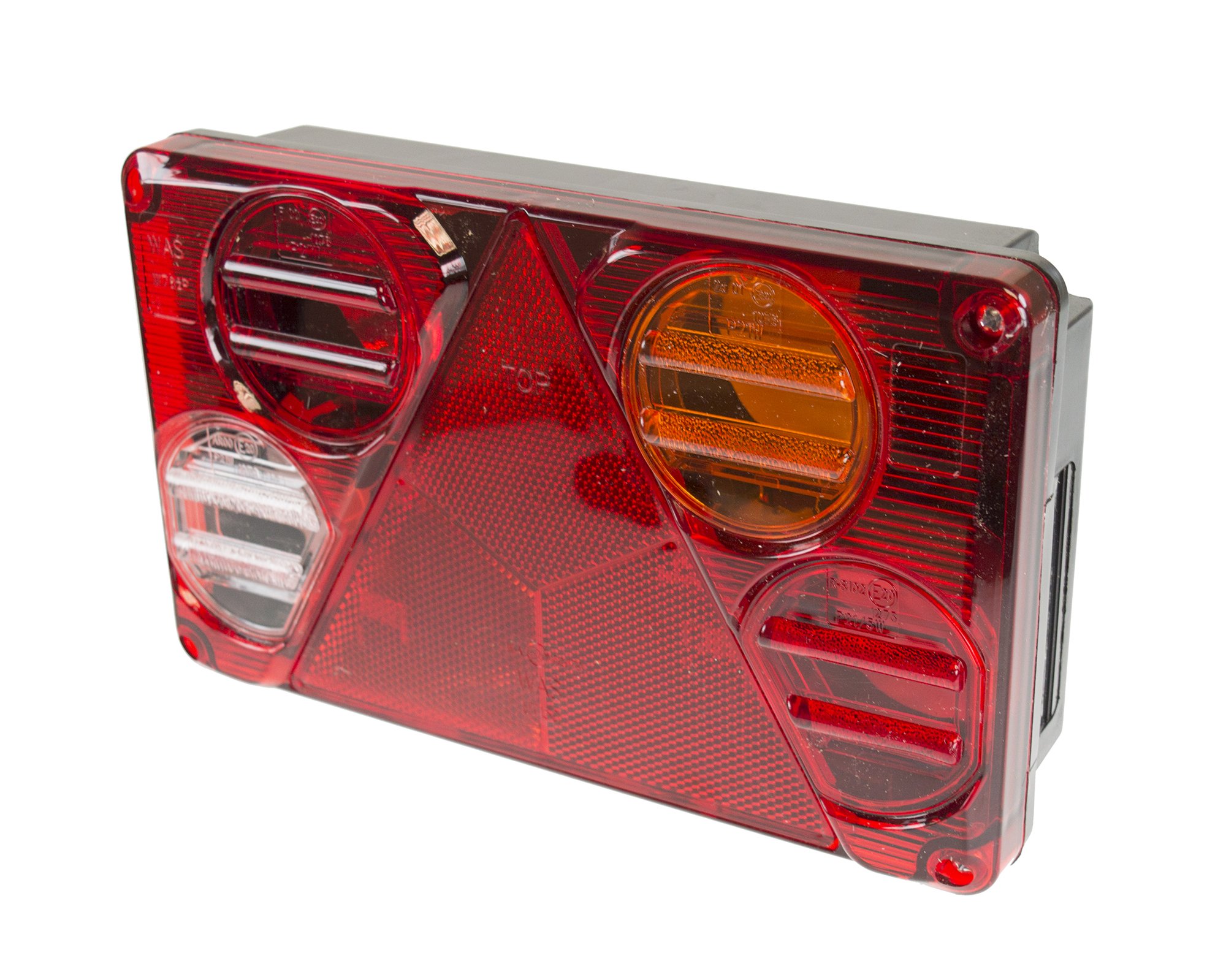

The Right Hand Horizontal Rear Combination Lamp 12/24V, Bulb, WAS (MPN 763 621) is a multi-function rear light unit for trailers and towed equipment operating on both 12V and 24V systems. It provides the core rear lighting functions in one slim assembly: stop, tail, indicator, rear fog, reverse and an integrated reflector. Designed for horizontal fitting on the right-hand side, it suits general duty trailers, plant and machinery transporters, recovery bodies and trailer boards. The unit uses replaceable bulbs and is supplied without bulbs, allowing you to specify lamp types to suit your fleet standards. Electrical connection is via spade terminals for straightforward service work. The housing carries an IP56 rating for dust and water resistance and is E-approved for road use. A matching spare lens is available under reference MP8252BR for maintenance.
Key Features:
- Six rear functions: stop, tail, indicator, rear fog, reverse and reflector
- Dual-voltage 12/24V operation for cars, vans, HGVs and plant
- Bulb type lamp unit; supplied without bulbs for flexible servicing
- Right-hand, horizontal orientation for rear mounting
- Slimline profile to suit tight mounting spaces and trailer boards
- Spade terminal electrical connection
- IP56 dust and water ingress protection
- E-approved for road use
- Mounts via pre-formed fixing holes
- Spare lens available: MP8252BR
- Maypole reference: MP825BR
Typical Applications:
Fitted as the right-hand rear light cluster on general purpose trailers, plant and machinery transporters, car transporters and agricultural or commercial trailers. Suitable for use on trailer boards and towing setups requiring a horizontal right-hand unit with stop, tail, indicator, fog, reverse and reflector functions. Useful where fleets operate mixed 12V/24V vehicles and prefer bulb serviceability. Cross-reference: Maypole MP825BR lamp body; spare lens MP8252BR.
Also known as:
Right Hand Rear Cluster Lamp, Horizontal
6-Function Bulb Combination Light, RH
Trailer Board End Lamp (Right), 12/24V
Rear Combination Lamp, Bulb Type, RH
Maypole part number MP825BR
Product Specifications
| L&S Part No. | 763 621 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
