Description
Overview:

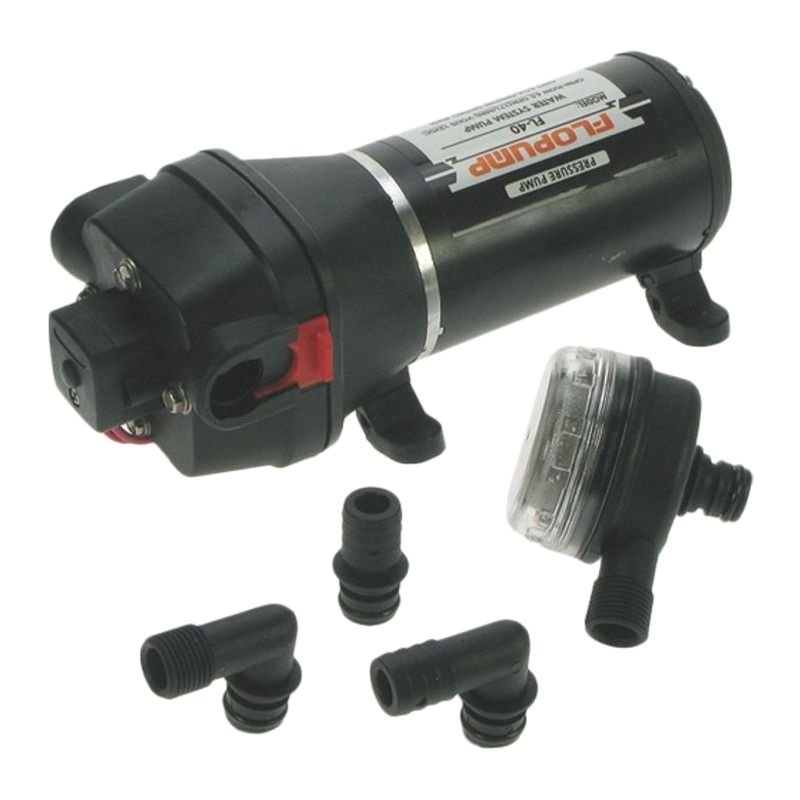

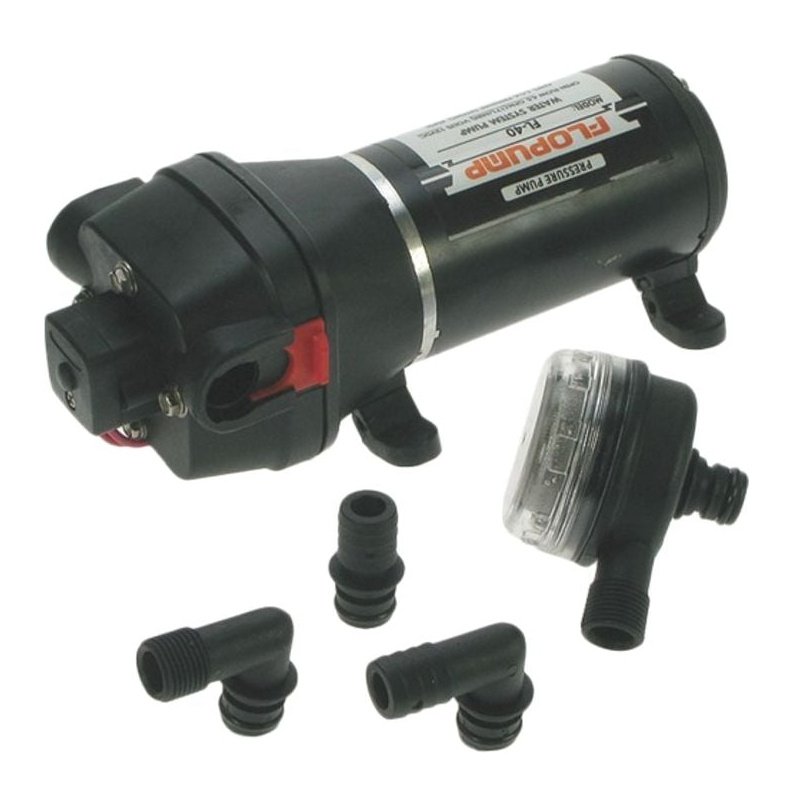

The 12 Volt Diaphragm Pump Kit (MPN 080 670) is a compact electric pump for spraying and transferring water and many common agricultural chemicals. It uses a chemical‐resistant EPDM diaphragm and a tough polypropylene housing to handle demanding outdoor tasks. With a 4‐piston design, a built‐in pressure/demand switch, and a flow rate up to 17 litres per minute, it delivers steady performance for field and yard work. The pump is self‐priming and can run dry for short periods, making it a practical choice on ATVs and utility vehicles, and for horticultural rigs and portable systems. Suitable for ATV mounted sprayers and a wide range of horticultural spraying equipment, it provides reliable pressure for booms, spot lances, and transfer duties on site or around the farm.
Key Features:
- 12 V DC diaphragm pump with 4‐piston design for smooth, pulsation‐reduced flow
- Chemical‐resistant EPDM diaphragm and polypropylene body for durability
- Built‐in pressure/demand switch for automatic start/stop control at the nozzle
- Self‐priming up to 1.8 m (5.9 ft) to lift from tanks and bowsers without pre‐fill
- Maximum pressure 40 PSI (2.8 bar) to drive spray guns and small booms
- Flow rate up to 17 L/min for efficient spraying and liquid transfer
- Can run dry without damage (maximum run time 30 minutes) for added protection
- Operating temperature range 5-50°C for year‐round UK conditions
- Suits ATV, UTV, and horticultural setups; easy to plumb into portable systems
- Low‐maintenance design with no complex seals exposed to liquid
Typical Applications:
Spraying herbicides, pesticides, and fertilisers from ATV mounted sprayers; horticultural spraying in polytunnels and glasshouses; transferring water from tanks and bowsers; supplying portable wash or rinse systems; feeding pole window cleaning setups; general liquid transfer around farms, estates, and landscaping sites where a compact 12 V pump is preferred.
Also known as:
Liquid transfer pump, chemical sprayer pump, water sprayer pump, ATV sprayer pump, horticultural pump, portable water pump, window cleaning pump, 12V diaphragm sprayer pump, 12V transfer pump, DC sprayer pump.
Product Specifications
| L&S Part No. | 080 670 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | All Terrain Vehicles |
