Description
Overview:

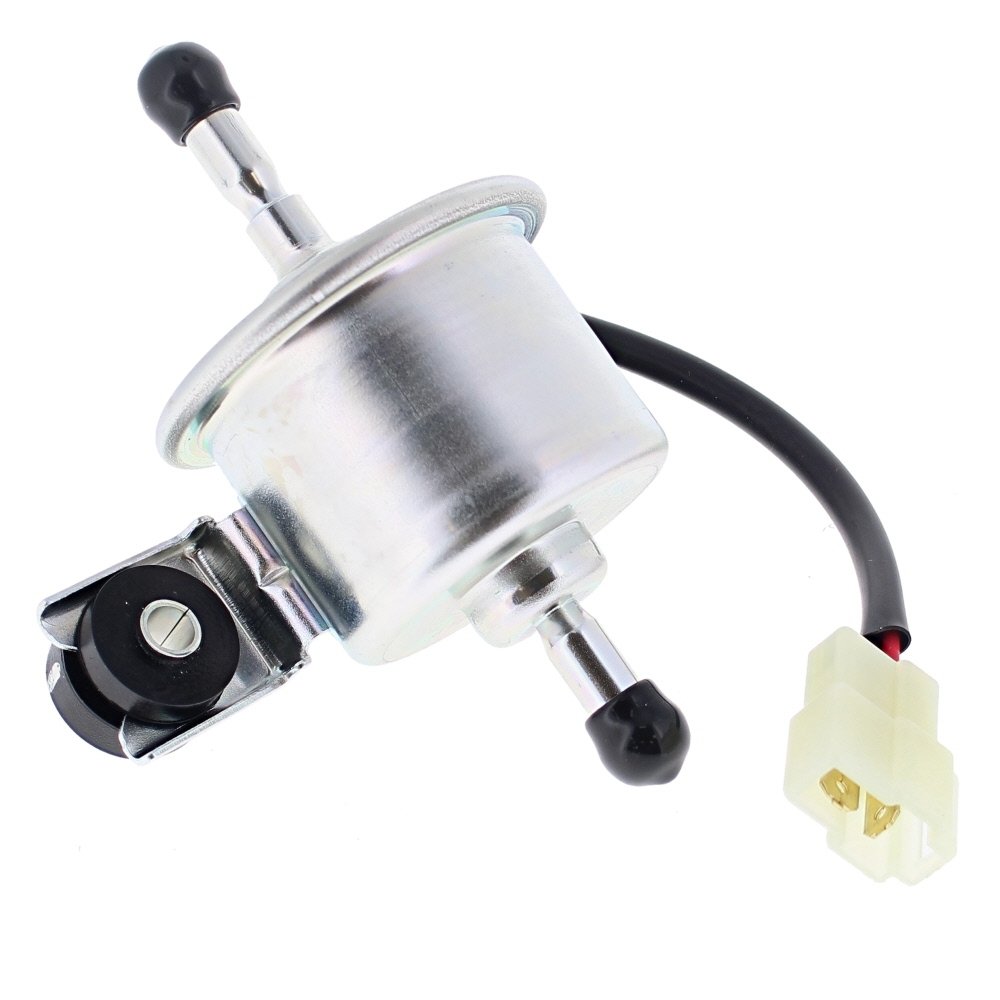

The 12 Volt Electric Diesel Primer Pump is a compact, in-line fuel feed and priming unit for diesel-powered machinery. Built with a metal housing and rubber-isolated fixings, it is designed to replace JCB 334/E5191 on a wide range of compact excavators, loaders and site equipment, including popular models such as 19C-1 and 8026 CTS. It supplies low-pressure diesel flow to assist cold starts, purge air after filter changes, and maintain steady fuel delivery to the engine. The pump uses 8 mm (0.31 inches) hose tails on both inlet and outlet for straightforward plumbing, and mounts via rubber fixings with a 70 mm (2.75 inches) hole centre. A White 2-blade T-configuration plug provides simple electrical connection. Size is a space-saving 65 mm (2.56 inches) high by 90 mm (3.54 inches) wide.
Key Features:
- 12 V DC operation for compatibility with most plant and compact machinery electrical systems
- Direct replacement for JCB 334/E5191 for straightforward like-for-like fitting
- Rubber mount fixings, 70 mm (2.75 inches) hole centre, to reduce vibration and noise
- 8 mm (0.31 inches) hose tails on both ports for common diesel fuel lines
- Compact footprint: 65 mm (2.56 inches) height, 90 mm (3.54 inches) width, for tight engine bays

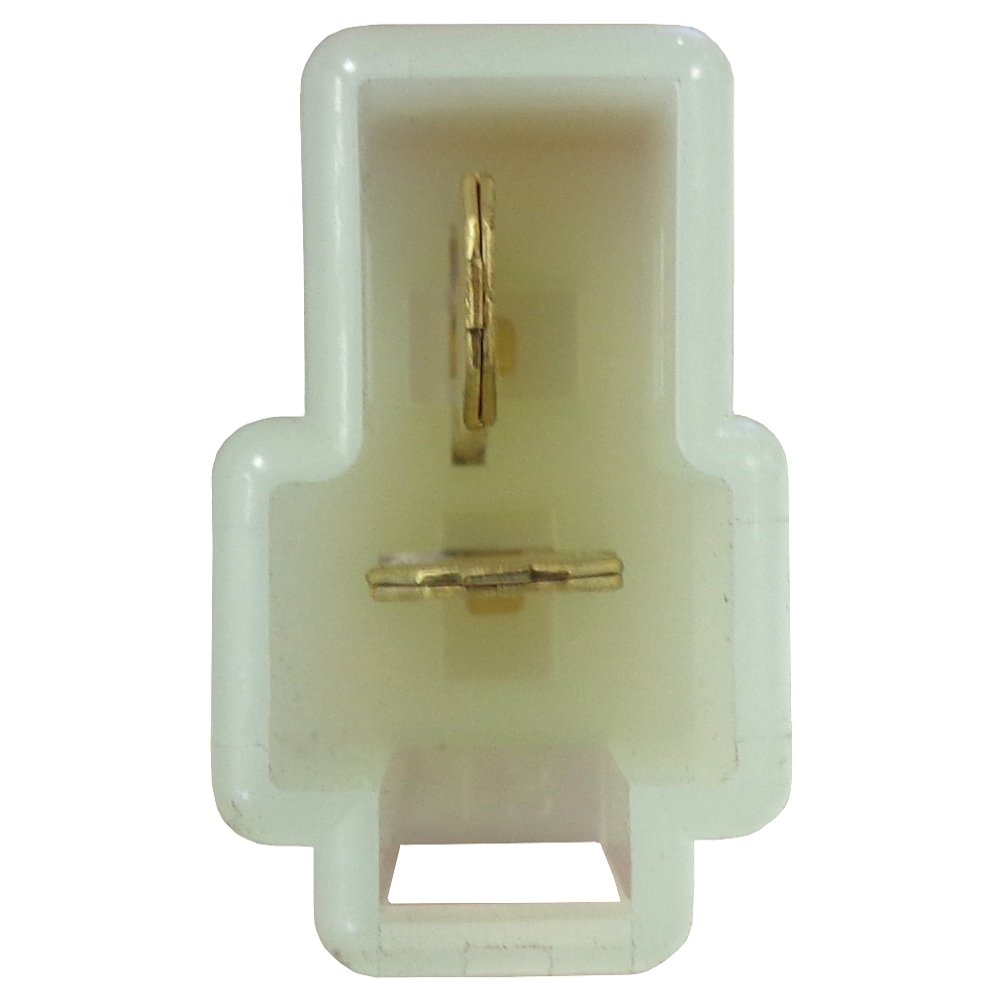

- White 2-blade T-config plug for quick, reliable electrical connection
- Durable metal body with resilient rubber isolators for long service life in harsh sites
- Suitable for priming after filter or line work and for reliable low-pressure fuel feed
- Helps clear air locks and improves starting on diesel engines
- Versatile orientation and simple two-point mounting for easy installation
Typical Applications:
Used to prime diesel systems after maintenance, assist cold starting, and transfer diesel from tank to engine on compact excavators, skid steers, dumpers, site lighting towers, compressors and generators. Ideal for workshop servicing and field repairs where rapid fuel system bleeding is needed to restore consistent engine running.
Also known as:
Electric lift pump, diesel feed pump, low-pressure fuel pump, inline priming pump, electric diesel transfer pump, auxiliary fuel pump, diesel supply pump, electric fuel assist pump.
Fits Models:
135R, 150TR, 155, 16C-1 T3, 16C-1 T4, 16C1T3, 16C1T3FIXED, 16C1T4, 175, 190, 190T, 19C-1, 19C-1 EP, 19C-1 PC, 19C1, 19C1EP, 19C1PC, 205, 205T, 35Z-1, 35Z1, 35Z1G, 36C-1, 36C1, 48Z-1 T3, 48Z-1 T4, 48Z1T3, 48Z1T4, 51R-1 T3, 51R-1 T4, 51R1T3, 51R1T4, 55Z-1 T3, 55Z-1 T4, 55Z1T3, 55Z1T4, 57C-1 T3, 57C1T3, 65R-1, 65R1, 801, 8014, 8014 CTS, 8014CTS, 8016, 8016 CTS, 8016CTS, 8018, 802, 8020, 8020 CTS, 8020CTS, 8025 ZTS, 8025 ZTS ORFS, 8025ZTS, 8025ZTSORFS, 8026 CTS, 8026CTS, 8029 CTS, 8029CTS, MACH 201, MACH 374, MACH 378, MACH201, MACH374, MACH378, VB9, VT1
Alternate Part Numbers:
JCB 334/E5191, 334/E5191, 334E5191, T53230
Product Specifications
| L&S Part No. | 080 200 |
|---|---|
| Unit of Sale | 1 |
| Applications | 135R, 150TR, 155, 16C-1 T3, 16C-1 T4, 16C1T3, 16C1T3FIXED, 16C1T4, 175, 190, 190T, 19C-1, 19C-1 EP, 19C-1 PC, 19C1, 19C1EP, 19C1PC, 205, 205T, 35Z-1, 35Z1, 35Z1G, 36C-1, 36C1, 48Z-1 T3, 48Z-1 T4, 48Z1T3, 48Z1T4, 51R-1 T3, 51R-1 T4, 51R1T3, 51R1T4, 55Z-1 T3, 55Z-1 T4, 55Z1T3, 55Z1T4, 57C-1 T3, 57C1T3, 65R-1, 65R1, 801, 8014, 8014 CTS, 8014CTS, 8016, 8016 CTS, 8016CTS, 8018, 802, 8020, 8020 CTS, 8020CTS, 8025 ZTS, 8025 ZTS ORFS, 8025ZTS, 8025ZTSORFS, 8026 CTS, 8026CTS, 8029 CTS, 8029CTS, MACH 201, MACH 374, MACH 378, MACH201, MACH374, MACH378, VB9, VT1 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | VT1 | VB9 | MACH 378 Dumper | MACH 374 Dumper | MACH 201 Dumper | 801 | 802 | 8014 | 8016 | 8018 | 36C-1 | 55Z-1 T3 | 55Z-1 T4 | 57C-1 T3 | 65R-1 | 8014 CTS | 8016 CTS | 8020 CTS | 8025 ZTS | 8029 CTS | 19C-1 | 16C-1 T3 | 16C-1 T4 | 48Z-1 T3 | 48Z-1 T4 | 51R-1 T3 | 51R-1 T4 | 8025 ZTS ORFS | 8026 CTS | 19C-1 EP | 19C-1 PC | 16C-1 T3 |
