Description
Overview:

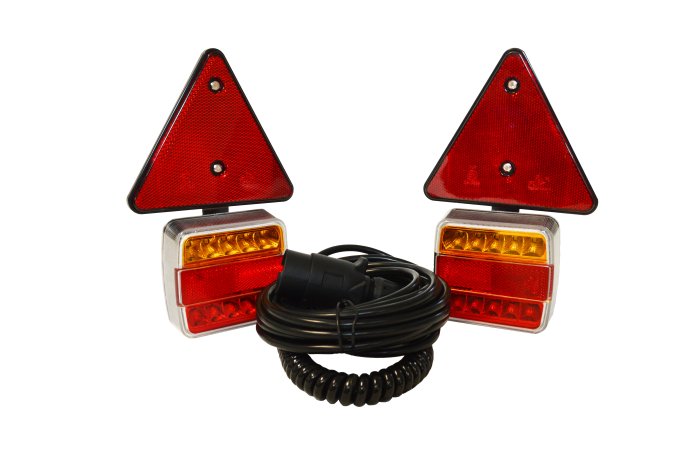

LED Magnetic Trailer Lighting Pod Kit 12V, 6m Cable, 1.8m Lead, Triangles (MPN 763 940) is a compact rear lighting solution for temporary or auxiliary use on trailers and agricultural equipment. The kit comprises two magnetic lighting pods with sealed LED combination lamps providing stop, tail, indicator and number plate functions. Each lamp is E-mark approved and built to IP67 for resistance to water and dust, making it suitable for demanding site and farm environments. A 6.0 m (19.7 ft) trailer cable provides reach from the towing vehicle to the rear, while a 1.8 m (5.9 ft) curly interconnecting lead allows flexible spacing between the pods. The pods attach using strong magnets for quick placement on suitable steel surfaces. The set also includes two red triangular reflectors mounted on steel poles to improve rear visibility and compliance. Designed for 12V systems commonly found on cars, 4x4s and light commercial vehicles.
Key Features:
- 12V LED magnetic lighting pod kit for temporary or auxiliary trailer lighting
- Two E-approved LED combination lamps: stop, tail, indicator and number plate functions
- IP67-rated lamps for dustproof and waterproof performance
- Powerful magnets for fast, secure attachment to ferrous panels and frames
- 6.0 m main trailer cable (approx. 19.7 ft) for vehicle-to-rear connection
- 1.8 m curly interconnecting lead (approx. 5.9 ft) for lamp-to-lamp connection
- Supplied with two E-approved red triangle reflectors on steel mounting poles
- Suitable for agricultural use and general trailer applications
- Low-maintenance LED light sources with high vibration resistance
- Durable construction for site, yard and field conditions
Typical Applications:
Used on general-purpose, plant and agricultural trailers where rapid deployment of road-legal lighting is required. Ideal when fixed rear lamps are damaged, under repair or obscured by loads. The magnetic pods mount to steel tailgates, cross-members or body panels, providing compliant rear signalling and number plate illumination on 12V towing setups behind cars, 4x4s and light commercial vehicles.
Also known as:
Magnetic Trailer Light Kit (LED, 12V)
LED Magnetic Lighting Pods With Triangles
Temporary Trailer Rear Light Set
Agricultural Magnetic Lighting Kit
Maypole part number MP44952
Product Specifications
| L&S Part No. | 763 940 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
