Description
Overview:

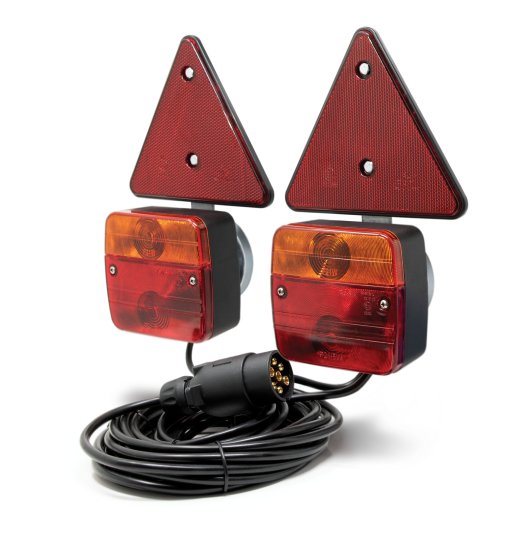

This 12V magnetic trailer lighting pod set (MPN 763 850) is a portable rear lighting solution for trailers, agricultural implements and plant transport. It comprises two bulb combination lamps mounted on steel plates with integral red reflective triangles. Each lamp assembly provides the core rear lighting functions required on the road: stop, tail, indicator and number plate illumination. Strong magnets on the rear of each plate allow fast, tool-free attachment to suitable steel surfaces. A pre-fitted 10 m (32.8 ft) trailer lead with a standard 7‐pin (12N) plug connects to the towing vehicle, and a 3 m (9.8 ft) straight cable links the left and right lamps. The lamp units are EU approved and use replaceable 12V bulbs. Designed for temporary or auxiliary use, the set is suited to farm and site work where a quick-fit lighting arrangement is needed, or where permanent lights are damaged or obscured.
Key Features:
- 12V bulb combination lamps providing stop, tail, indicator and number plate functions
- Supplied as a pair of magnetic lighting pods with EU-approved components (E-marked)
- Steel mounting plates each with a high-visibility red reflective triangle
- High-strength magnets for quick and secure attachment to ferrous bodywork
- 10 m (32.8 ft) trailer lead with pre-fitted 7-pin (12N) plug
- 3 m (9.8 ft) straight interconnecting cable between lamps
- Suitable for agricultural and general trailer applications requiring temporary lighting
- Replaceable bulb format for straightforward maintenance on site
Typical Applications:
Used as temporary rear lighting on farm trailers, plant and machinery trailers, recovery dollies, site trolleys and general-purpose towed equipment. Ideal when original lights are damaged, obscured by loads, or where a quick-fit lighting arrangement is required. Connects to towing vehicles equipped with a standard 7-pin (12N) socket and mounts to steel surfaces without drilling.
Also known as:
Magnetic Trailer Lights
Magnetic Trailer Lighting Kit With Triangles
Trailer Light Pods, Temporary Light Board Alternative
Maypole part number MP44922
Product Specifications
| L&S Part No. | 763 850 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
