Overview:

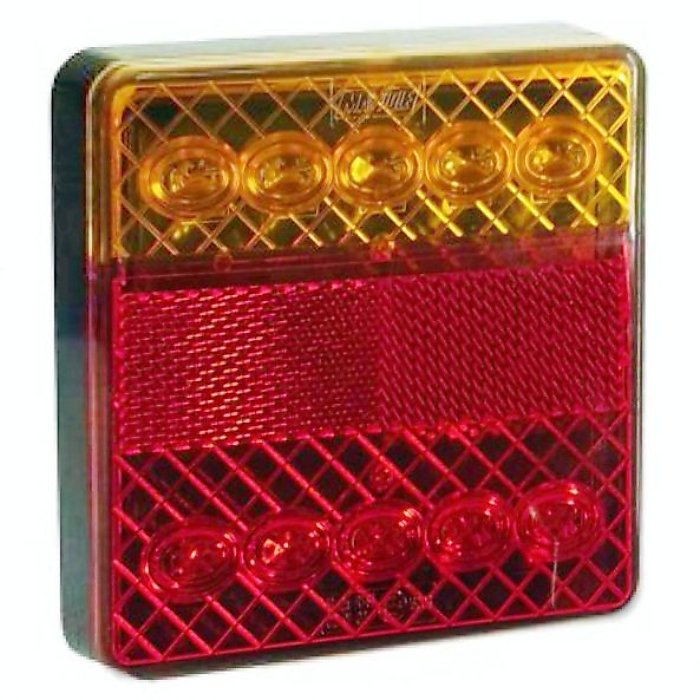

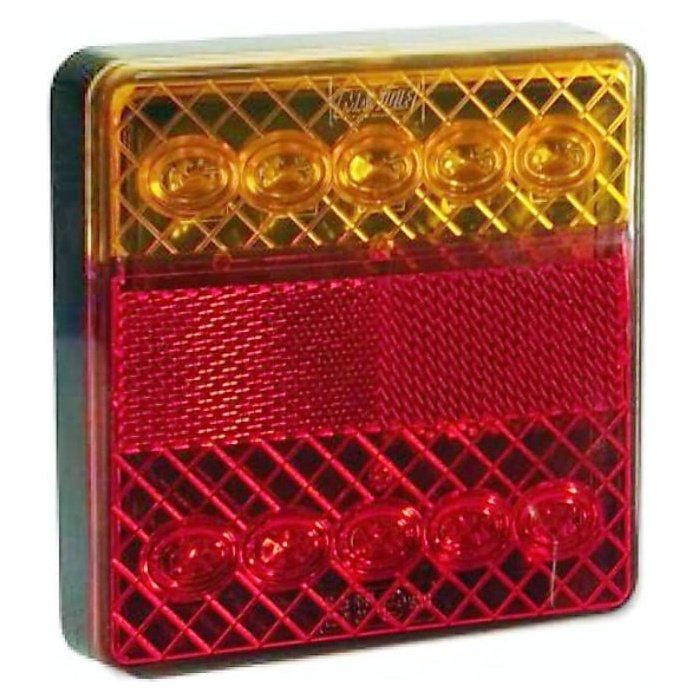

The 12 Volt LED Stop/Tail/Indicator Trailer Board Lamp (MPN: 802 176) is a compact, durable rear combination light for trailers and lighting boards. Built with robust materials for long service life, it provides clear stop, tail, and indicator signals to improve visibility and safety on the road. The square form factor measures 100mm x 100mm with a 20mm depth, and it mounts via M5 studs with an 18mm stud length for secure fitting. Operating on 12V with a low current draw, it is fully CE marked for peace of mind. A 340mm pre-wired lead simplifies installation on new builds or replacements, and the clear wiring colours help ensure a correct connection to typical 12V towing electrics.
Key Features:
- 12V LED rear combination lamp providing stop, tail, and indicator functions
- Low current draw for efficient running and reduced load on the vehicle circuit
- Compact 100mm x 100mm x 20mm design for easy placement on boards and trailer frames
- Mounts on M5 studs with 18mm stud length for a secure, vibration-resistant fit
- Pre-wired with a 340mm lead for straightforward installation and routing
- Clear wiring identification: White = Earth, Red = Stop, Brown = Tail, Yellow = Indicator
- Bright, long-life LEDs for reliable illumination and quick response
- Fully CE marked and approved for safety and quality compliance
- Durable construction suitable for regular use in commercial and DIY environments
- Suitable for left or right side when wired to the appropriate circuit
Typical Applications:
Ideal for trailer lighting boards, small plant and utility trailers, boat trailers, and general towed equipment requiring a compact rear lamp. Useful for repairs, upgrades, and new builds where reliable stop, tail, and indicator signalling is required on a 12V system. Well suited to trades, agriculture, hire fleets, and home users.
Also known as:
Combination rear light, rear cluster lamp, stop tail turn lamp, 12V LED rear lamp, towing light, LED rear combo, trailer rear signal light, LED stop/tail/turn unit, rear LED module, compact trailer lamp.
Product Specifications
| L&S Part No. | 802 176 |
|---|---|
| Unit of Sale | 1 |
| Size | 100mm X 100mm |
| Machine Type | Trailers |
