Description
Overview:

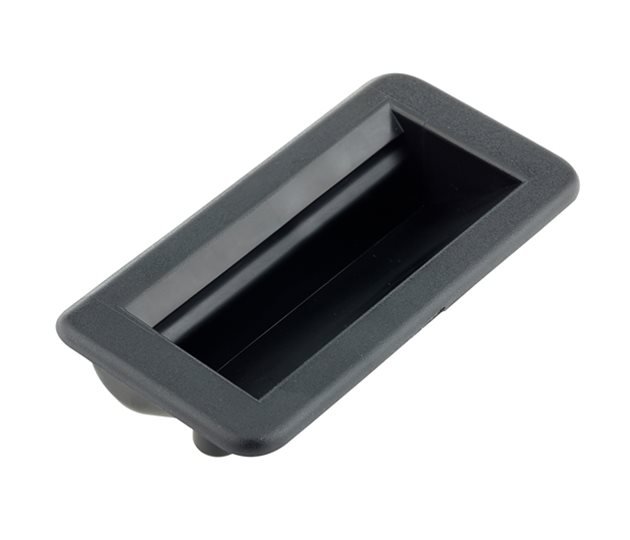

Recessed Flush Panel Handle, Screw Fix, Black ABS, 131.5 x 72.5mm (MPN 800 1306) is a low‐profile pull handle designed for vehicle and equipment bodywork where a flush fit is required. The handle body is moulded from black ABS plastic for a durable, tidy finish and sits recessed to minimise snagging. It is supplied with a black pressed steel clamp plate, fixing screws and a neoprene gasket to assist with sealing the panel interface. Overall size is 131.5mm x 72.5mm (5.18" x 2.85") with a body depth of 41mm (1.61"). The grip range suits 4-10mm (0.16"-0.39") panel thickness. A rectangular panel cut-out of 109 x 49-55mm (4.29" x 1.93"-2.17") is required, dependent on panel thickness. Commonly used on commercial vehicles and ancillary equipment, it provides a neat, practical operating point for doors, hatches and shutters.
Key Features:
- Flush-fit recessed panel pull for a low-profile installation
- ABS plastic body with black finish
- Black pressed steel clamp plate for secure clamping
- Screw-fix mounting; fixing screws included
- Neoprene gasket supplied to aid panel sealing
- Overall length: 131.5mm (5.18")
- Overall width: 72.5mm (2.85")
- Body thickness/depth: 41mm (1.61")
- Panel cut-out: 109 x 49-55mm (4.29" x 1.93"-2.17"), dependent on panel thickness
- Grip/panel thickness range: 4-10mm (0.16"-0.39")
Typical Applications:
Suitable for trucks, trailers, buses and horseboxes, including cab doors, service hatches and locker lids. Also used on sliding doors and roller shutters in commercial bodywork, and on generator/genset enclosures and other equipment panels where a recessed pull handle is preferred.
Also known as:
Flush pull handle, recessed pull handle, panel pull, flush-mount handle, flush-fit handle, recessed grab handle
Product Specifications
| L&S Part No. | 800 1306 |
|---|---|
| Unit of Sale | 1 |
