Description
Overview:

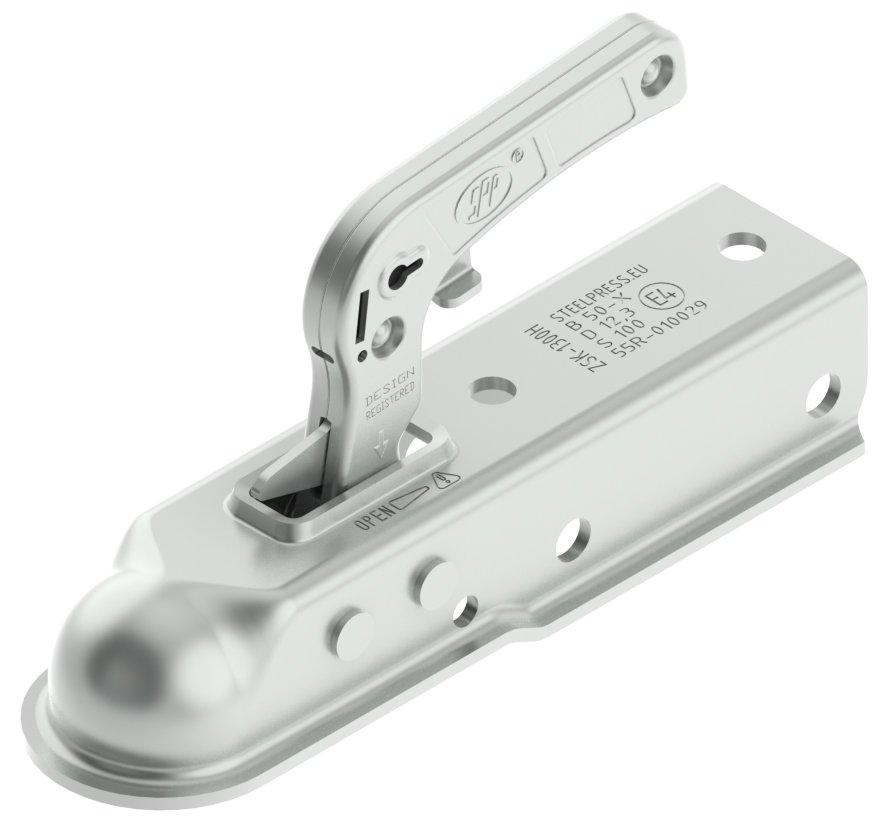

This 50mm trailer coupling (MPN 763 749) is a reinforced pressed steel, bolt-on coupling head for use with standard 50mm (1.97 in) towballs on light trailers and plant transport up to 1300 kg (1.28 t) gross. It mounts to a minimum 50 mm (2.0 in) square tube drawbar using two M12 (approx. 1/2 in) high-tensile bolts. The body is zinc plated for corrosion resistance and is R55 approved with D = 12.3 kN and S = 100 kg. An integrated wear gauge and correct attachment indicator help confirm safe connection to the towball. Mounting holes are provided on both the side and top faces to suit different drawbar configurations. Supplied without a lock, it accepts an optional coupling lock and a soft dock bumper for added protection.
Key Features:
- 50mm (1.97 in) ball coupling head for standard UK towballs
- Rated for applications up to 1300 kg (1.28 t) gross
- Suits minimum 50 mm (2.0 in) square tube drawbars
- Bolt-on fitment using 2 x M12 (approx. 1/2 in) bolts, grade 8.8 or higher
- Reinforced pressed steel construction for durability
- Zinc-plated finish for corrosion protection
- Mounting holes provided on both the side and the top
- R55 approved: D = 12.3 kN, S = 100 kg
- Wear indicator and correct attachment indicator for safety checks
- Supplied without lock; compatible with optional lock MP478B
- Can be fitted with soft dock/bumper MP1940
- Suitable replacement for Knott KQ14AVN2L
Typical Applications:
Used on general-purpose and plant trailers, utility and boat trailers, and light commercial towing set-ups requiring a 50mm towball connection. Fits minimum 50 mm square tube drawbars with side or top bolt options. Commonly specified as a replacement for Knott KQ14AVN2L pressed steel coupling heads where a like-for-like 1300 kg unit is needed.
Also known as:
50mm Coupling Head
1300 kg Trailer Coupling
Pressed Steel 50mm Ball Hitch
Knott KQ14AVN2L Equivalent
Maypole part number MP1923
Product Specifications
| L&S Part No. | 763 749 |
|---|---|
| Part Type | Genuine Part |
