Description
Overview:

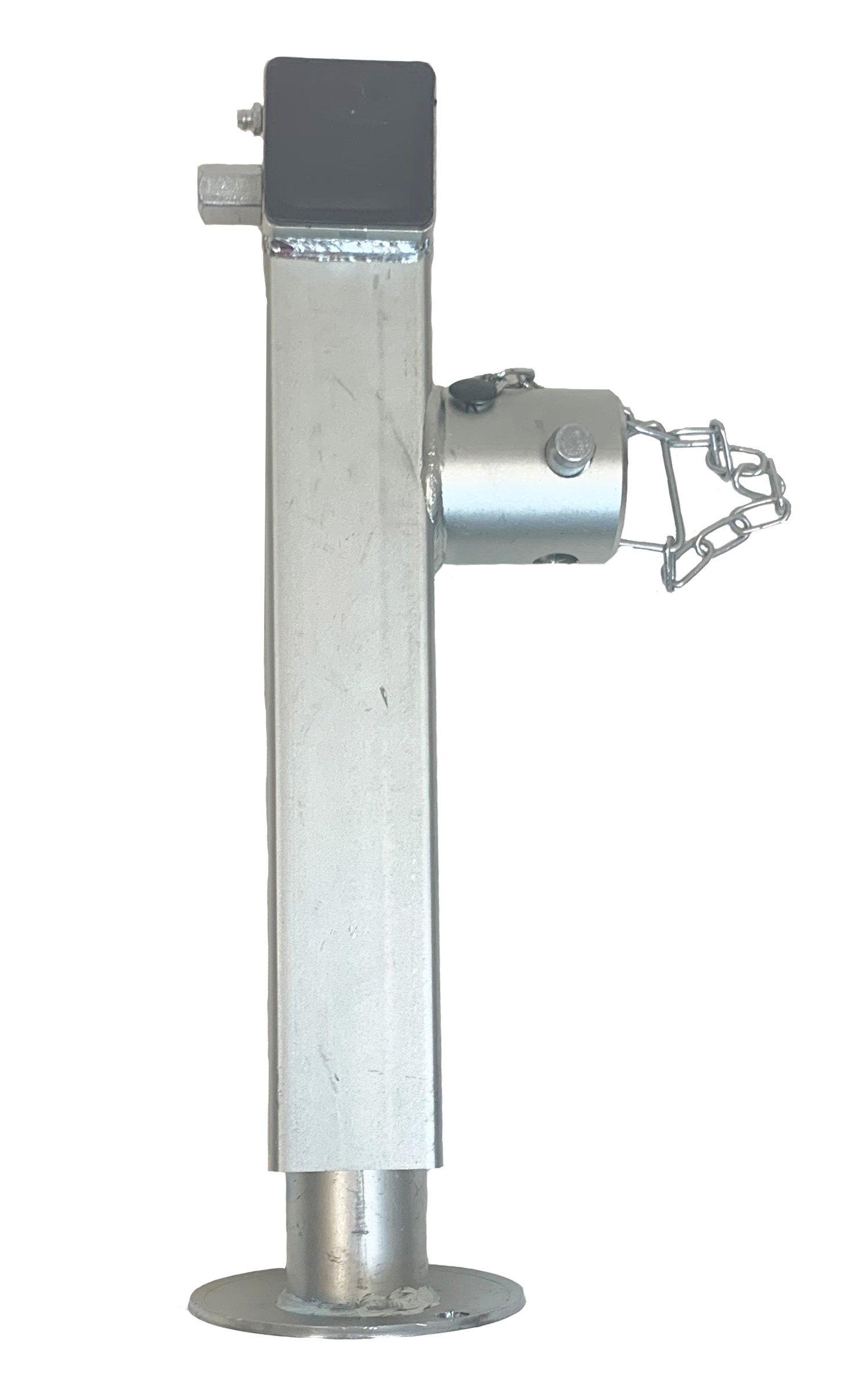

60mm Rotating Trailer Support Leg, 415-655mm, 1300kg, No Handle (MPN 763 908) is a square-section prop stand for keeping unhitched trailers level and steady during parking, loading and unloading. The 60mm (2.36") square outer tube and 120mm (4.72") foot provide stable support, with an adjustment range of 415-655mm (16.3-25.8"). It rotates 90° and locks for travel. Wound using a 19mm A/F socket; no integral handle. Clamp not supplied; mounts via an 80×80mm (3.15×3.15") plate with 13mm (0.51") holes; order any bracket separately. Typical use: levelling welfare units, catering and exhibition trailers. Not for manoeuvring.
Specification:
- Outer tube section: 60mm square (2.36" square)
- Adjustment range: 415mm to 655mm (16.3" to 25.8")
- L1 dimension: 280mm (11.0")
- Maximum static load: 1300kg (approx. 2,866 lb)
- Foot diameter: 120mm (4.72")
- Mounting plate: 80mm x 80mm (3.15" x 3.15") with 13mm diameter fixing holes (0.51")
- Rotates through 90 degrees and locks in position
- Can be wound with a 19mm A/F socket
- Grease nipple for gear lubrication
- 300 hour red rust salt spray resistance
- Finish: clear zinc plate
- Handle: no integral handle; wound with a socket. Supplied with a chain and pin retainer.
- Typical use: levelling welfare units, catering and exhibition trailers
Fitment:
- Equivalent to AL-KO 1731091
- Equivalent to Winterhoff W3520
- Sister product: the integral-handle version of this leg is L&S 763 979 (MP4345)
Also known as:
Trailer leg, support stand, prop leg, landing leg, drop leg, stabiliser leg, trailer support tube, MP4341
Product Specifications
| L&S Part No. | 763 908 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - Adjustable length from 415 mm to 655 mm - Supports up to 1300 kg static load - 60 mm diameter outer tube section - Rotates 90° and locks for stowage - Clear zinc plating resists corrosion |
