Description
Overview:

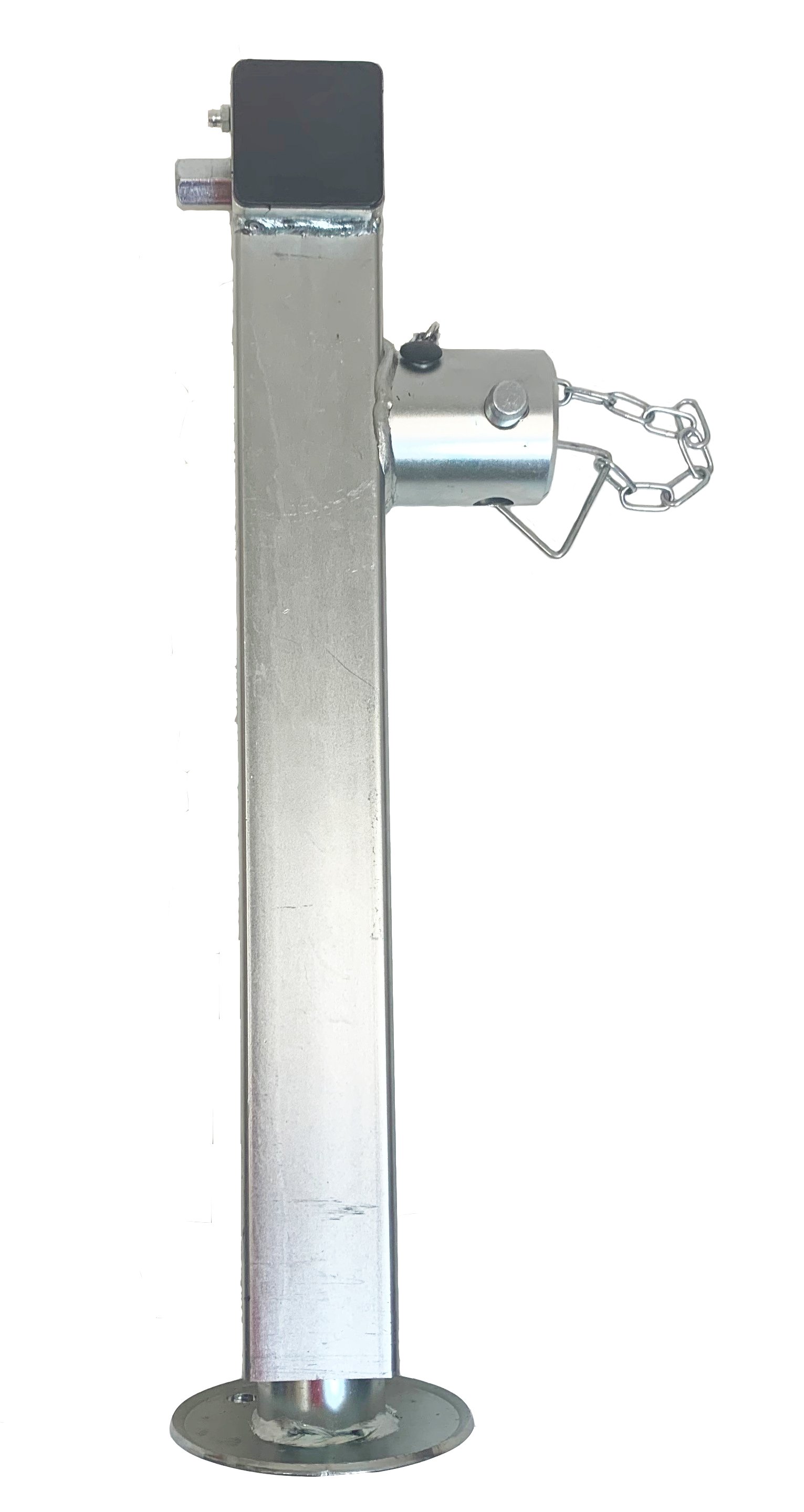

The 60mm Rotating Trailer Support Leg, 535-900mm, 1300kg (MPN 763 994) is a heavy-duty prop stand for keeping an unhitched trailer level and steady while parked, loaded or unloaded. It uses a 60mm outer tube with an adjustment range of 535mm to 900mm to suit uneven ground and site conditions. A load-spreading foot provides stable ground contact. The leg is a rotating type for deployment and stowage on the trailer bracket. Clamp is not supplied; order a suitable 60mm clamp separately. For static support only; not a jockey wheel and not for manoeuvring.
Specification:
- Outer tube section: 60mm
- Adjustment range: 535mm to 900mm
- Maximum static load: 1300kg
- Typical use: levelling welfare units, catering and exhibition trailers
Fitment:
- Longer-travel alternative to L&S 763 908 and 763 979 (415-655mm)
Also known as:
- Trailer leg
- Support stand
- Prop leg
- Landing leg
- Drop leg
- Stabiliser leg
- Trailer support tube
Product Specifications
| L&S Part No. | 763 994 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Supports up to 1300 kg static load - Telescopic length adjusts from 535 mm to 900 mm - 60 mm outer tube diameter - Rotates 90° and locks for stowage or deployment - Zinc-plated for 300-hour corrosion resistance |
