Description
Overview:

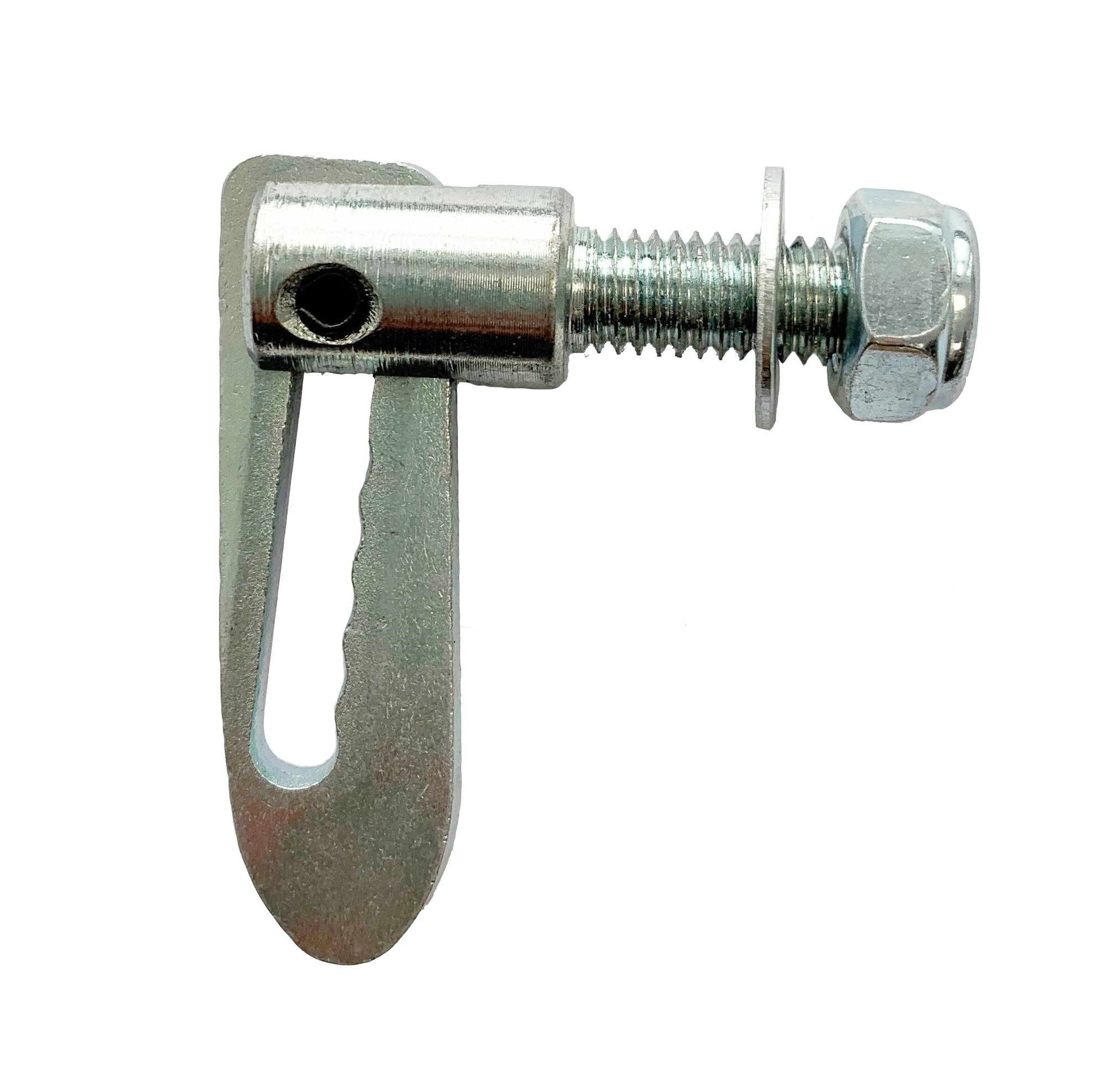

This drop catch (MPN 763 077) is a compact, bolt-on latch used to secure ramps, tailgates and doors on trailers and similar bodywork. It features a 12.9 mm (0.51") catch section and an M8 threaded stem with 38 mm (1.50") of thread for simple installation and adjustment. Supplied complete with an M8 nyloc nut and a plain washer, it is ready to fit to brackets or keepers on trailer bodies and plant carriers where a positive mechanical catch is required. The zinc plated finish provides corrosion protection suitable for road-going trailers and general transport use. Key drawing dimensions are A 57 mm (2.24"), B 50 mm (1.97"), C 12.9 mm (0.51"), D 38 mm (1.50") and E 6 mm (0.24"), allowing quick comparison with existing hardware and mounting points.
Key Features:
- 12.9 mm (0.51") drop catch section for positive engagement
- M8 thread (approx. 5/16") with 38 mm (1.50") threaded length for mounting and adjustment
- Supplied with M8 nyloc nut and plain washer for secure, vibration-resistant fixing
- Zinc plated finish for corrosion resistance in road and site environments
- Bolt-on design for straightforward installation to brackets or keepers
- Drawing dimensions: A 57 mm (2.24"), B 50 mm (1.97"), C 12.9 mm (0.51"), D 38 mm (1.50"), E 6 mm (0.24")
- Suited to repeated use on plant, utility and general-duty trailers
Typical Applications:
Used to secure trailer ramps during transport, to latch tailgates and side or rear doors, and to hold access panels closed on plant transporters, general-duty trailers and utility bodies. Common on trailer body fittings where a simple gravity-type latch is required for reliable retention with easy manual release.
Also known as:
Drop latch; Ramp catch; Tailgate catch; Door catch; M8 drop catch; Maypole part number MP8365B
Product Specifications
| L&S Part No. | 763 077 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
