Description
Overview:

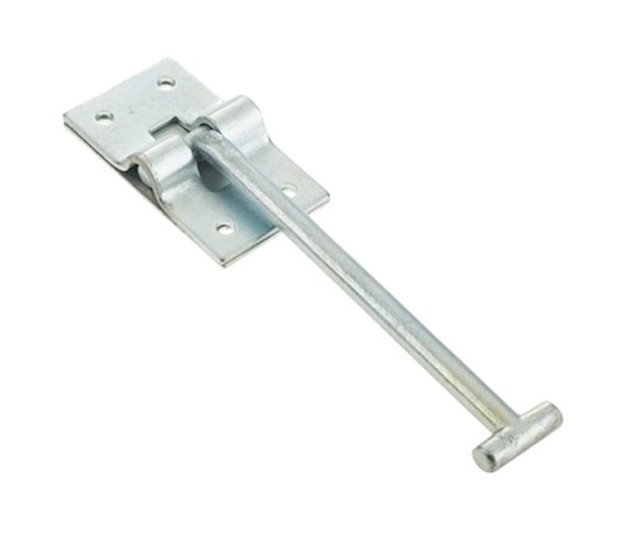

This is a T-Bar Door Retainer (MPN 800 1047) designed to hold swing doors securely in the open position on commercial bodies and enclosures. The main body is pressed from mild steel and finished in zinc plating for durable corrosion protection, while the T-bar itself is a robust malleable iron component measuring 152 mm (approximately 6 in). It is suited to frequent use on vehicle and site equipment doors where a positive hold-open action is required. Typical installations include truck and trailer body doors, plant and equipment enclosures, site containers and modular buildings. The unit features 5.5 mm (0.22 in) fixing holes to suit common fasteners and is intended to engage with matching catch plates from the same system for reliable retention. Dimensions from the manufacturer provide a compact footprint that is easy to position on bodywork while delivering a secure latch action in service.
Key Features:
- Pressed mild steel body for strength and durability
- Zinc plated finish for corrosion resistance in fleet and site environments
- Malleable iron T-bar, 152 mm (6 in) length
- Length: 78.5 mm (3.09 in) per manufacturer specification
- Width: 44 mm (1.73 in)
- Fixing holes: Ø5.5 mm (0.22 in)
- Compatible with corresponding catch plates from the same system (e.g. refs 0553/001 and 0554/001)
- Suited to heavy-duty use on commercial vehicle bodies and static enclosures
Typical Applications:
Used on trucks and trailers for rear or side swing doors, on site and storage containers, and on modular or portable buildings. Suitable wherever a robust external door retainer is needed to hold doors open safely during loading, unloading or access operations.
Also known as:
T-bar door stay; Door hold-back; Door retainer catch; Truck door holder; Bar-type door retainer
Product Specifications
| L&S Part No. | 800 1047 |
|---|---|
| Unit of Sale | 1 |
