Description
Overview:

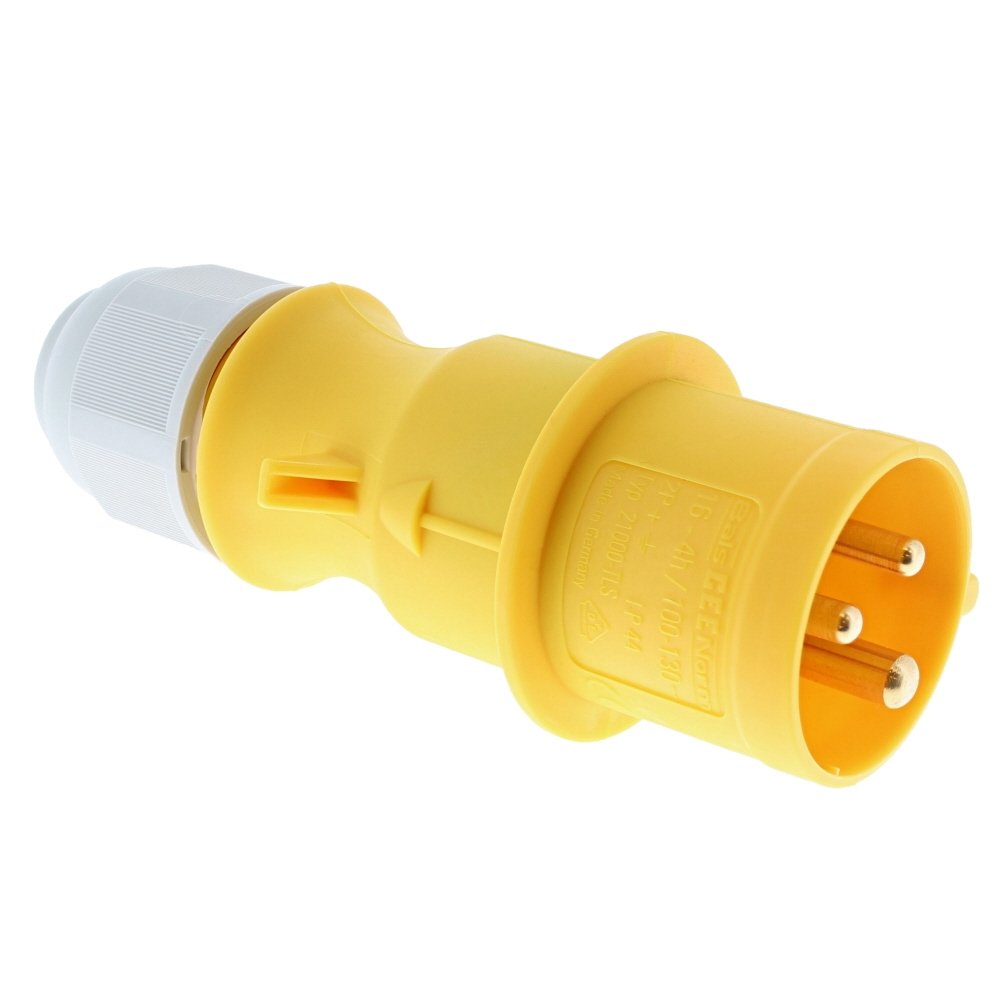

The 110 Volt, 16 Amp Yellow Low Voltage 'BALS' Cable Plug is a tough, site-ready connector for temporary power on construction sites, workshops and factories. Built by Bals with a high‐visibility yellow polyamide housing and solid brass contacts, it provides dependable conductivity and mechanical strength. The one‐piece body and multi‐grip cable gland with gasket protect terminations and accept cable diameters from 8 mm to 18 mm. Rated at 110 V, 16 A, 50/60 Hz with 2P+E (3p) screw terminals and a 4h earth position used on UK 110 V site systems, it mates with standard yellow 16 A sockets. With an IP44 rating for splash protection, it is suitable for outdoor use when correctly installed. Ideal for power tools, site lighting, mixers and distribution leads.
Key Features:
- 110 V, 16 A rating for UK site power; 50/60 Hz operation
- 2P+E (3p) screw terminals with 4h earth position for correct mating
- Robust polyamide housing in high‐visibility yellow for easy identification
- Brass contacts for low resistance and reliable connection under load
- IP44 protection against splashed water and solid particles when assembled
- Multi‐grip cable gland with gasket and integrated strain relief
- One‐piece body accepts 8-18 mm cable sizes for flexible use on leads
- Secure screw terminations for straightforward fitting and maintenance
- Designed for frequent connect/disconnect in demanding environments
- Compatible with standard 110 V 16 A yellow site sockets and connectors
Typical Applications:
Temporary power connections on building sites, workshops and maintenance areas, including breakers, SDS drills, circular saws, mixers, lighting strings, site transformers, dehumidifiers, extension leads and portable distribution boards. Suitable for generators with 110 V outlets and site power systems where a rugged, splash‐resistant plug is required.
Also known as:
16 A yellow site plug, 2P+E 4h plug, CEE/CEEform plug, BS EN 60309‐style plug, industrial power connector, 110 V commando‐style plug, low‐voltage site connector.
Alternate Part Numbers:
21000-TLS, 21000TLS
Product Specifications
| L&S Part No. | 212 002 |
|---|---|
| Manufacturer | Bals |
| OEM No. | 21000-TLS |
| Unit of Sale | 1 |
| Size | 110 Volt, 16 Amp |
