Description
Overview:

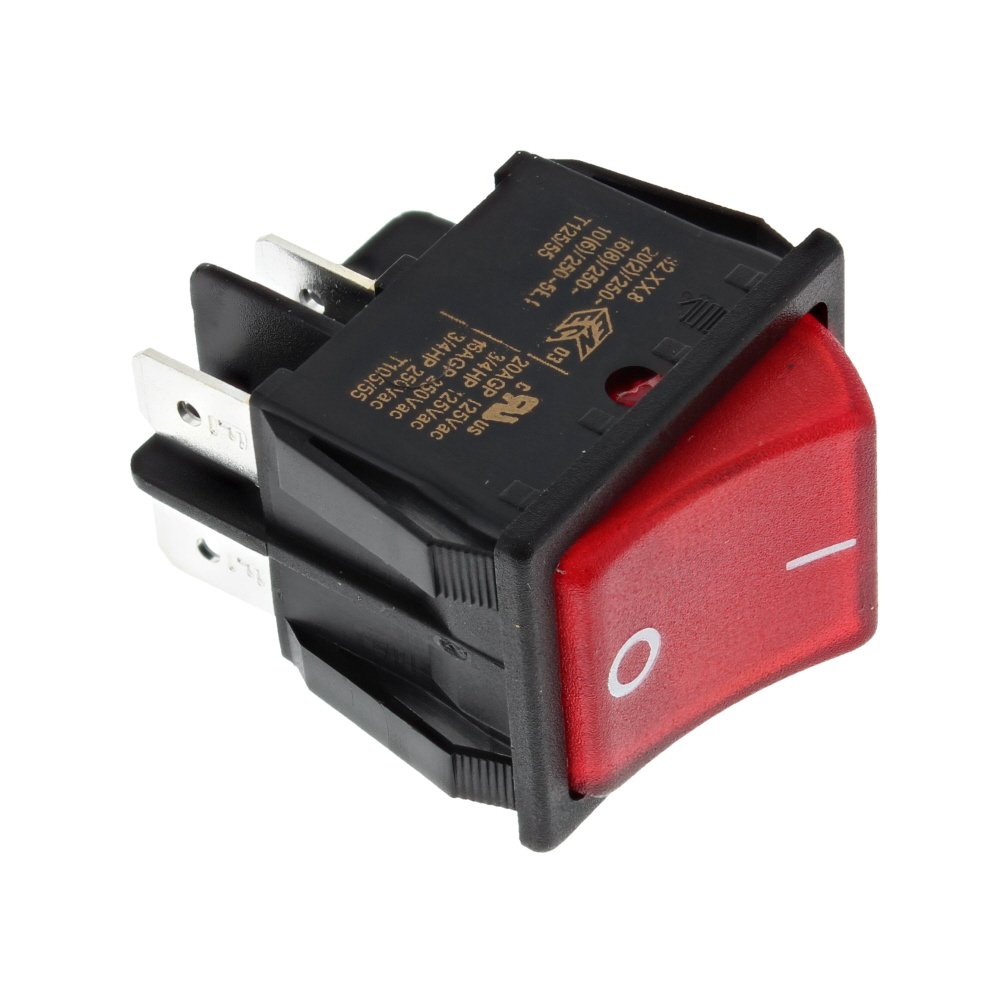

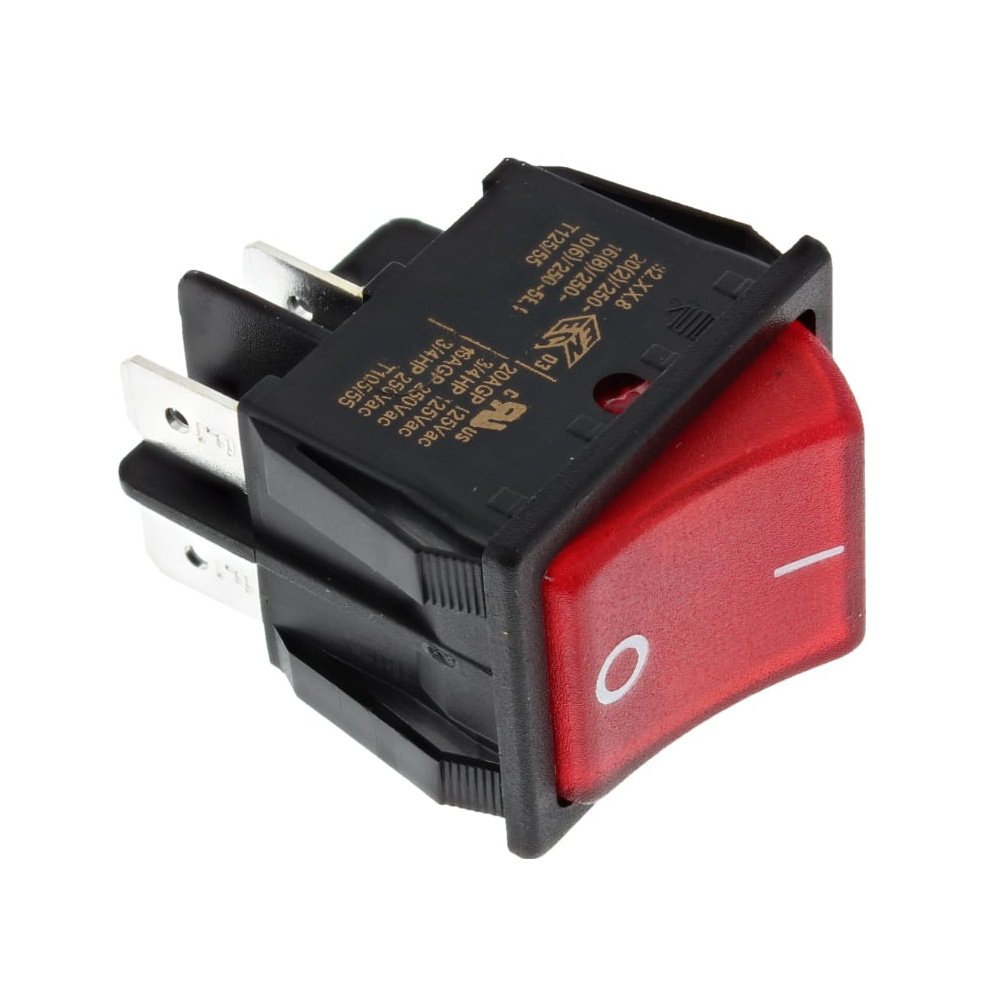

This 16A/250V on/off rocker switch is a compact, panel‐mount power control for a wide range of electrical equipment used in construction and garden settings. It has a durable black plastic housing with a red illuminated lens for clear status indication. The mechanism is double‐pole with two positions (on/off), so it switches two separate conductors at the same time for safer isolation in mains applications. Four terminals provide straightforward wiring for independent circuits. The body measures 31 x 25 x 35 mm (approx. 1.2 x 1.0 x 1.4 in), and it fits a rectangular panel cut‐out of 27 x 21 mm (approx. 1.1 x 0.8 in). Rated at 16A 250VAC and 20A 125VAC, it offers reliable service in control panels for tools and machines. Genuine part.
Key Features:
- Genuine part for dependable quality and fit
- Double‐pole, two‐position on/off action isolates two circuits for safety
- Rated 16A at 250VAC and 20A at 125VAC for versatile mains use
- Red illuminated lens improves visibility of switch status
- 4‐terminal layout supports simple, secure connections
- Panel cut‐out: 27 x 21 mm (approx. 1.1 x 0.8 in) for easy mounting
- Overall size: 31 x 25 x 35 mm (approx. 1.2 x 1.0 x 1.4 in) for compact installations
- Robust plastic casing suited to workshop and site environments
- Suitable for replacement or new builds in compatible control panels
- Easy to install and replace with standard panel hardware
Typical Applications:
On/off control in machinery and equipment such as small plant control panels, compressors, bench tools, pumps, fans, charging stations, lawn and garden equipment, and general switch panels. Ideal where clear indication and reliable double‐pole isolation are required on 230V mains systems when fitted in suitable enclosures.
Also known as:
DPST rocker switch, illuminated rocker switch, 4‐pin rocker switch, panel‐mount rocker, double‐pole on/off switch, 2‐position on/off rocker, mains rocker switch.
Product Specifications
| L&S Part No. | 355 1916 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
