Description
Overview:

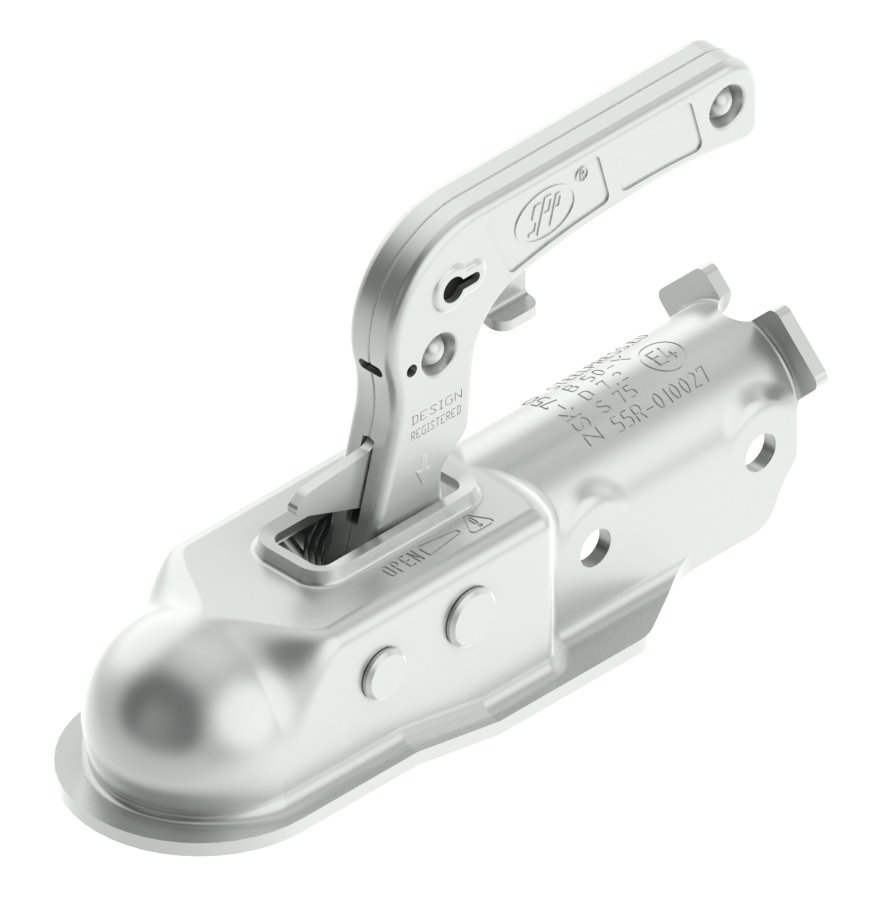

This pressed steel trailer coupling for 35 mm round tube drawbars (MPN 763 788) is a heavy-duty coupling head designed for light plant, utility and general-duty trailers using a 35 mm (approx. 1 3/8 in) round drawbar. The body is formed from thick-gauge pressed steel with a zinc-plated finish for corrosion resistance in fleet and site use. It mounts to the drawbar using two side-fixing bolts and provides a secure, positive latch with an integral wear and correct-attachment indicator for routine visual checks. Rated to 1700 kg (1.7 tonne), it is approved to UNECE R55 (D15.8, S100) for road use. Side mounting hole centres are 54-57 mm (approx. 2.13-2.24 in). The coupling is supplied without a lock but accepts the optional Maypole lock MP478B and can be used with the soft dock MP1940. It is also suitable as a replacement for AL-KO AK160A where specifications match.
Key Features:
- For 35 mm (approx. 1 3/8 in) round tube drawbars
- 1700 kg (1.7 t) application rating
- Heavy-duty pressed steel body with zinc-plated finish
- Side mounting on 54-57 mm (approx. 2.13-2.24 in) hole centres
- Secures with 2 x M12 bolts, minimum grade 10.9 high-tensile (not included)
- UNECE R55 approved (D15.8, S100)
- Integral wear and correct attachment indicator
- Supplied without lock; accepts optional lock MP478B
- Can be fitted with soft dock MP1940
- Suitable replacement for AL-KO AK160A (check dimensions and rating)
Typical Applications:
Used on small plant trailers, general-duty goods trailers, utility trailers and similar equipment that employ a 35 mm round tube drawbar and require a 1700 kg rated coupling. Commonly used for fleet maintenance and replacement work, including as a direct swap for AL-KO AK160A where the mounting and performance requirements match. Suitable for side-bolt installation with two M12 grade 10.9 fixings on 54-57 mm centres.
Also known as:
Trailer Hitch Head, Towball Coupling Head, 35 mm Round Drawbar Hitch, Replacement for AL-KO AK160A, Maypole part number MP1943
Product Specifications
| L&S Part No. | 763 788 |
|---|---|
| Part Type | Genuine Part |
