Description
Overview:

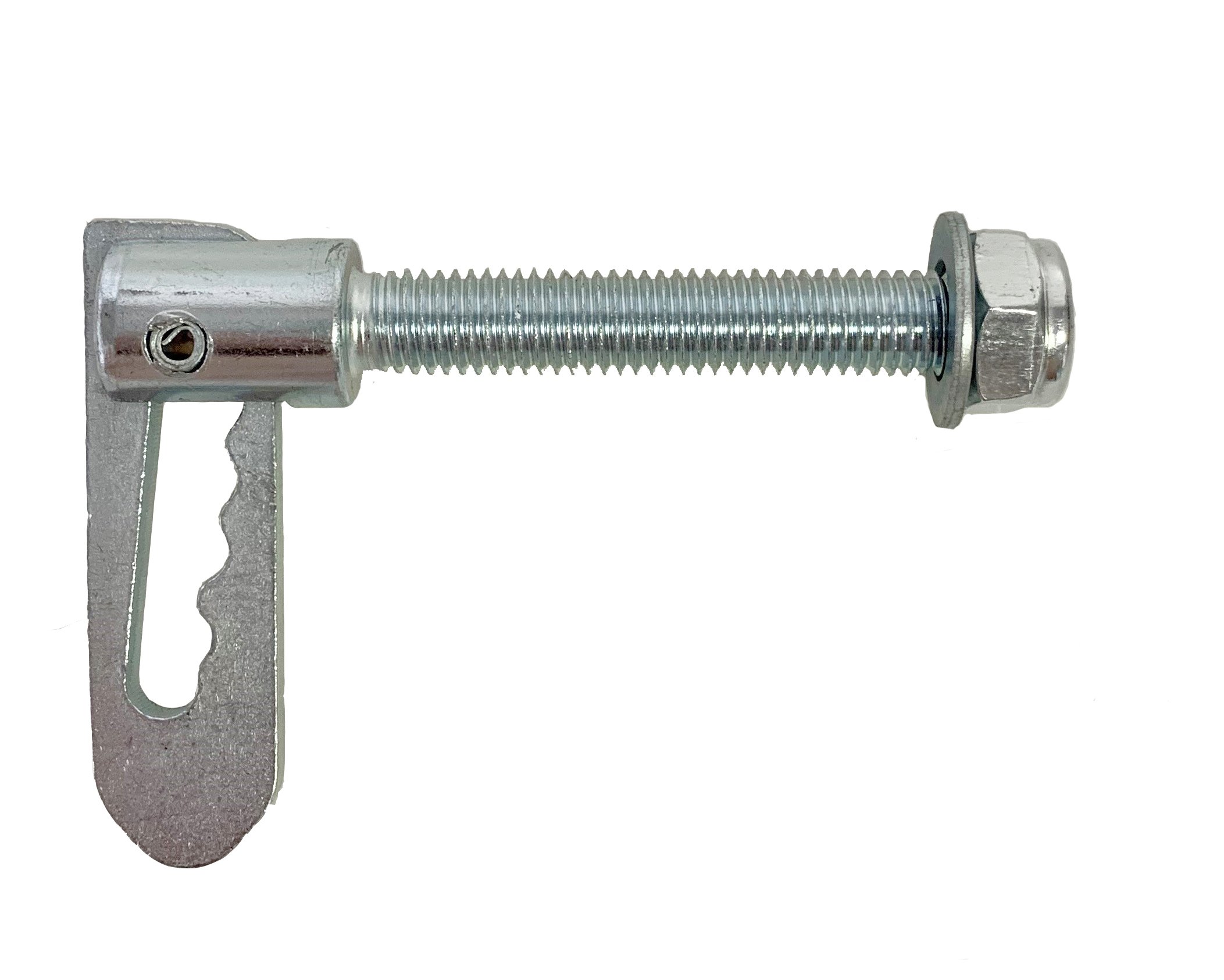

This threaded drop catch, M12 x 75mm (MPN 763 075), is a robust latch pin used to secure moving panels on trailers and similar bodies. The catch features an 18.9mm diameter pin for positive engagement with a mating bracket or keep, and a 75mm long M12 threaded section for straightforward through-panel or bracket mounting. A zinc-plated finish provides surface protection in typical road and site conditions. Supplied complete with an M12 nyloc nut and flat washer, it is ready to install without additional fixings. Commonly used to hold ramps in the upright position, lock tailgates closed, or retain access doors, this is a practical choice for general-purpose trailers, plant and equipment carriers, box bodies and service vans. Dimensions are provided to assist with replacement and new-build fit-outs where clearances are critical.
Key Features:
- 18.9mm pin diameter (approx. 0.74") for a solid, positive catch
- M12 x 75mm thread (approx. 2.95") for through-bolt mounting
- Zinc-plated finish for added corrosion resistance
- Supplied with M12 nyloc nut and flat washer
- Overall length A: 101.5mm (approx. 4.00")
- Centre-to-end B: 71mm (approx. 2.80")
- Pin/body diameter C: 18.9mm (approx. 0.74")
- Thread length D: 75mm (approx. 2.95")
- Plate/stop thickness E: 6mm (approx. 0.24")
- Thread size: M12 (Ø M12)
Typical Applications:
Used to secure trailer ramps, tailgates and access doors on general-duty trailers, plant and machinery transporters, utility and box bodies, and service vehicles. Suitable for new installations or as a like-for-like replacement where an 18.9mm catch with an M12 x 75mm threaded section is required.
Also known as:
Threaded Drop Bolt
Ramp Catch / Ramp Latch Pin
Tailgate Catch / Tailgate Drop Latch
M12 Drop Catch
Maypole part number MP8385B
Product Specifications
| L&S Part No. | 763 075 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
