Description
Overview:

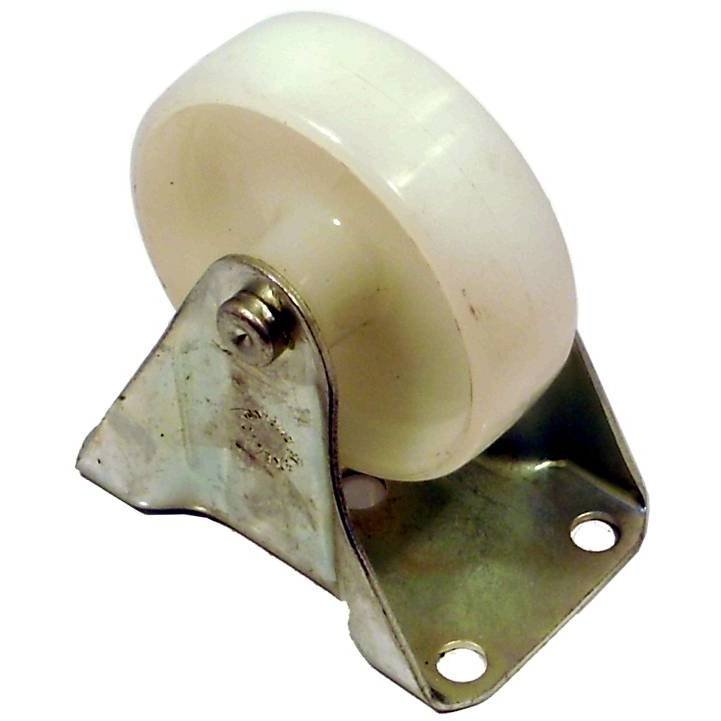

The 65mm Nylon Wheel Castor Fixed Type with Top Plate 112 x 50mm is a heavy‐duty fixed castor designed for straightforward straight-line movement on workshop and site equipment. It uses a hard-wearing white nylon wheel to provide low rolling resistance and reliable load support on smooth, solid floors. With a 65mm (2.56 inches) diameter wheel and a compact fitted height of 82mm (3.23 inches), it keeps equipment stable and easy to handle in tight spaces. The rectangular top plate measures 112 x 50mm (4.41 x 1.97 inches) for secure bolting to frames. Rated at 122kg (269 lb), it suits trolleys, benches, cabinets, generators, pressure washers, and other machinery. Manufacturer Part Number (MPN): 893 063.
Key Features:
- Fixed bracket for positive straight tracking and controlled manoeuvring
- Durable nylon wheel for long service life and smooth rolling on flat floors
- Load capacity 122kg (269 lb) to handle demanding industrial and workshop use
- Wheel diameter 65mm (2.56 inches) for a compact footprint
- Tread width 28mm (1.10 inches) for stable contact and even load distribution
- Fitted height 82mm (3.23 inches) keeps equipment low and steady
- Top plate 112 x 50mm (4.41 x 1.97 inches) for robust, plate-mounted fixing
- Offset 25mm (0.98 inches) provides clearance for frame and fasteners
- Nylon construction offers good resistance to many oils and cleaning chemicals
- Simple to replace like-for-like on existing frames using standard fixings (check hole pattern)
Typical Applications:
Suitable for service carts, trolleys, workbenches, cabinets, mobile machinery bases, tool chests, generators, compressors, and cleaning or pressure-washing units. Performs best on smooth, hard surfaces such as concrete, epoxy-coated floors, and factory tiles where nylon's low rolling resistance helps reduce pushing effort while maintaining directional stability with the fixed bracket.
Also known as:
Fixed castor wheel, rigid castor, fixed caster, rigid caster, plate-mounted nylon wheel, trolley wheel, equipment roller, 65mm nylon roller, fixed wheel, industrial castor, machinery wheel, fixed bracket wheel, straight-line castor, plate castor 112 x 50mm.
Product Specifications
L&S Part No. | 893 063 |
---|---|
Unit of Sale | 1 |
Color | White |
