Description
Overview:

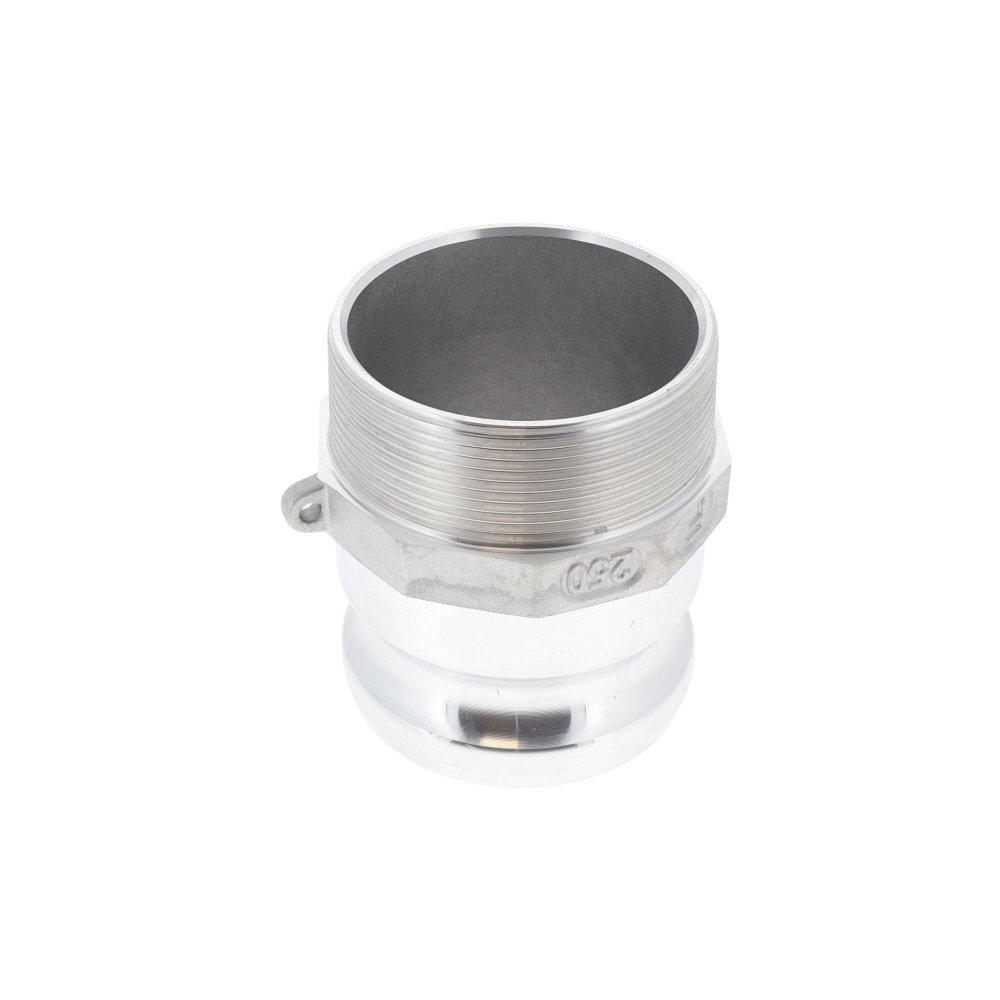

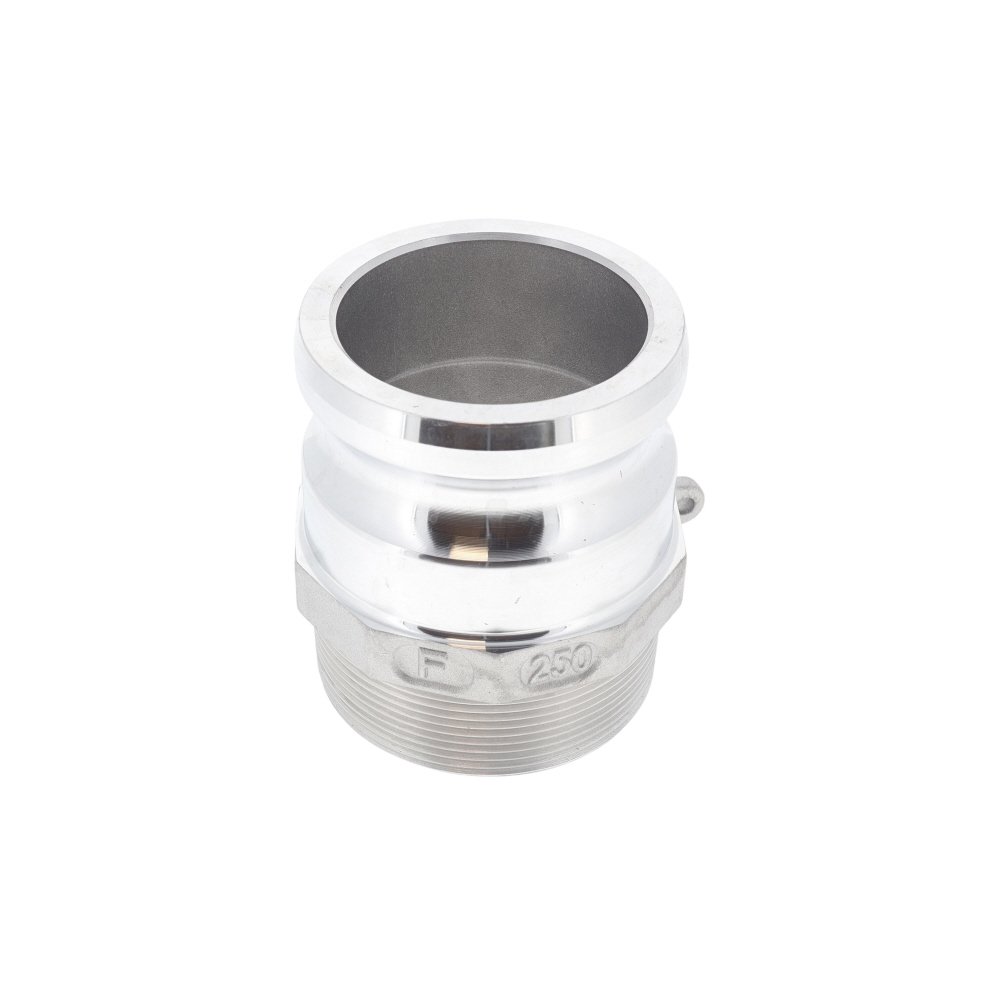

This 2.1/2" Type F Camlock x BSPT Male Aluminium fitting is a quick-connect adapter for fluid transfer lines on hoses and pipework. One end is a Type F cam and groove male adapter sized 2.1/2" (63.5 mm) that locks into a matching female camlock coupler. The other end provides a 2.1/2" BSPT male tapered pipe thread for connecting to threaded equipment, valves, or manifolds. Constructed from cast aluminium alloy, it offers low weight and good corrosion resistance for general-duty service. The cam-and-groove system enables rapid coupling and uncoupling without tools; sealing is achieved by the gasket in the mating female coupler. Suitable for water handling and compatible industrial fluids across agriculture, construction, maintenance, and general industrial applications where reliable, repeatable connections are required.
Key Features:
- Size: 2.1/2" (63.5 mm) camlock male adapter
- Thread: 2.1/2" BSPT male tapered thread
- Type F cam and groove configuration
- Material: lightweight cast aluminium alloy body
- Connects to female couplers B, C, D and DC
- Tool-free cam and groove connection
- Tapered thread seals with PTFE tape or sealant
- Suitable for water and compatible industrial fluids
- For hoses, pumps, manifolds, and tank outlets
- Interchangeable with industry-standard camlock components
- Corrosion-resistant for general-duty service
- Not for compressed air, steam, or LPG
Typical Applications:
Used on mobile and fixed transfer lines for site pumps, irrigation systems, wash-down setups, tank connections, plant maintenance, and general industrial process lines. Provides a 2.1/2" cam and groove interface to a 2.1/2" BSPT threaded connection where fast changeovers, reliable sealing with a matching female coupler, and lightweight aluminium construction are required.
Also known as:
Cam and groove Type F male adapter, 2.1/2" camlock to 2.1/2" BSPT male, aluminium camlock fitting, Type F male BSPT, camlock male nipple, camlock adapter with male taper thread, 2.5" camlock adapter, 2.1/2" BSPT aluminium male fitting.
Product Specifications
| L&S Part No. | 063 053 |
|---|---|
| Unit of Sale | 1 |
