Description
Overview:

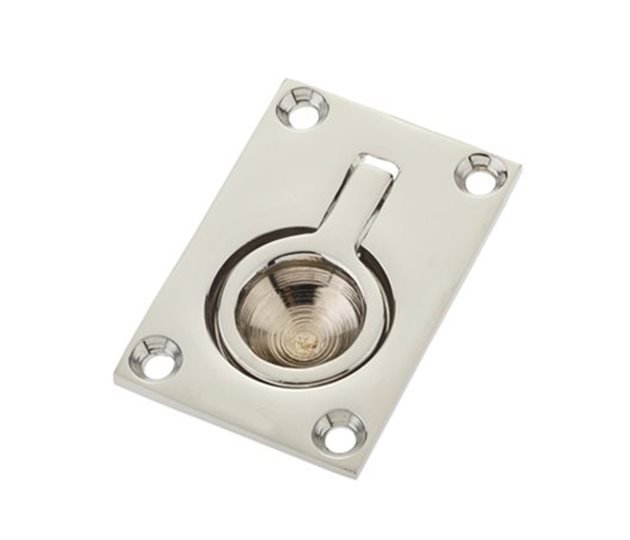

This recessed floor trap finger pull ring (MPN 800 1013) is a compact, low‐profile lifting point designed for flush mounting in floor hatches and access panels. The body is zinc die‐cast for durability, with a polished chrome plated finish for a clean appearance and added corrosion resistance. The spring‐loaded ring sits flush when not in use and lifts easily to provide a secure handhold for opening trapdoors and inspection covers. Sized at 62 mm x 43 mm (approximately 2 7/16 in x 1 11/16 in) with an overall thickness of 14 mm (about 9/16 in), it suits confined installations where a smooth, snag‐free surface is required. Typical use is on commercial vehicle floors, truck and lorry bodies, plant transporters, service vans, and trailer decks where reliable access to under‐floor storage, lash‐down points, or service compartments is needed.
Key Features:
- Zinc die‐cast body for strength and dimensional stability
- Polished chrome plated finish for wear and corrosion resistance
- Recessed, spring‐loaded ring sits flush when not in use
- Overall length: 62 mm (2 7/16 in)
- Overall width: 43 mm (1 11/16 in)
- Overall thickness/depth: 14 mm (9/16 in approx.)
- Countersunk fixing holes: Ø5 mm (3/16 in) for flush screw heads
- Low‐profile design helps prevent snagging on floors and decks
- Suitable for use in timber or metal floor panels and trapdoors
- Simple, robust construction for frequent access operations
Typical Applications:
Used as a flush pull ring on floor traps, inspection hatches and access panels in box vans, dropside and curtain‐sider bodies, plant and machinery transporters, utility/service vehicles, and general trailers. Commonly fitted to deck boards, storage lockers, tool compartments and service access covers where a neat, recessed lifting point is required without obstructing cargo movement.
Also known as:
Flush ring pull, recessed ring handle, trapdoor ring, floor hatch pull, lift ring, drop ring handle
Product Specifications
| L&S Part No. | 800 1013 |
|---|---|
| Unit of Sale | 1 |
