Description
Overview:

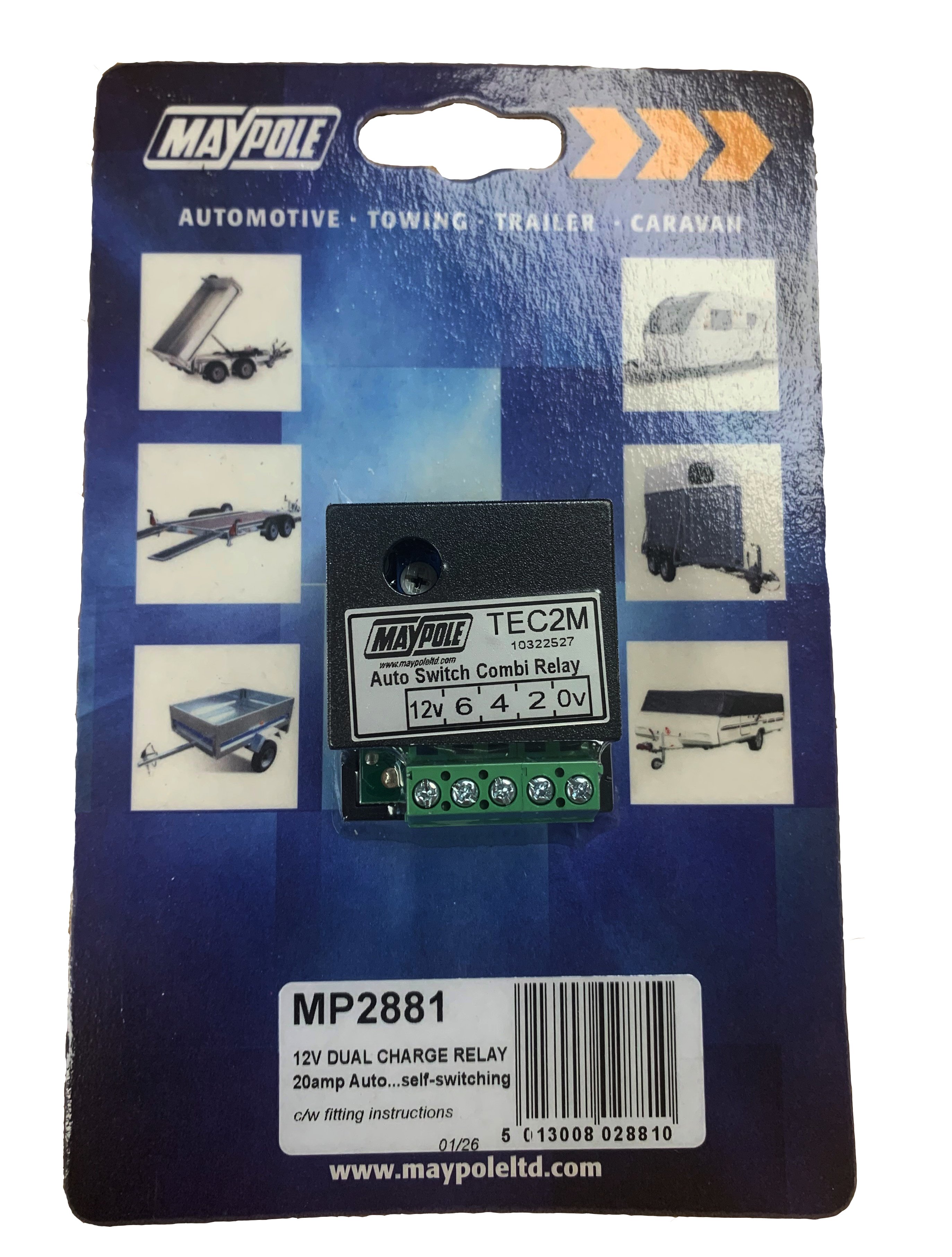

This 12V 20A Self-Switching Dual Charge Relay (MPN 763 466) is designed for caravan and towing electrics to manage split charging and fridge power safely and efficiently. It automatically monitors system voltage and switches the supply from the tow vehicle to the caravan, charging the leisure battery and/or powering the fridge while the engine is running. When the engine is off, the relay isolates the caravan load to protect the vehicle's starter battery from discharge. The unit is a combination caravan relay for 12S supplementary electrics and requires no separate ignition or signal wire, simplifying installation. It features an adjustable, factory-set voltage trip with narrow hysteresis for stable operation, low voltage drop for efficient charging, line drop compensation, and over-temperature protection. Made in the UK and supplied in a retail display pack, it is suitable for professional towing setups and caravan electrical systems where a dependable 20A continuous switching capability is needed.
Key Features:
- 12V operation for 12S supplementary towing electrics
- 20A continuous switching capacity (when available from vehicle alternator/battery)
- Automatic voltage monitoring; no separate ignition/signal wire required
- Protects vehicle starter battery by disconnecting when engine is off or voltage is low
- Adjustable, factory-set voltage trip with narrow hysteresis for stable switching
- Line voltage drop compensation for reliable performance
- Low voltage drop, around 0.1V at rated output
- Over-temperature protection
- Made in the UK
- Supplied in retail display packaging
- Charges caravan leisure battery and/or powers caravan fridge while driving
Typical Applications:
Installed in towing electrics between the tow vehicle and caravan on 12S systems to control fridge and leisure battery charging. Commonly used on caravans and trailer-based living quarters where an automatic split-charge function is required without running an extra ignition feed. Maypole reference MP2881, with bulk-pack option MP2881B for trade installations.
Also known as:
Voltage Sensing Relay (VSR)
Split Charge Relay
12S Fridge/Charge Relay
Caravan Combination Relay
Maypole part number MP2881
MP2881B (bulk pack)
Product Specifications
| L&S Part No. | 763 466 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
