Description
Overview:

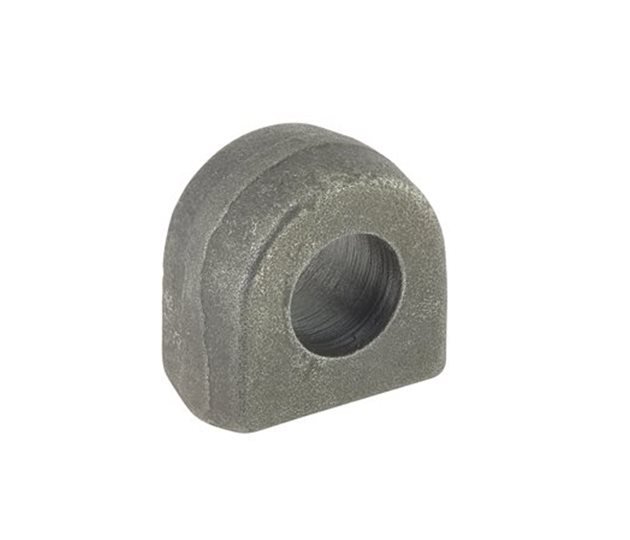

This Tailboard Locking Bar Bracket, Weld-On, 20mm Bar (MPN 800 1244) is a forged steel bracket designed to locate and retain a 20 mm (0.79 in) tailboard locking bar on commercial bodies. Made from forged steel for strength and durability, it is supplied in self colour to allow clean welding to the tailboard, body side or chassis member, and can be painted or coated after installation. The compact profile suits new fabrications and repairs where a robust anchor point for the locking bar is required. Typical dimensions are 45 mm (1.77 in) length, 26 mm (1.02 in) width and 45 mm (1.77 in) height, providing a solid seating for the bar without taking excessive space on the tailgate or frame. Intended for use on tippers and other commercial vehicles, it is also suitable for trailers and industrial bodywork where a 20 mm locking bar system is used.
Key Features:
- Forged steel construction for high strength and service life
- Self colour finish for straightforward welding and post-weld coating
- Weld-on fixing for permanent, rigid installation
- Suits Ø20 mm (0.79 in) locking bar systems
- Dimensions: length 45 mm (1.77 in), width 26 mm (1.02 in), height 45 mm (1.77 in)
- Compact bracket profile for tailboard and body side mounting
- Suitable for use on commercial vehicles and heavy-duty bodywork
- Matches common tailboard locking layouts found on tippers and trailers
- Ideal for refurbishment or new fabrication of tailboard locking arrangements
Typical Applications:
Used as the weld-on bracket for the tailboard locking bar on tippers, rigid trucks, plant and agricultural trailers, skip bodies and balers. Positioned on the tailgate or adjoining frame to guide and secure the 20 mm bar within the tailboard locking mechanism.
Also known as:
Tailboard eye bracket, locking bar eye, weld-on eye bracket, tailgate bar bracket, tipper tailgate latch bracket, tailboard latch eye
Product Specifications
| L&S Part No. | 800 1244 |
|---|---|
| Unit of Sale | 1 |
