Description
Overview:

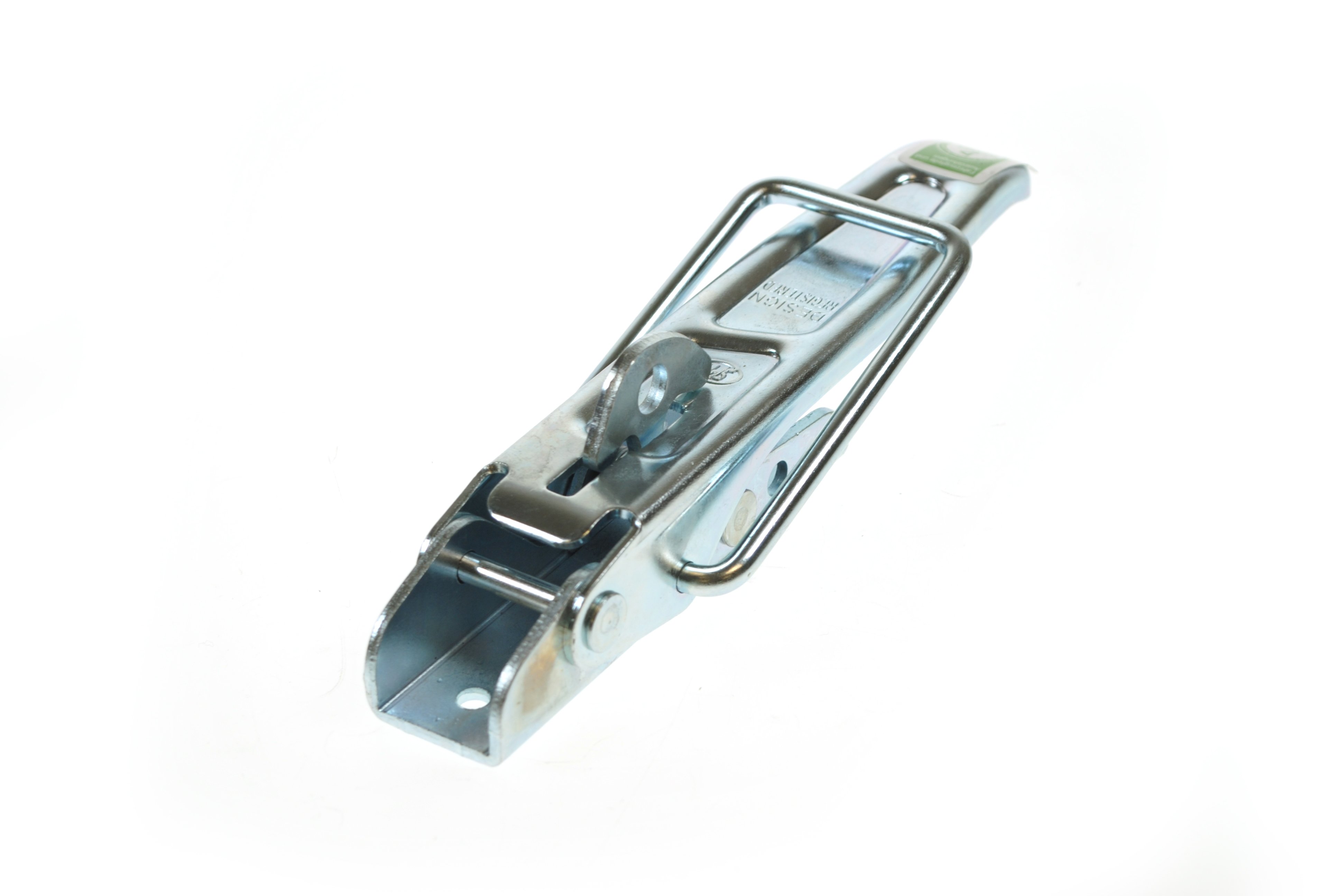

The Padlockable Overcentre Catch (MPN 763 234) is a robust latch designed for securing doors, tailgates, lids and panels on trailers, plant bodies and service vehicles. It uses an over-centre toggle action to clamp and hold parts closed, and can be padlocked for added security on site or in transit. The unit has a zinc plated finish for corrosion resistance in outdoor use. Key drawing dimensions are A = 210 mm (8.27 in) overall length, B = 37 mm (1.46 in) width, and D = 100 mm (3.94 in). Two 5 mm (0.20 in) holes provide for locking. The catch is rated to a 490 kg capacity. It is suitable for pairing with the corresponding Maypole catch/striker plate MP81402B (striker not included). Padlocks are not included.
Key Features:
- Padlockable overcentre latch for secure closure (padlock not included)
- Zinc plated finish for corrosion resistance
- Rated capacity: 490 kg
- Dimensions per drawing: A 210 mm (8.27 in), B 37 mm (1.46 in), D 100 mm (3.94 in)
- Two locking holes Ø 5 mm (0.20 in)
- Compatible with matching catch/striker MP81402B
- Quick toggle action for positive clamping and release
Typical Applications:
Used to fasten trailer sideboards, tailgates and lids; plant and machinery access panels; site boxes and tool lockers; van and pickup bed storage enclosures; and general body fittings where a clamp-style latch with padlock security is required. Common in light commercial trailers, plant transporters and service vehicles. Designed to work with the Maypole striker plate MP81402B for a complete latch and catch set.
Also known as:
Toggle latch; Draw latch; Over-centre latch; Padlockable toggle catch; Maypole part number MP81301B
Product Specifications
| L&S Part No. | 763 234 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Padlockable latch for secure closure (padlock not included) - Zinc plated for corrosion resistance - Rated capacity: 490 kg - Dimensions: 210 mm length, 37 mm width - Compatible with Maypole striker MP81402B |
