Description
Overview:

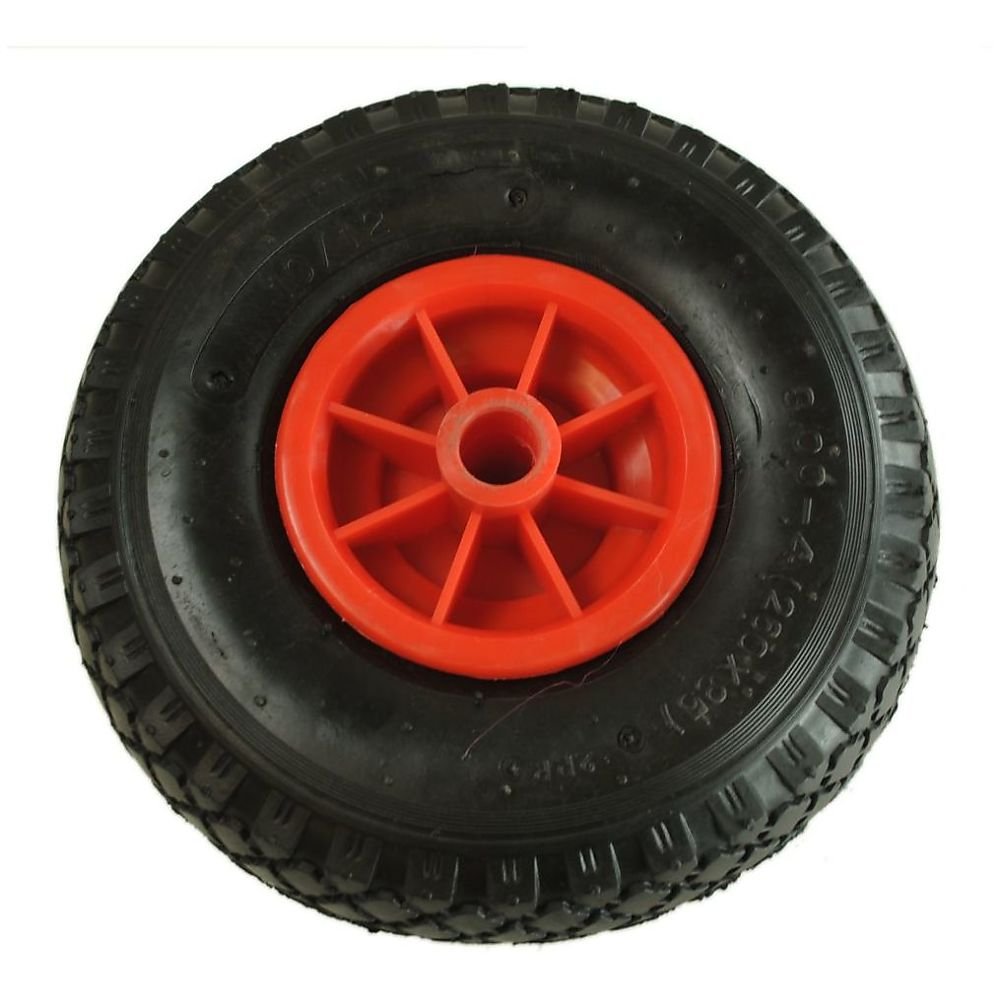

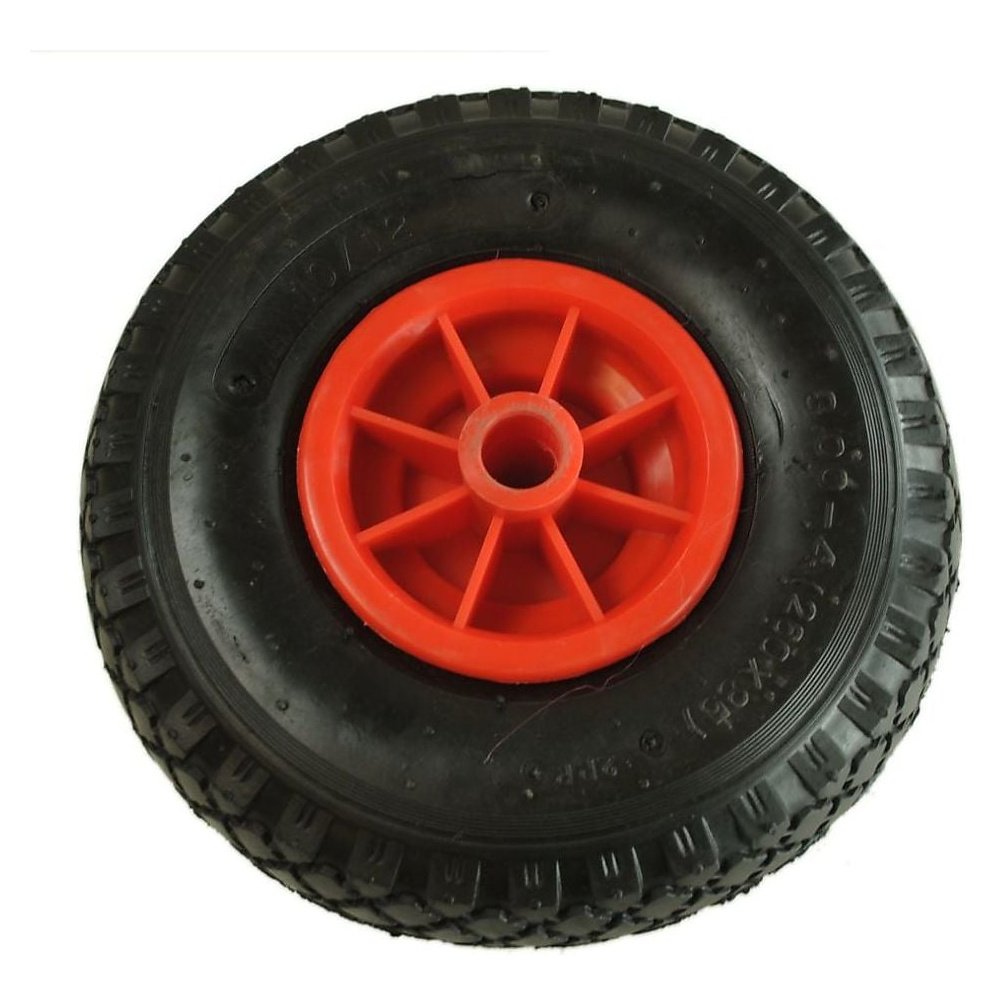

Jockey Wheel Spare 260 x 70mm Pneumatic, 20mm Bore, Plastic Rim - Maypole (MPN TR229) is a replacement wheel and tyre assembly for a jockey wheel or jockey leg. Supplied as a wheel only, with a pneumatic rubber tyre on a plastic rim. 260mm diameter (approx 10.24") and 70mm tread width (approx 2.76"). Fits the standard 20mm jockey wheel spindle; this wheel's bore is 20.5mm within the 20-21mm interchange range. Bore length is 83mm, and the wheel has a maximum static load of 136kg. Use as a like-for-like spare against the stated dimensions and spindle system. No tube, clamp, winding mechanism, spindle, bolt or fixings included.
Specification:
- Wheel diameter: 260mm
- Tread width: 70mm
- Tyre: Pneumatic rubber
- Rim: Plastic
- Bore diameter: 20.5mm (standard 20mm spindle system)
- Bore length: 83mm
- Maximum static load: 136kg
Fits These Jockey Wheels:
- 761 314 - 48mm Telescopic Jockey Wheel Pneumatic 100kg (MP437)
Also known as:
- Jockey wheel spare wheel; jockey leg wheel; nose wheel; trailer jack wheel; Maypole MP229
Product Specifications
| L&S Part No. | TR229 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP229 |
| Unit of Sale | 1 |
| Machine Type | Tractors, Trailers |
| Key Features | - 255 mm diameter for good ground clearance - 70 mm tyre width fits standard jockey forks - 20.5 mm bore, 83 mm hub length for compatibility - Supports up to 136 kg static load - Pneumatic tyre for shock absorption and grip |
