Description
Overview:

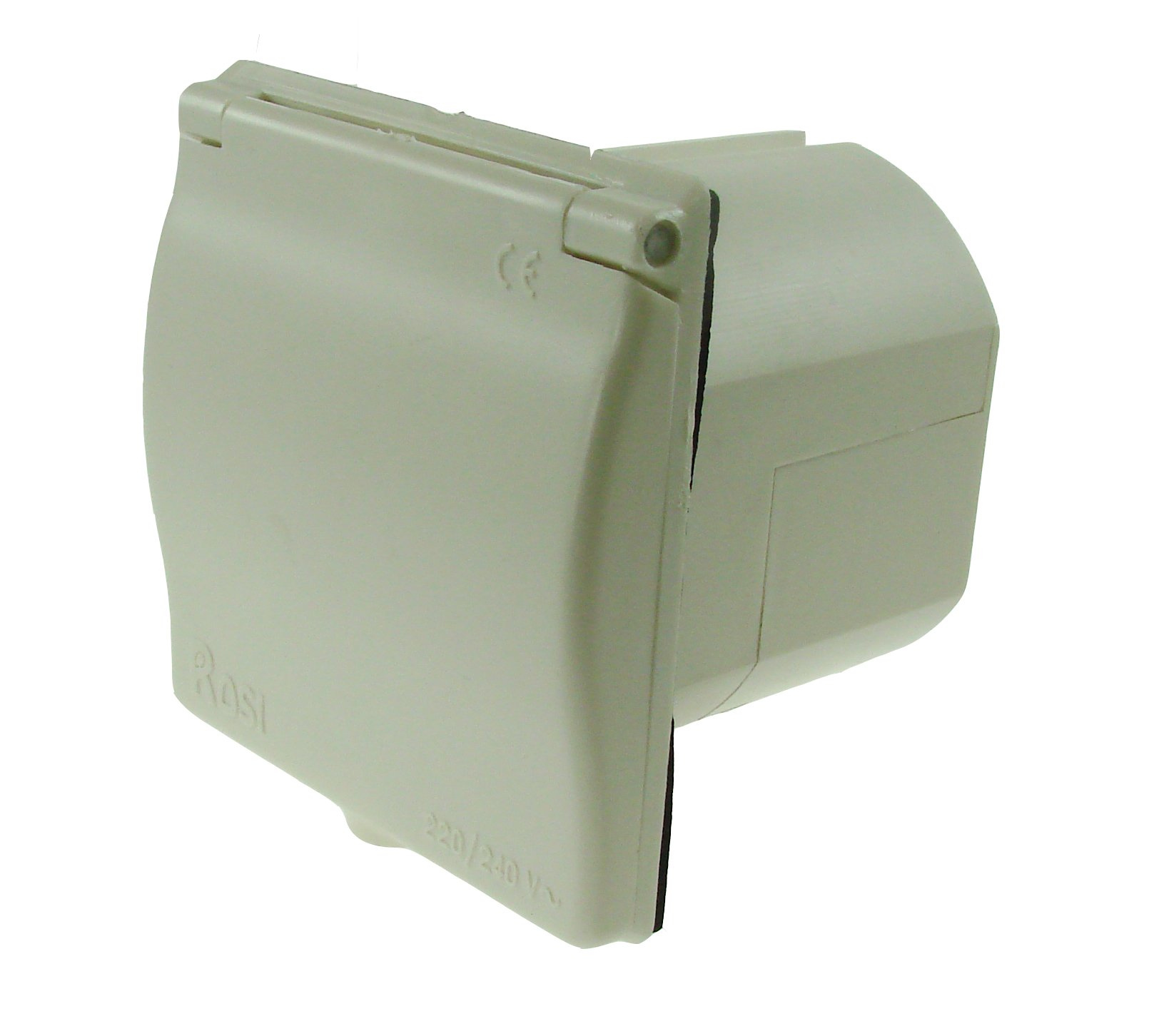

The Mains Inlet Socket (MPN 763 538) is a flush-mount 240V 16A connection point for bringing site power into caravans, camper vans and motorhomes. It installs into a panel cut-out and presents a protected socket to accept the standard blue 16A site lead. The housing is moulded from durable, UV-stable plastic and is supplied in white to suit typical caravan and motorhome bodywork. A hinged lid with locking peg protects the inlet from weather and accidental disconnection, and a release lever assists in unplugging the mating lead. The rounded base is designed to speed up installation with a hole cutter. Rated IP44 for splash protection and CE approved, this European-made inlet is supplied with a black foam seal for the mounting face to help achieve a neat, weather-resistant fit. Commonly used as a like-for-like replacement on many touring vehicles.
Key Features:
- 240V AC, 16A rating for caravan and motorhome hook-up circuits
- Flush-mount design with rounded base for faster hole-saw installation
- Hinged protective lid with locking peg to secure the site lead
- Accepts standard blue 16A 230/240V CEE site plug (female) used on caravan parks
- IP44 splash-proof enclosure for outdoor use
- CE approved and made in Europe
- Durable, UV-stable plastic body for long service life
- Supplied in white to match common leisure vehicle finishes
- Includes black foam sealing gasket for the mounting face
- Integrated release lever to aid removal of the female site connector
- Standard fit pattern used across many caravans and motorhomes
Typical Applications:
External shore-power inlet on caravans, camper vans and motorhomes for connecting a site mains hook-up lead. Suitable for replacement of worn or damaged inlets and for upgrades where a flush-fitting, splash-proof 16A inlet is required. Accepts the typical caravan site mains lead with a blue CEE 16A female connector.
Also known as:
Caravan Mains Hook-Up Inlet, CEE 16A Flush Inlet Socket, Flush Fitting 16A Site Inlet, 240V Caravan Electric Inlet, Motorhome Mains Inlet, Maypole part number MP598B
Product Specifications
| L&S Part No. | 763 538 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
