Description

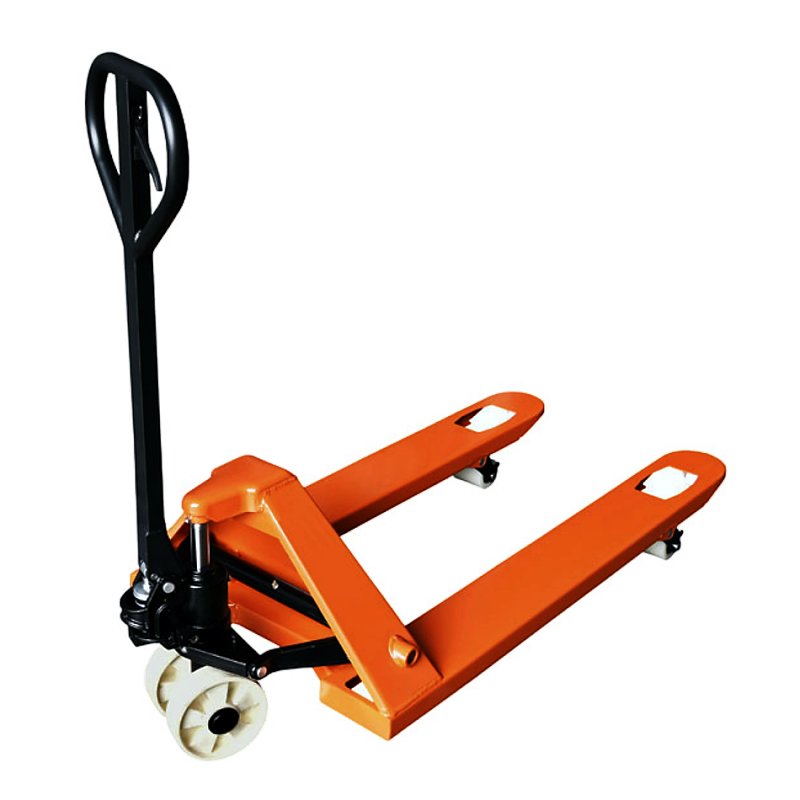

3000kg Capacity Double Wheel Pallet Truck
Ideal for warehouse, supermarkets, distribution centres, factories, stockrooms, storage facilities and loading docks. Engineered to provide years of trouble-free service even under toughest working conditions
Features:- 200 degree turning radius allows room to manoeuvre in tight spaces
- Articulating 7" poly-over-aluminium steer wheels ensure continual contact with uneven floors
- One-piece cast pump features high quality seals, hardened and chrome plated ram and piston, top-of-stroke and overload safety bypass valves
- Pump also features smooth, special lowering valve for controlled descent
- Single point valve replacement for quick and easy rebuild
- Solid steel push rods never need adjustment
- Wheel bearings are double sealed and lifetime lubricated
- Distance from plate to the hole centre: 160mm
- Distance from the plate to the end of the pin: 175mm
- Min Fork Height: 75mm
- Width Over Forks: 550mm
- Fork Length: 1150mm
- Fork Width: 160mm
- Fork Thickness: 3.75mm
- Max Fork Lifting Height: 190mm
- Conforms to BS EN 16307-5 and ISO 3691-7
Product Specifications
L&S Part No. | 200 622 |
---|---|
Unit of Sale | 1 |
