Description
Overview:

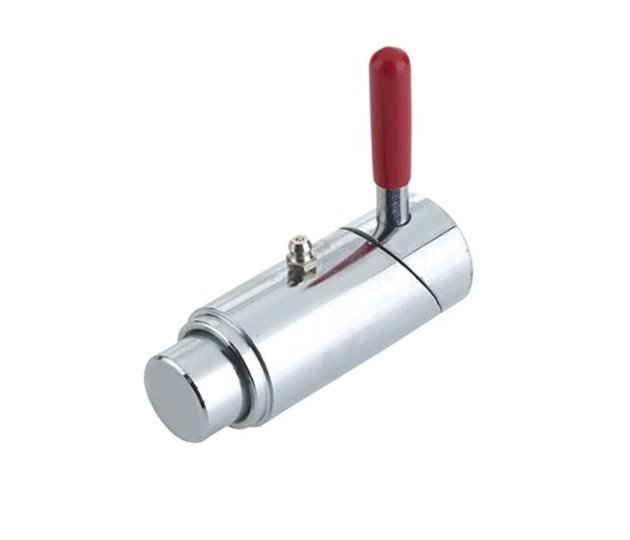

Rotalock Shoot Bolt, Medium Duty, Ø19mm Pin, 12.5mm Stroke, Weld-On (MPN 800 1078) is a weld-on shoot bolt used to secure doors, lids and panels on commercial and agricultural equipment. Manufactured from mild steel with a zinc plated, clear passivated finish, it offers a durable, low-maintenance latch point where a positive mechanical bolt is required. The unit features a Ø19 mm (3/4") pin with a 12.5 mm (1/2") stroke, allowing reliable engagement into a keeper or bracket. Overall length is 65 mm (2-9/16") with a body diameter of Ø30 mm (1-3/16"). An integral grease nipple supports regular lubrication for smooth operation in harsh environments. Suitable for bodybuilders and maintenance teams working on vans, trailers, gates, machinery and site equipment where a compact, medium duty weld-on bolt is appropriate.
Key Features:
- Mild steel construction for strength and weld-on compatibility
- Zinc plated, clear passivated finish for corrosion resistance
- Medium duty configuration for general commercial and agricultural use
- Weld-on type for permanent mounting to frames and brackets
- Pin diameter: Ø19 mm (3/4")
- Stroke: 12.5 mm (1/2")
- Body diameter: Ø30 mm (1-3/16")
- Overall length: 65 mm (2-9/16")
- Integrated grease nipple for easy lubrication and smooth action
- Suited to securing doors, hatches and panels where a positive bolt is needed
Typical Applications:
Used on commercial vehicles and plant to secure side doors, rear doors and access panels. Common on trailers and van doors, site gates and machinery guards, as well as skips, balers and agricultural equipment where a compact, weld-on bolt provides a reliable mechanical latch.
Also known as:
Spring bolt, spring-loaded bolt, weld-on door bolt, barrel bolt, plunger bolt, locking pin
Product Specifications
| L&S Part No. | 800 1078 |
|---|---|
| Unit of Sale | 1 |
