Description
Overview:

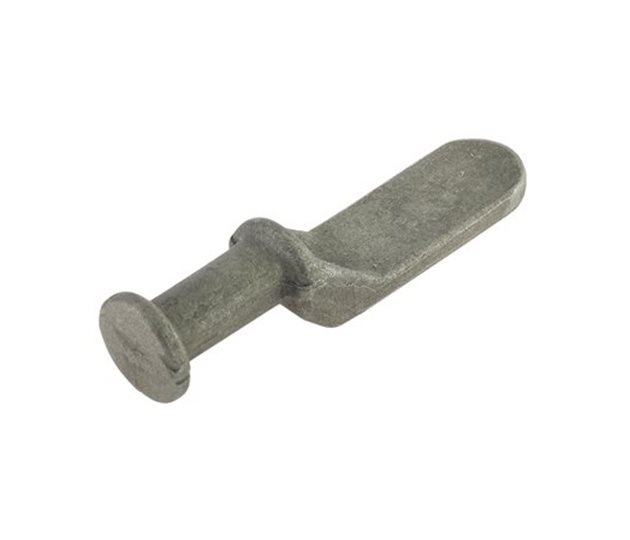

This flat tailboard lug (MPN 800 1237) is a forged steel weld-on fitting used to hinge tailboards and dropside panels on commercial vehicle and trailer bodies. Supplied in self colour for fabrication, it provides a robust mounting point for a matching tailboard forket on tippers, trucks and agricultural or plant trailers. The lug features a Ø20 mm (0.79 in) shaft length of 38 mm (1.50 in) to interface with the mating fork, supported by a flat base for welding to the body or tailboard edge. Overall length is 140 mm (5.51 in), with a base footprint of 93 mm x 31.5 mm (3.66 in x 1.24 in) to spread loads into the parent structure. Commonly used on dropside bodies and tailgates where a compact, durable hinge lug is required, it suits new builds and repairs across transport and plant sectors.
Key Features:
- Material: Forged steel for strength and durability
- Finish: Self colour, suitable for welding and subsequent finishing
- Fitting type: Weld-on flat base for straightforward fabrication
- Shaft size: Ø20 mm x 38 mm (0.79 in x 1.50 in) for use with tailboard forkets
- Overall length: 140 mm (5.51 in)
- Base dimensions: 93 mm x 31.5 mm (3.66 in x 1.24 in)
- Compatible with tailboard and dropside hinge arrangements
- Suitable for commercial bodies and trailers requiring compact hinge lugs
Typical Applications:
Used to create or replace hinge points on tailboards and dropsides for tippers, rigid trucks, general haulage trailers, plant and equipment trailers, balers and skips, and horseboxes. Typically paired with a tailboard forket on body sides to form a durable hinge assembly on dropside and tailgate arrangements.
Also known as:
Tailboard hinge lug; Tailgate lug; Weld-on hinge lug; Dropside hinge lug; Pin lug
Product Specifications
| L&S Part No. | 800 1237 |
|---|---|
| Unit of Sale | 1 |
