Overview:

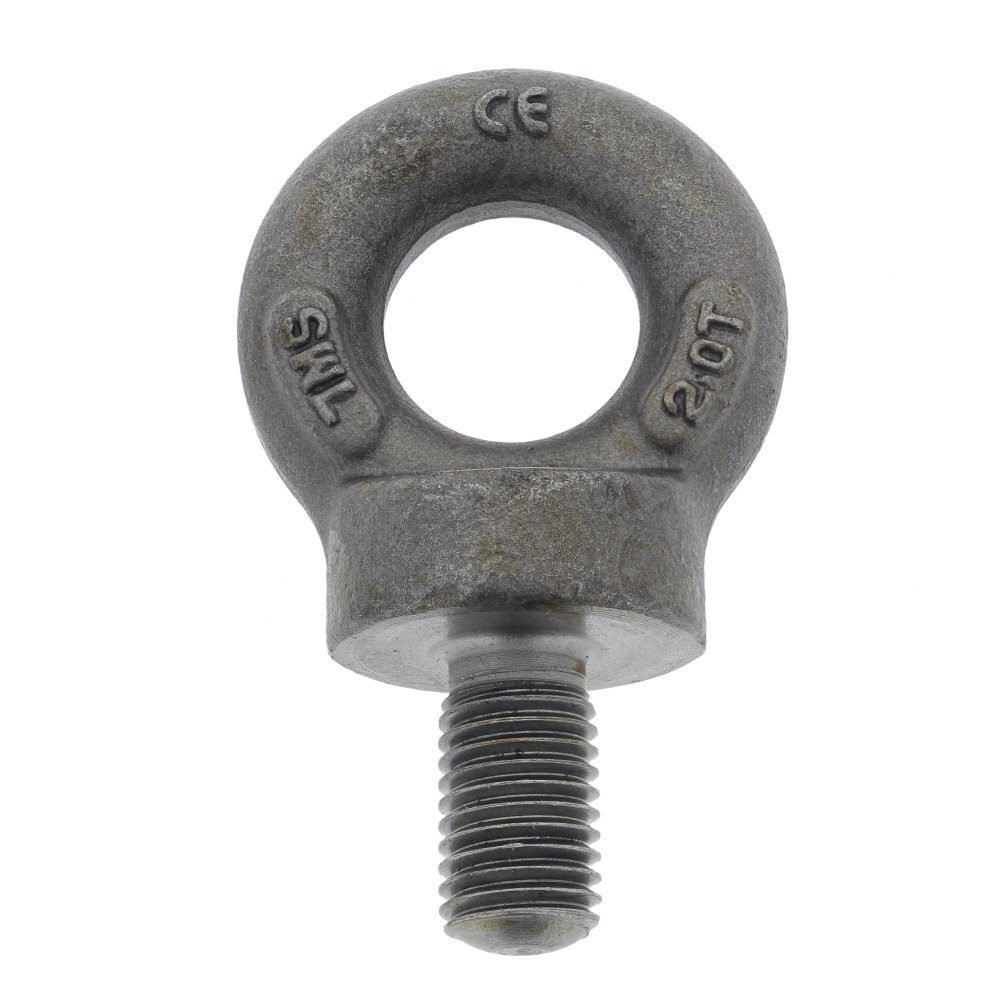

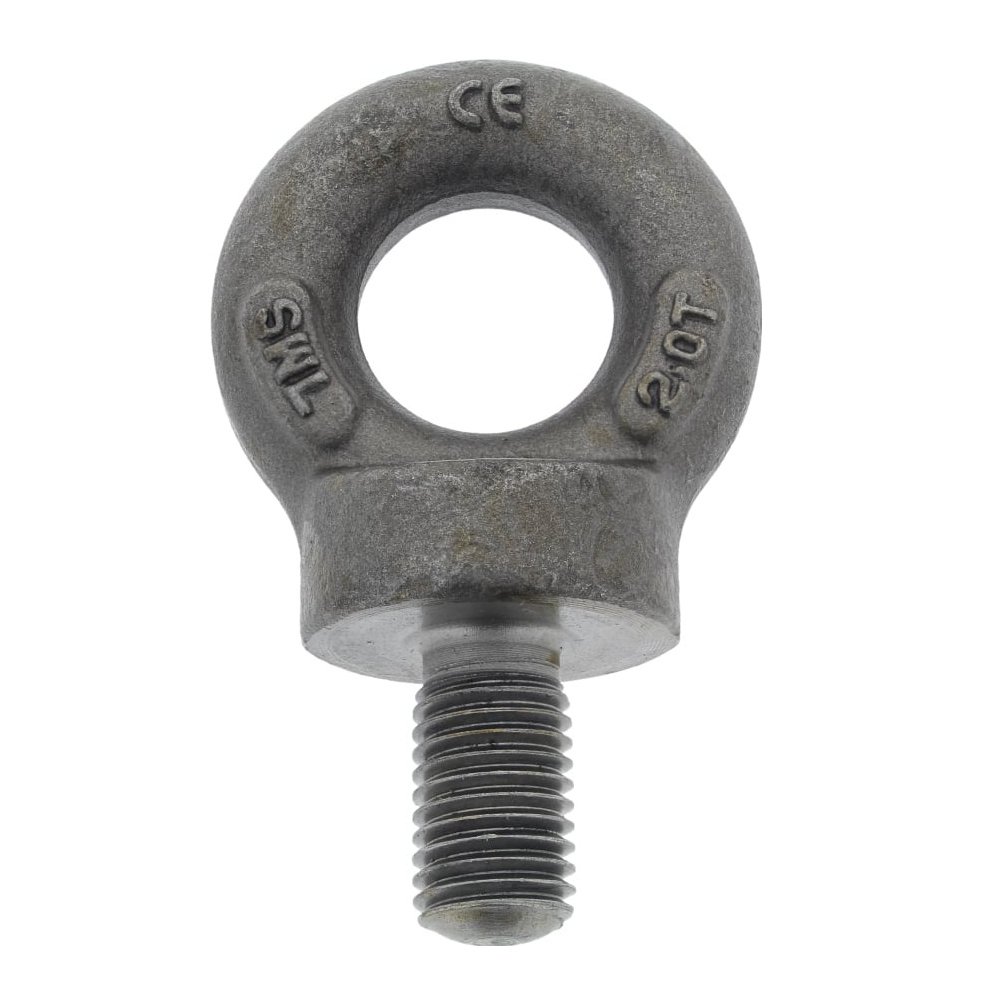

The 3/8" Drop Forged Collared Eyebolt is a high-tensile steel lifting fastener for secure attachment points on plant, machinery, lifting beams and fixtures. It features a 3/8" Whitworth (BSW) thread (approx. 9.53 mm) and a forged collared shoulder for reliable seating under load. Manufactured to BS529/1, it provides a vertical Safe Working Load (S.W.L.)/Working Load Limit (W.L.L.) of 0.25 tons (approx. 254 kg) when installed correctly. A self-colour finish offers a clean, oiled steel surface ready for service or further coating. Typical dimensions include an eye diameter of 9/32" (approx. 7.14 mm), a pin/shank length of 1 1/32" (approx. 26.19 mm), and a pin/shank diameter of 3/8" (approx. 9.53 mm). Supplied as a robust general-purpose lifting eye for workshop, site and maintenance tasks. MPN: 200 657.
Key Features:
- Drop forged from high tensile steel for strength and durability
- Collared (shoulder) design improves seating and load distribution
- 3/8" Whitworth (BSW) thread (approx. 9.53 mm) for broad compatibility
- Vertical W.L.L./S.W.L. 0.25 tons (approx. 254 kg) when properly installed
- Made to BS529/1 for consistent quality and performance
- Self-colour finish suitable for oiling or over-coating as required
- Precision-cut thread for a secure fit and easy assembly
- Compact eye diameter 9/32" (approx. 7.14 mm) aids tidy rigging layouts
- Shank length 1 1/32" (approx. 26.19 mm) for practical installation depth
- Ideal as a permanent or temporary lifting point on tools and machinery
Typical Applications:
Lifting and rigging on construction and agricultural equipment, attaching chain slings or wire ropes, suspending hoists and pulley blocks, securing loads for handling, and creating rated attachment points on frames, engines, pumps, compressors, jigs and fixtures in workshops or on site where a compact 3/8" BSW lifting eye is required.
Also known as:
Shoulder eyebolt, collared lifting eye, BSW eye bolt, ring bolt, lifting ring, lifting point bolt, threaded lifting eye, shoulder eye bolt, screw-in lifting eye, collared eye fastener.
Product Specifications
| L&S Part No. | 200 657 |
|---|---|
| Unit of Sale | 1 |
