Description
Overview:

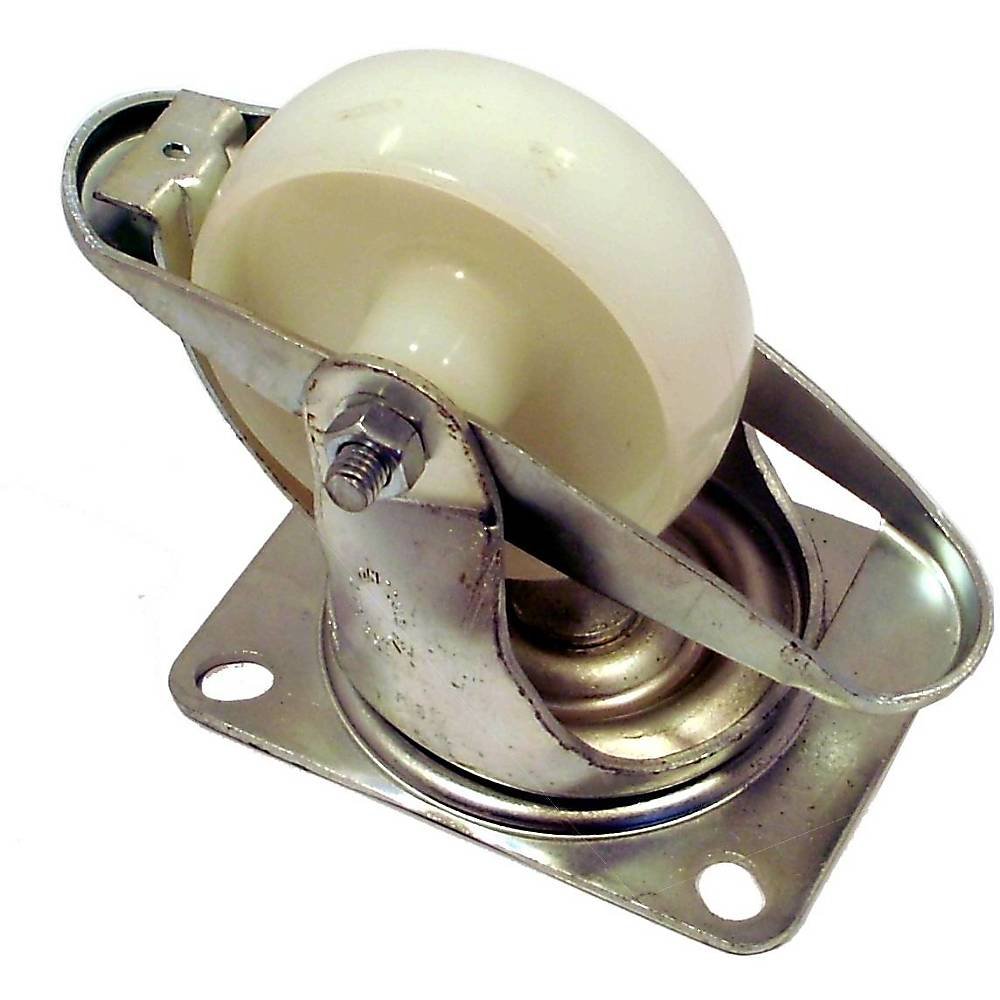

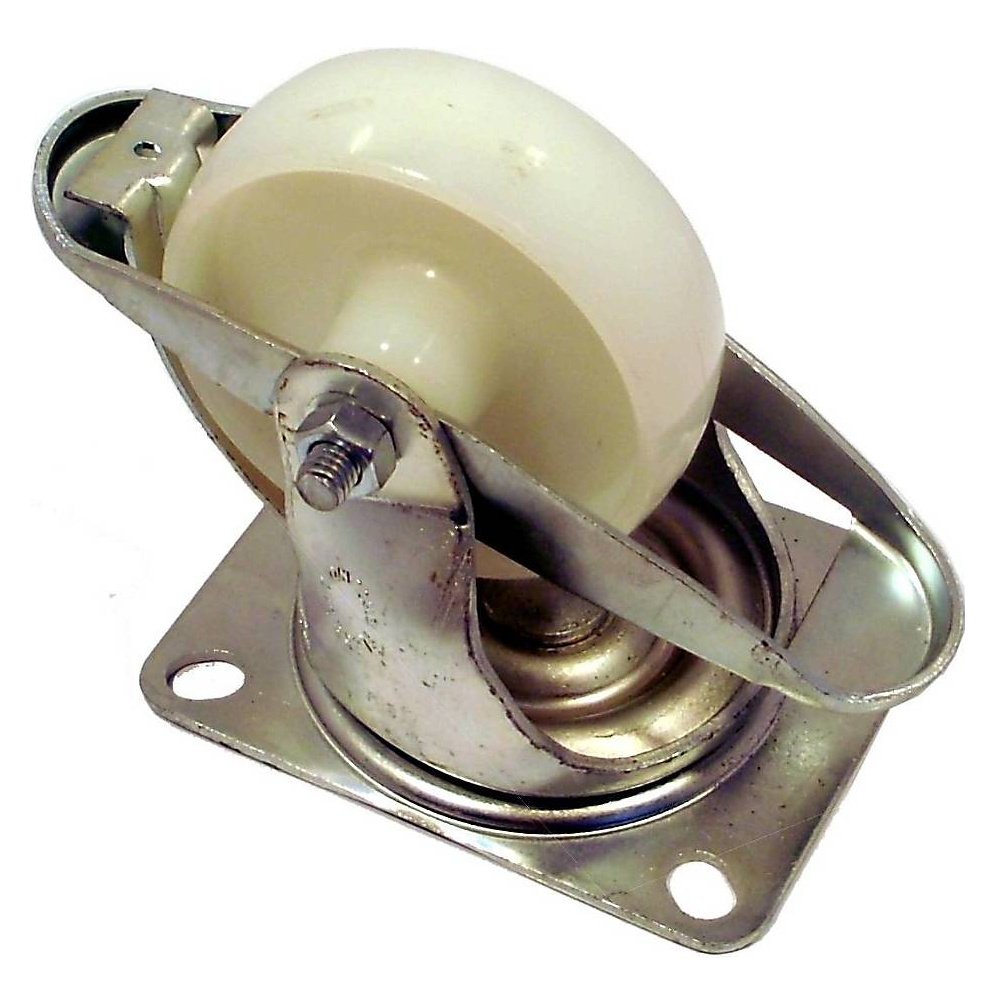

This 3 inch (76 mm) braked nylon swivel castor is a durable, plate-mounted wheel for adding mobility to heavy equipment, trolleys, benches, and machinery bases. The hard-wearing nylon wheel provides low rolling resistance and good stability on smooth factory and workshop floors. A swivel head allows easy steering, while the foot-operated brake holds the wheel when you need the unit to stay put. The robust steel bracket uses a rectangular top plate sized 130 x 102 mm for secure mounting. With a total height of 94 mm and a maximum load capacity of 120 kg per castor, it suits many industrial and workshop applications where reliable movement and positive parking are required. Mounting holes suit M8 fixings with hole centres at 80 x 60 mm.
Key Features:
- Wheel diameter: 3 in (76 mm) for compact manoeuvrability
- Total height: 94 mm to help check clearance under frames and bases
- Top plate: 130 x 102 mm with 80 x 60 mm hole centres for stable mounting
- Suits M8 fixings for ease of installation and replacement
- Braked swivel design: easy to steer, then lock for secure positioning
- Nylon wheel: hard-wearing, non-marking on smooth floors, low rolling resistance
- Strong steel bracket for dependable support in workshop and industrial use
- Load capacity: 120 kg per castor (typical practice is to calculate equipment support using three castors for safety on uneven floors)
- Plate-mounted form factor makes it a straightforward replacement on many trolleys, benches, and dollies
- Simple, low-maintenance construction with few wear points
Typical Applications:
Ideal for workshop trolleys, mobile workbenches, machine bases, dollies, service carts, mobile racking, and equipment stands. Suitable for moving tools and machinery across smooth concrete or sealed floors in factories, warehouses, maintenance areas, and garages where dependable mobility and secure parking are required.
Also known as:
Lockable castor, braked swivel castor, top plate castor, plate-mounted braked wheel, industrial castor, trolley wheel, furniture castor, 3-inch castor, 76 mm castor, caster wheel (US spelling).
Product Specifications
| L&S Part No. | 892 575 |
|---|---|
| OEM No. | 361NYBR |
| Unit of Sale | 1 |
| Color | White |
