Description
Overview:

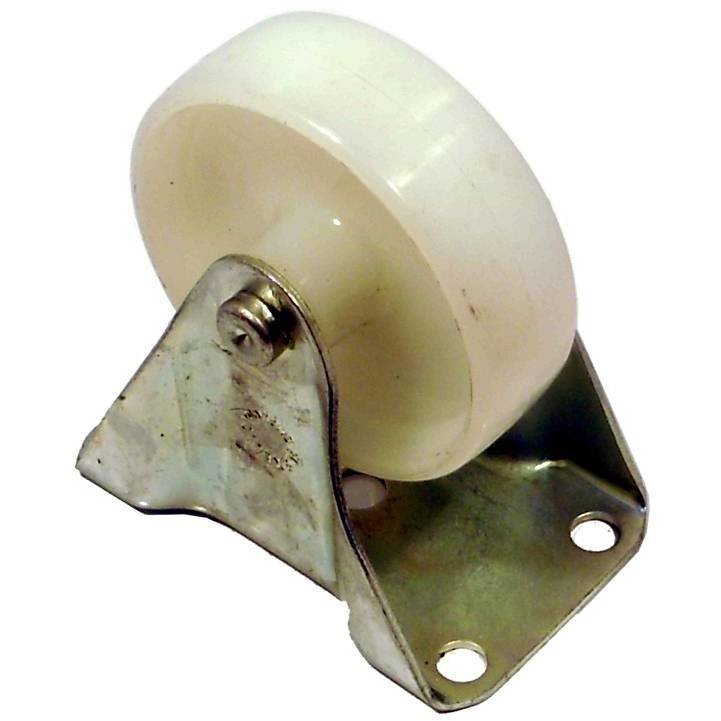

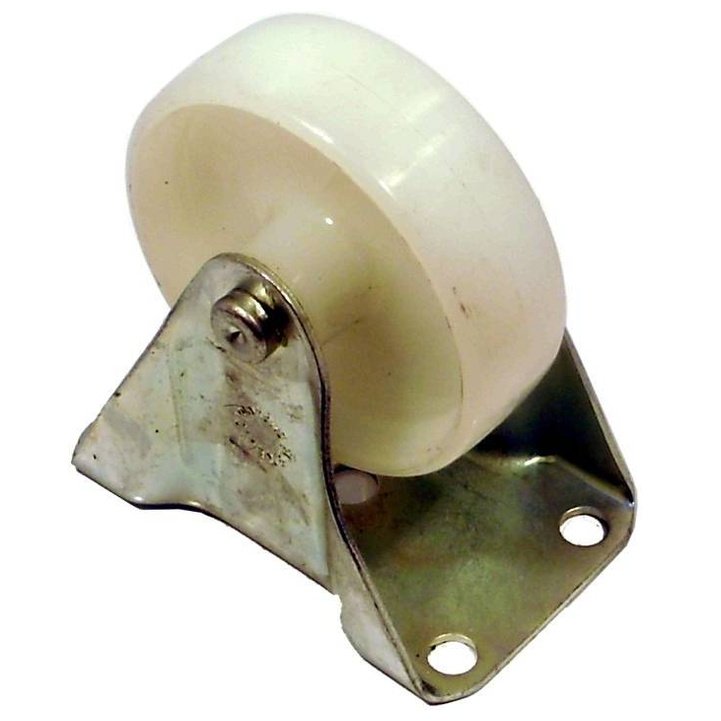

The 75mm Fixed Nylon Wheel Castor is a robust, straight-line castor built for moving equipment safely and smoothly in workshops, warehouses, and industrial settings. It pairs a hard-wearing nylon wheel with a durable steel fixed bracket, typically zinc-plated for corrosion resistance. The top plate measures 123mm x 57mm with 100mm x 30mm hole centres to suit common trolley and cart frames, and the mounting holes suit M8 fixings. With a fitted height of 93mm and a tread width of 32mm, it offers a stable footprint while keeping overall equipment height low. Rated at 170kg per castor, it is suitable for heavy-duty service on smooth floors. Wheel diameter is 75mm (3 in ≈ 76.2mm). Manufacturer Part Number (MPN): 893 075.
Key Features:
- Fixed top-plate design for positive straight-line tracking on trolleys and carts
- Hard nylon wheel for low rolling resistance and long service life on smooth floors
- Wheel diameter: 75mm (3 in ≈ 76.2mm)
- Tread width: 32mm for stability under load
- Fitted height: 93mm to minimise overall equipment height
- Load capacity: 170kg per castor (suitable for heavy-duty tasks when used in sets)
- Plate size: 123mm x 57mm for a broad, secure mount
- Fixing hole centres: 100mm x 30mm for straightforward replacement on many frames
- Mounting holes suit M8 fixings for easy installation
- Durable steel bracket, typically zinc-plated for corrosion resistance in workshop use
- Smooth, stable rolling on concrete, resin, and other hard, even surfaces
- Clean, simple construction for low maintenance and reliable daily use
Typical Applications:
Ideal for workshop trolleys, service carts, platform trucks, tool cabinets, flight cases, and machinery stands. Use alongside matching swivel castors at the opposite end for easy manoeuvring, or four fixed units for straight runs. Suited to production lines, picking stations, warehouses, retail back-of-house, and general facilities maintenance where dependable load handling and low-effort rolling are important.
Also known as:
Rigid castor, rigid wheel, top-plate castor, straight-line castor, nylon trolley wheel, equipment wheel, transport wheel, dolly wheel, fixed bracket castor, industrial plate wheel.
Product Specifications
| L&S Part No. | 893 075 |
|---|---|
| Unit of Sale | 1 |
| Color | White |
