Description
Overview:

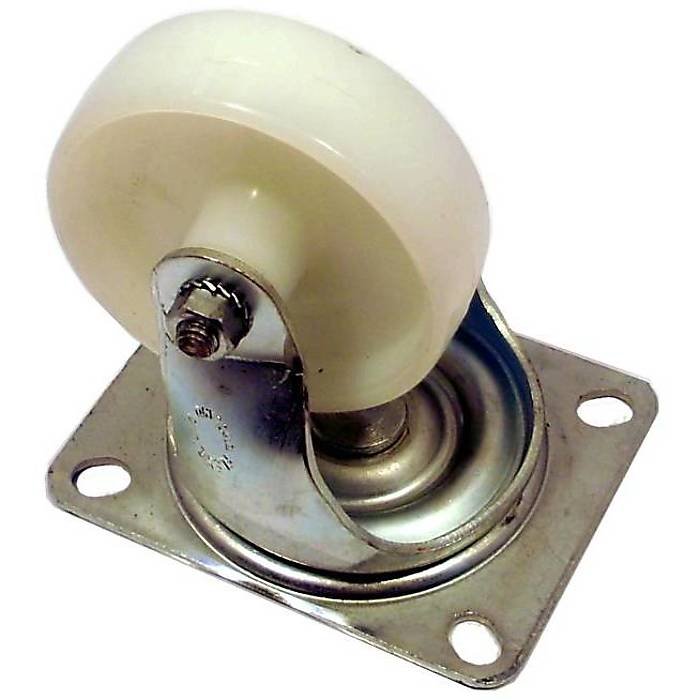

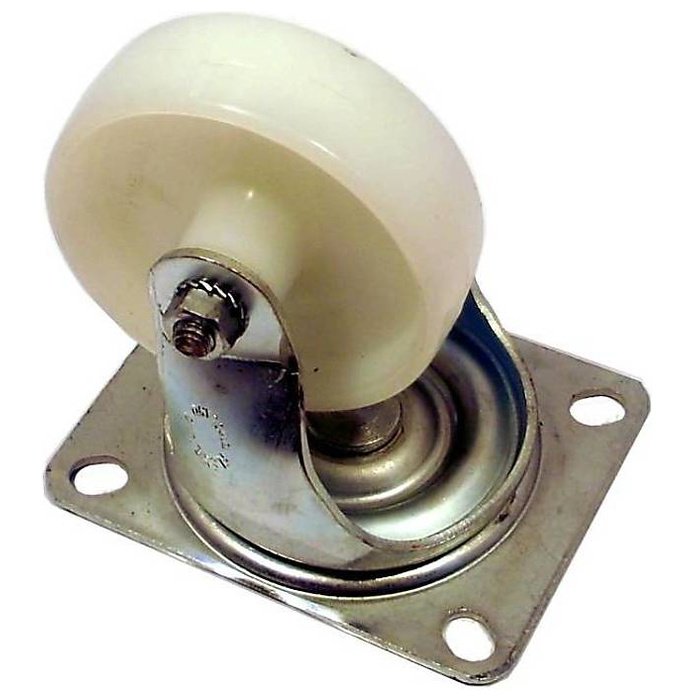

This 75 mm nylon wheel castor is a swivel, top-plate type for smooth, reliable movement of workshop furniture, service trolleys, benches and light industrial machines. The hard nylon wheel gives low rolling resistance on clean, level floors, while the pressed steel, zinc-plated bracket provides strength and corrosion resistance. With a fitted height of 93 mm and a swivel offset of 32 mm, it balances stability with easy manoeuvrability in tight spaces. The top plate measures 105 x 79 mm and mounts via standard hole centres, making it straightforward to retrofit or replace worn units on many tools and mobile equipment. Manufacturer part number: 892 075. Wheel diameter is 75 mm (nominal) and commonly referred to as 3 in (≈ 76.2 mm); tread width is 32 mm.
Key Features:
- 75 mm wheel diameter (commonly called 3 in ≈ 76.2 mm) for compact mobility
- Load capacity up to 170 kg per castor on smooth, level surfaces
- Fitted height: 93 mm for a low overall stack on benches and trolleys
- Swivel offset: 32 mm for tight turning and responsive steering
- Tread width: 32 mm for stability under load
- Top plate: 105 x 79 mm with approx. 80 x 60 mm hole centres for easy replacement
- Mounting hole size: 8 mm (suits M8 fixings)
- Hard nylon wheel for low rolling resistance and wear resistance
- Zinc-plated pressed steel fork and plate for durability and rust protection
- Smooth swivel action for precise positioning under load
- Straightforward to fit with standard spanners and M8 bolts
- MPN 892 075 for identification and reordering
Typical Applications:
Ideal for mobile workbenches, tool cabinets, machine bases, service carts, mobile racking, equipment cases, and light plant stands in workshops, warehouses, garages and site setups. Suitable where a compact, hard-wheel castor is needed to move loads efficiently across concrete, resin, or sealed floors.
Also known as:
Swivel castor, plate-mounted castor, top-plate castor, 3-inch castor wheel, trolley castor, industrial equipment wheel, utility cart wheel, swivel plate wheel, equipment roller, furniture castor.
Product Specifications
| L&S Part No. | 892 075 |
|---|---|
| Unit of Sale | 1 |
| Color | White |
